Survey of Electrical Limit Switch Signals

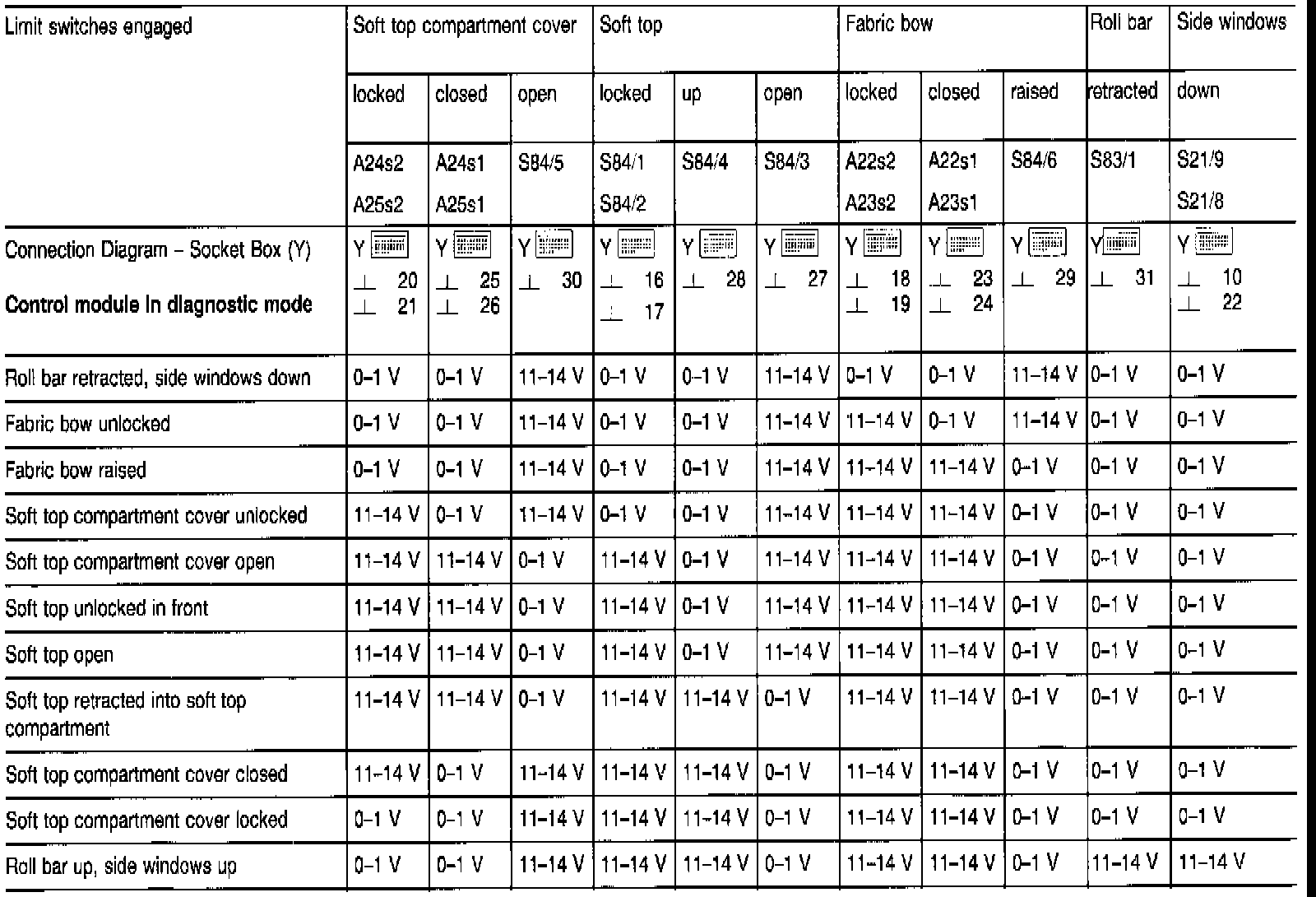

Operational Sequence: Opening Soft Top

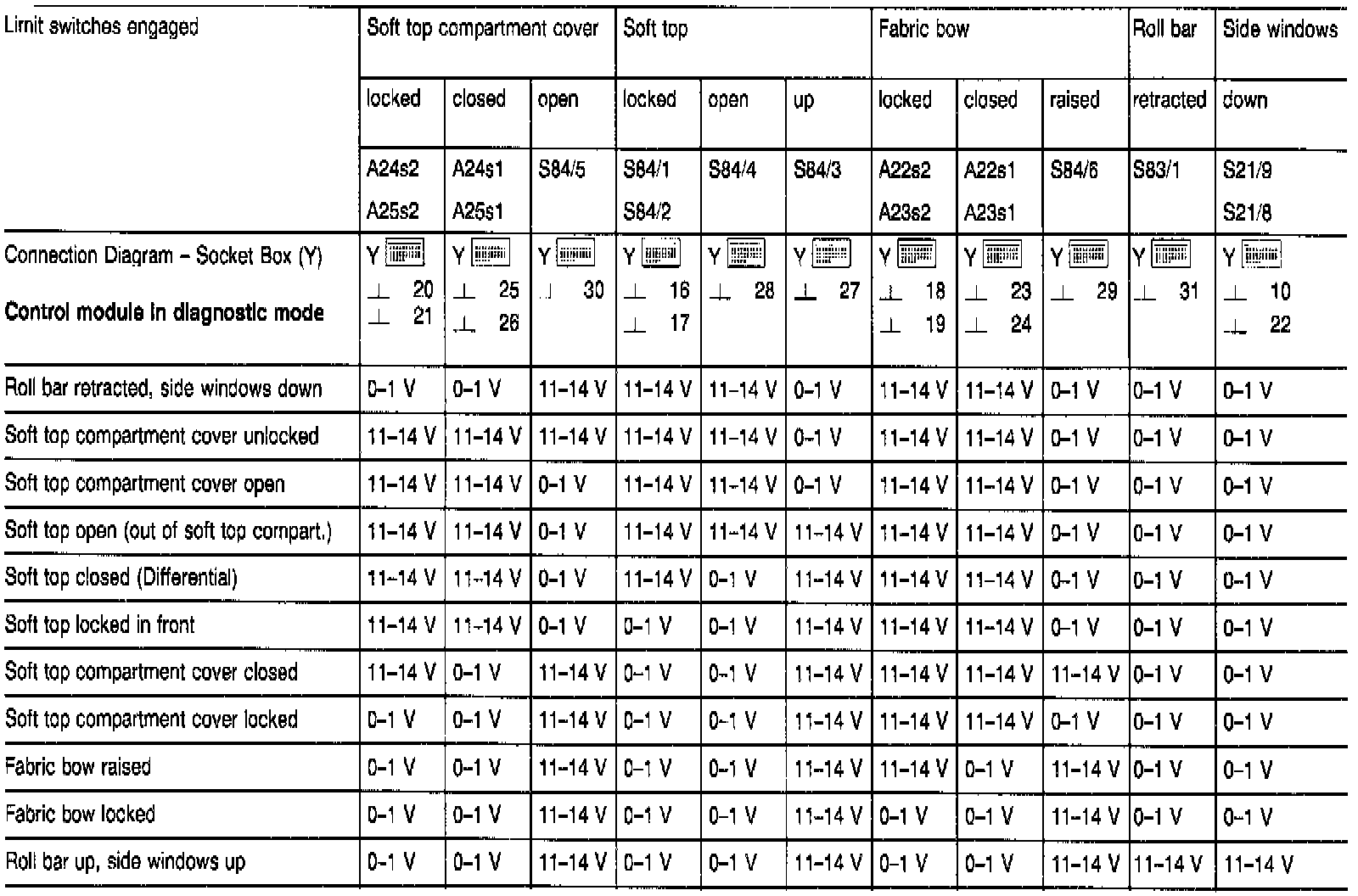

Operational Sequence: Closing Soft Top

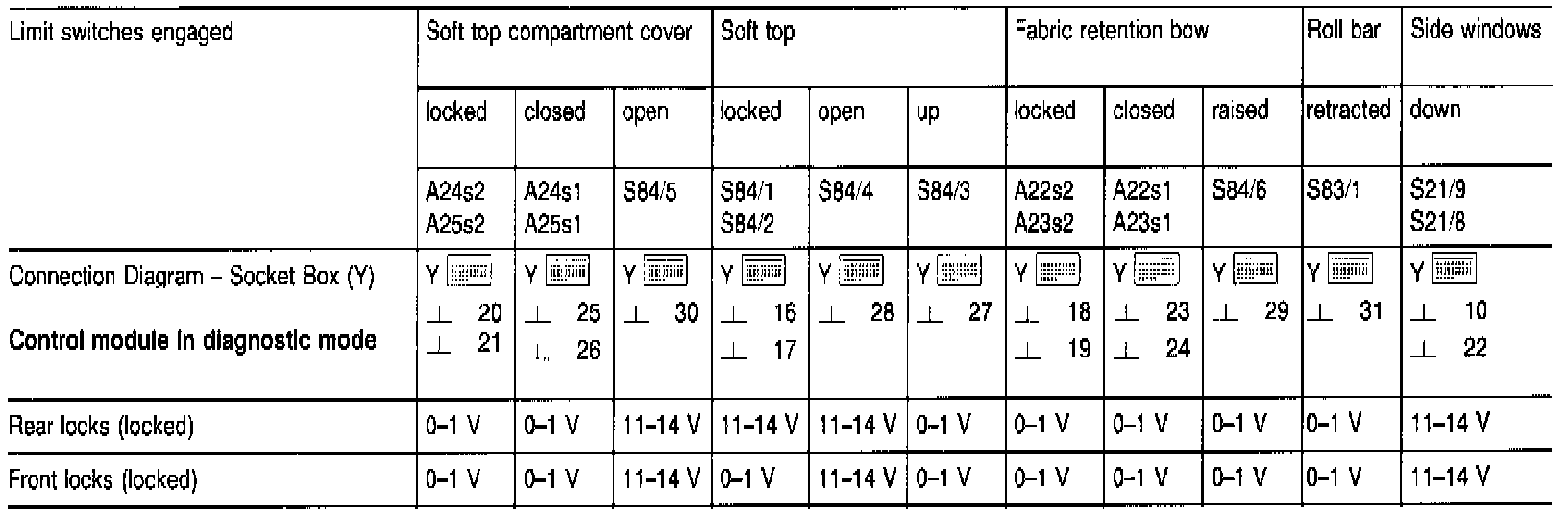

Operational Sequence: Hardtop Locking

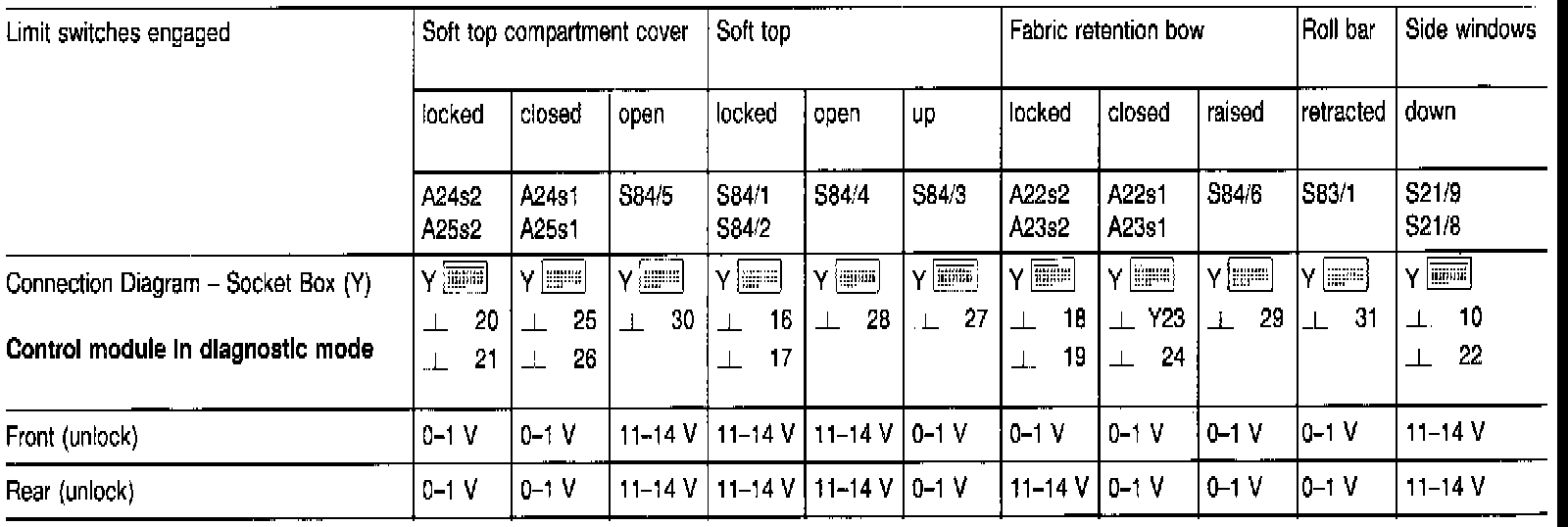

Operational Sequence: Hardtop Unlocking
