Preparation For Test

Preliminary work:
- "DTC Descriptions"
- Fuses OK.
- Battery voltage 11-14 Volts (always connect battery charger when working on the soft top).
- RB control module must release soft top for operation (indicator lamp in RB switch should not blink).
If soft top does not release, see DTC 23, refer to "DTC Descriptions"
- In DTC memory, no DTC's (i.e.:19, 21, 24 - 30) which could prevent soft top operation can be stored, these must be cleared from memory. If a stored DTC cannot be cleared from memory, repair defect.
- Review entire section before performing test.


NOTE:
Connect yellow wire from impulse counter scan tool to
Socket 10 Model 129.06 (X11/4, 16-pole)
Socket 21 Model 129.07 (X11/4, 38-pole)

! CAUTION!
Note regarding limit switch testing:
1. Ignition: OFF
2. Bridge sockets 1 and 3 of connector (X11/12) in passenger footwell (refer to "Component Connections", Figure 1).
3. Ignition: ON
4. Remove bridge.

! CAUTION!
The test in the next section (ETP) calls for the connection of the socket box to the power soft top control module in 3 different ways. Connections are distinguished as connections made to the power soft top control module connector X, Y or Z. These are indicated in the test as follows:



Note regarding connecting socket box to soft top control
module:
Ignition: OFF
Disconnect connector (X, Y, Z) from control module.
Connect socket box.

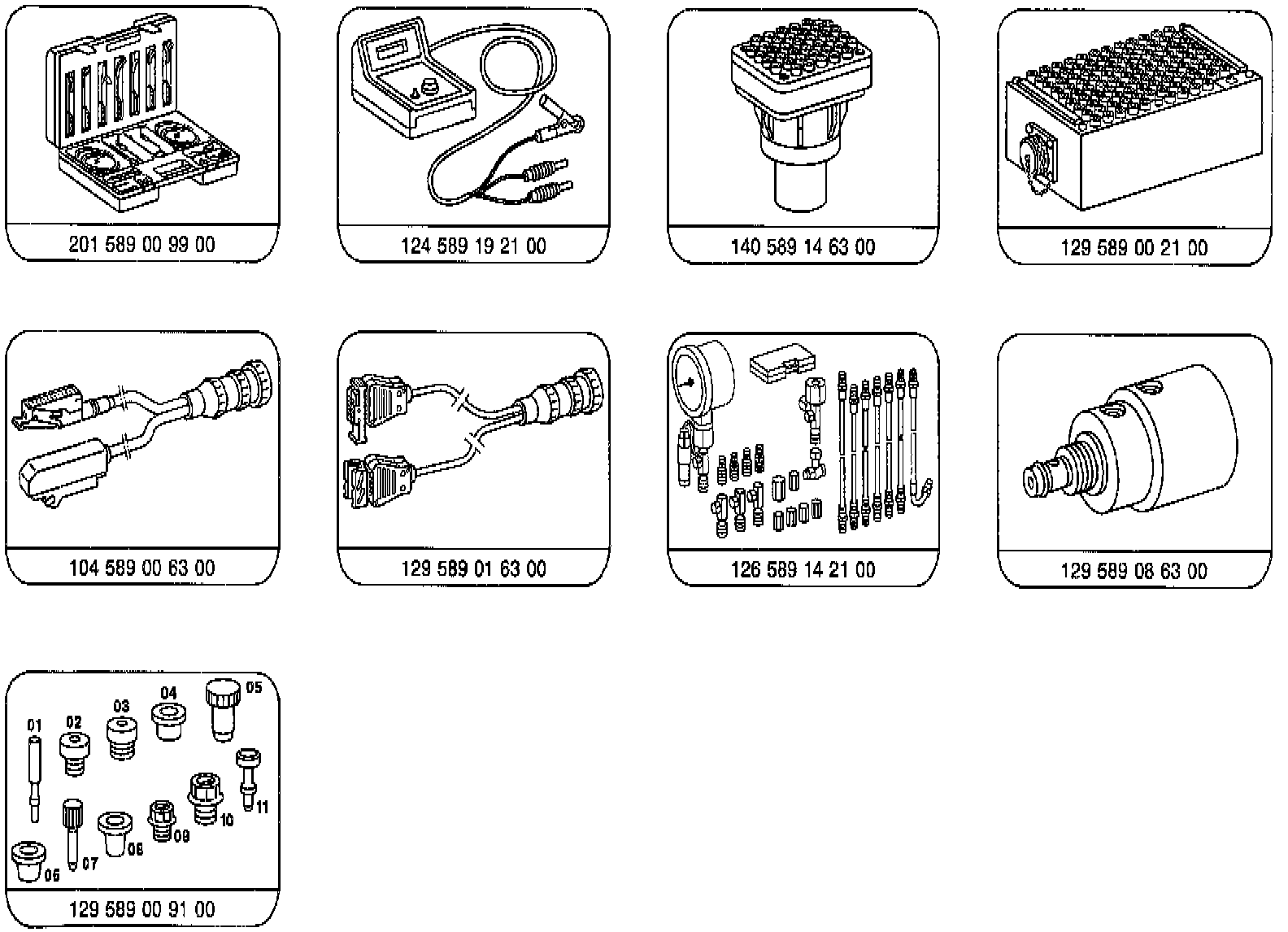

Special Tools




Test equipment
Description Brand, model, etc.
Digital multimeter Fluke models 23, 77 III, 83, 85, 87
Battery charger Local purchase

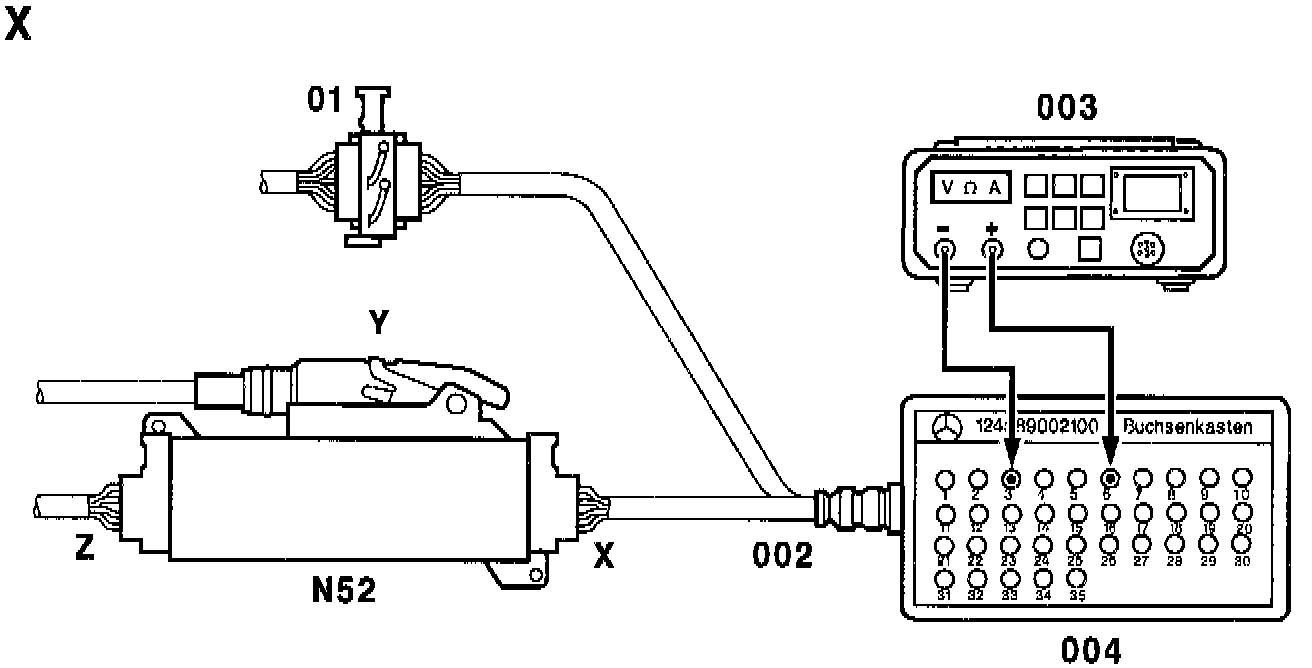

Connection Diagram - Socket Box with Connector X



01 Connector, 12-pole (vehicle wiring harness)
002 Test cable, 12-pole 129 589 01 63 00
003 Multimeter
004 Socket box
N52 Power soft top control module

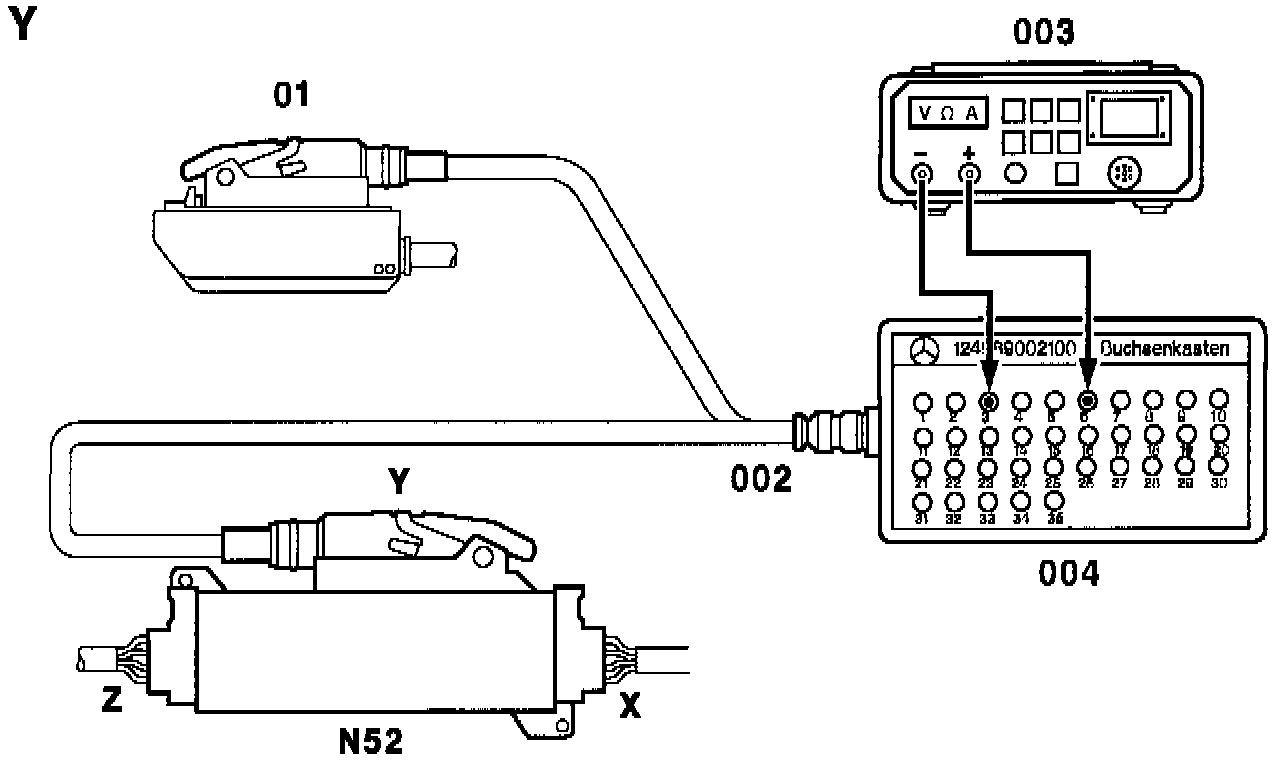

Connection Diagram - Socket Box with Connector Y



01 Connector, 35-pole (vehicle wiring harness)
002 Test cable, 35-pole 129 589 00 63 00
003 Multimeter
004 Socket box
N52 Power soft top control module

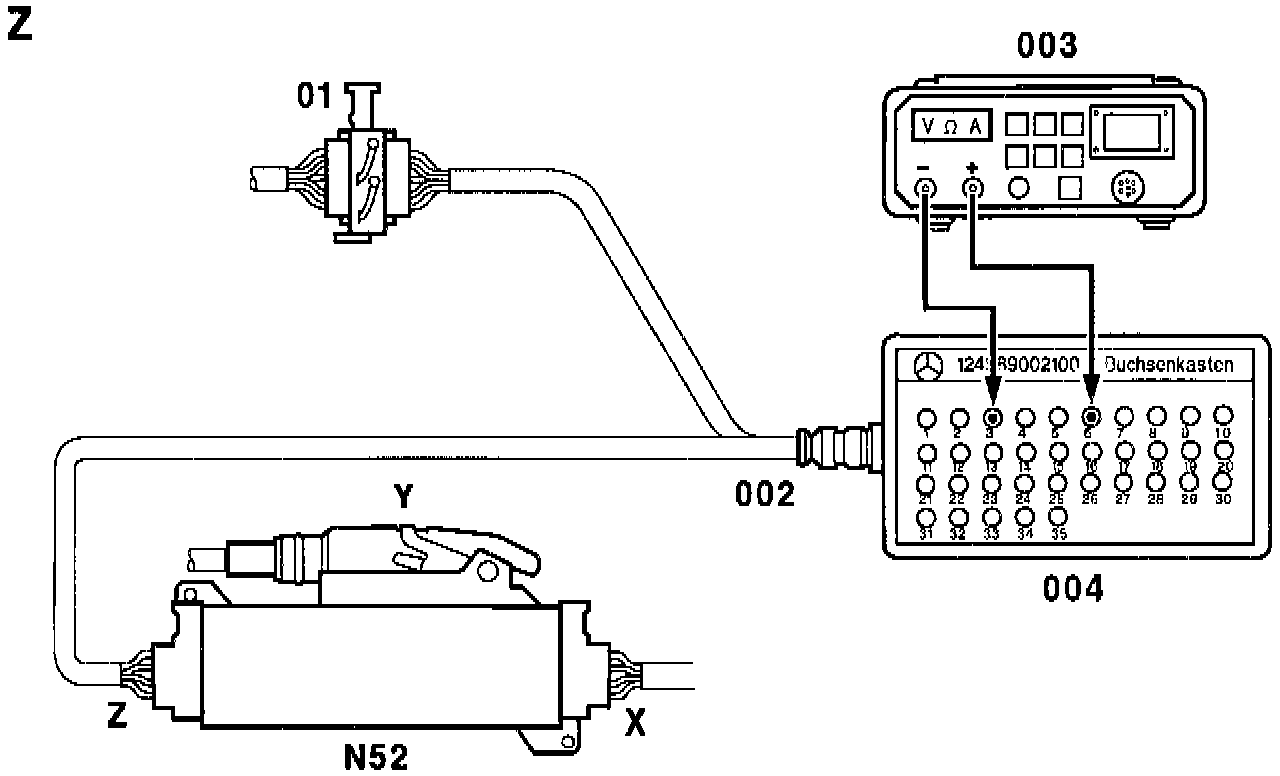

Connection Diagram - Socket Box with Connector Z



01 Connector, 12-pole (vehicle wiring harness)
002 Test cable, 12-pole 129 589 00 63 00
003 Multimeter
004 Socket box
N52 Power soft top control module
