Component Locations

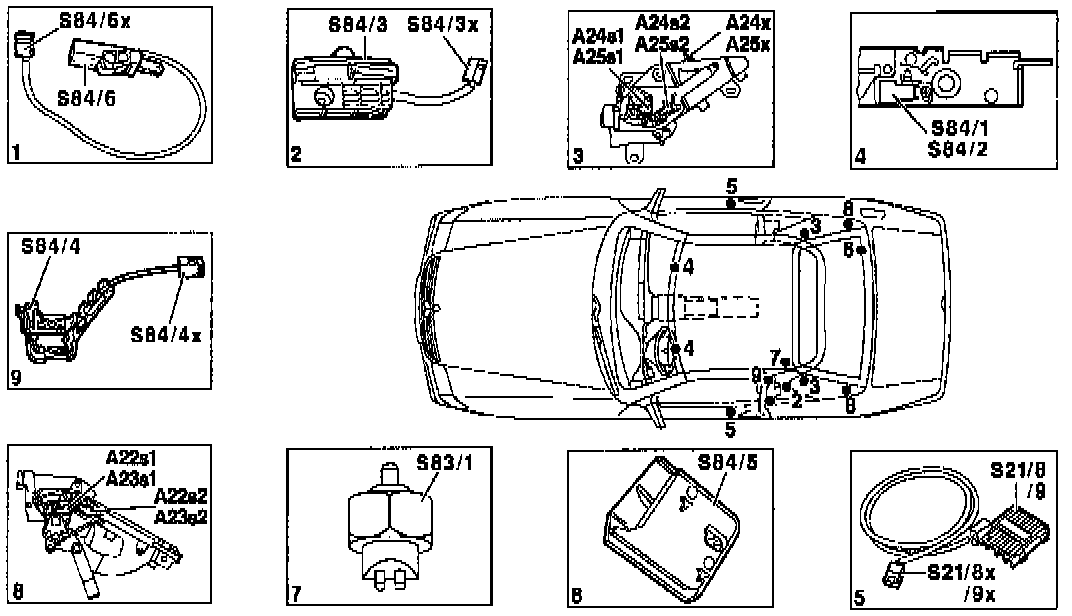

Locations of Limit Switches







Figure 1
A22s1 Bow "closed" switch (8)
A22s2 Bow "locked" switch (8)
A23s1 Bow "closed" switch (8)
A23s2 Bow "locked" switch (8)
A24s1 Cover "closed" switch (3)
A24s2 Cover "locked" switch (3)
A25s1 Cover "closed" switch (3)
A25s2 Cover "locked" switch (3)
S21/8 Right front door "window down" limit switch (5)
S21/9 Loft front door "window down" limit switch (5)
S83/1 RB "retracted" switch (7)
S84/1 Left front soft top "locked" switch (4)
S84/2 Right front soft top "locked" switch (4)
S84/3 Soft top "open" switch (soft top in storage compartment) (2)
S84/5 Soft top compartment "open" switch (6)
S84/6 Soft top fabric bow "raised" switch (1)

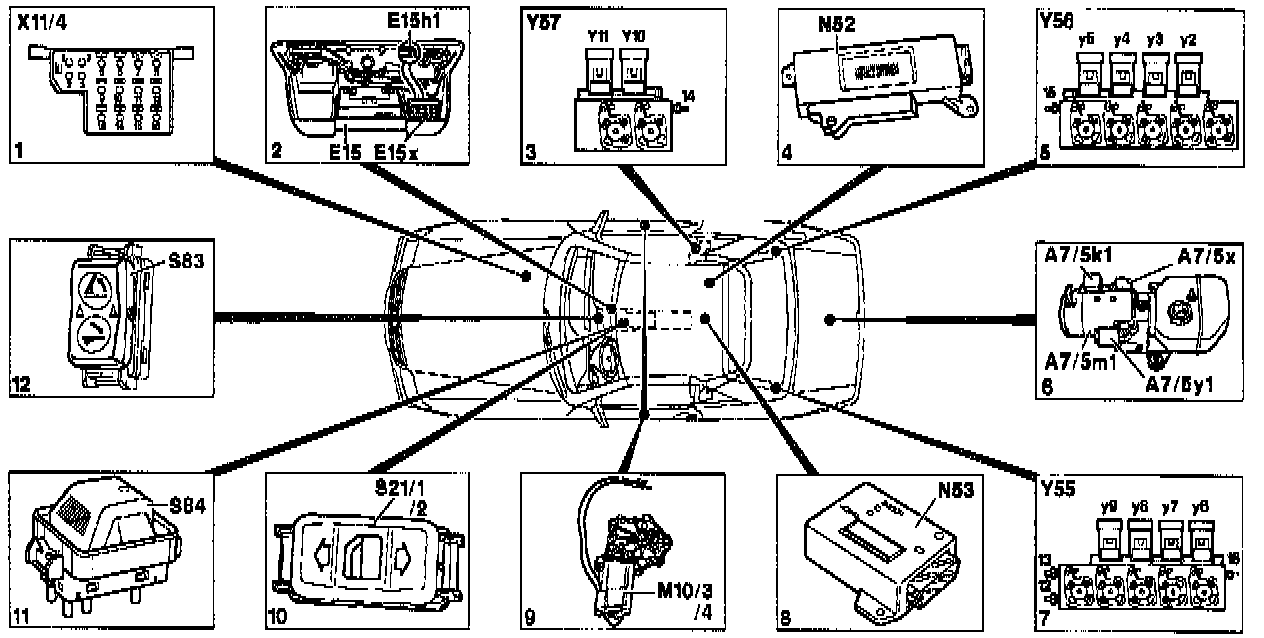

Locations of the Electrical Components







Figure 2
A7/5k1 Hydraulic unit relay
A7/5m1 Hydraulic unit motor
A7/5x1 Hydraulic unit connector
A7/5y1 Main valve (deleted as of VIN 1F-083891)
E15 Dome lamp (with shut-oft delay and reading lamp)
E15h1 Warning buzzer
E15x1 Dome lamp connector (with shut-off delay and reading lamp)
M10/3 Left front power window motor (voltage supply) (9)
M10/4 Right front power window motor (voltage supply) (9)
N52 Power soft top control module (4)
N53 RB control module (crash deployment) (8)
S21/1 Left front power window switch (front center console) (10)
S21/2 Right front power window switch (front center console) (10)
S83 RB switch (manual operation) (12)
S84 Power soft top switch (11)
X11/4 Data link connector (DTC readout) (1)
Y55 Left RST valve block (4 connections) (7)
Y55y6 Soft top "open" valve
Y55y7 Soft top "close" valve
Y55y8 Fabric bow "raise" valve
Y55y9 Fabric bow "lower" valve
Y56 Right RST valve block (4 connections) (5)
Y56y2 Rear locks valve
Y56y3 Center locks valve
Y56y4 Front locks valve
Y56y5 Soft top compartment cover valve
Y57 RB valve block (3)
Y57y10 Rod side valve
Y57Y11 Piston side valve

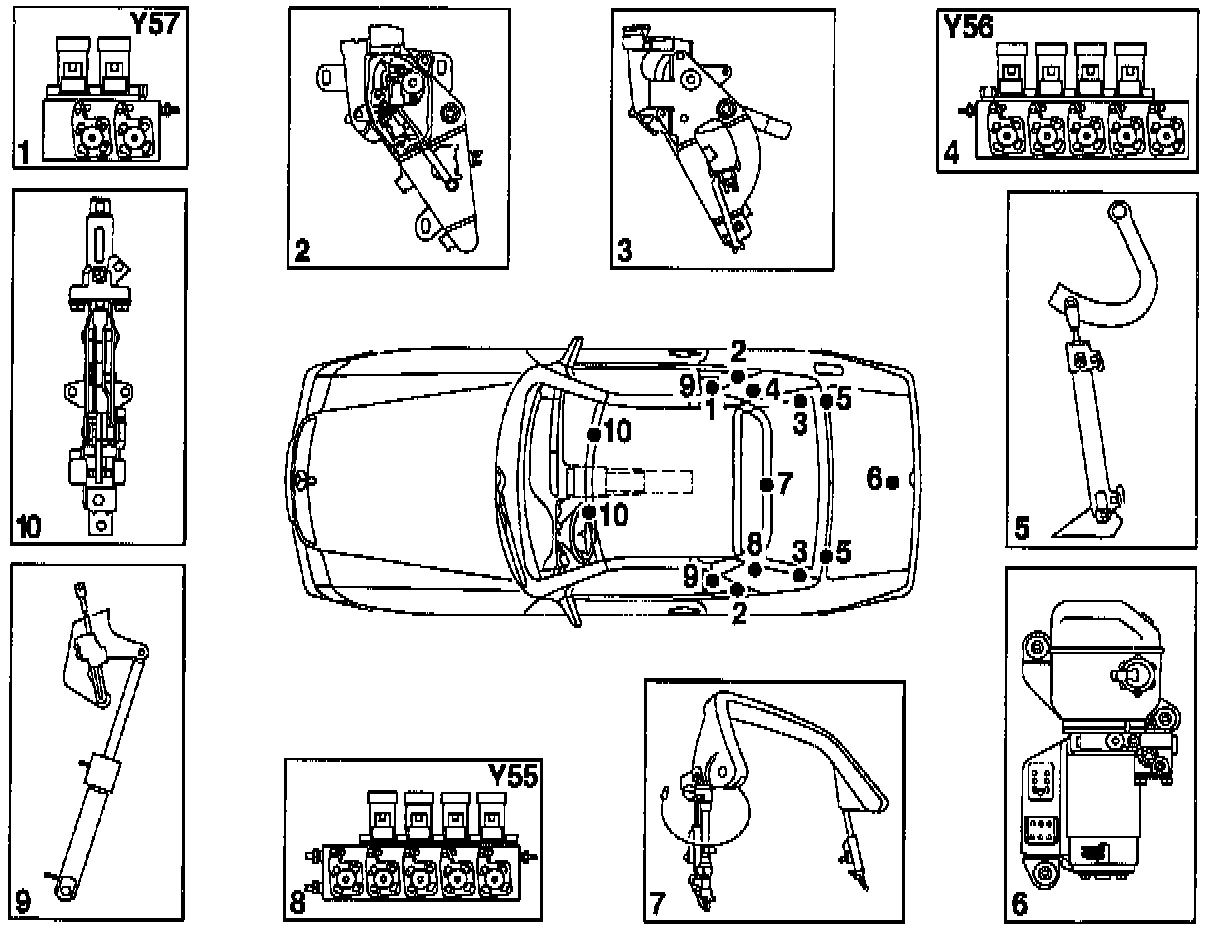

Locations of the Hydraulic Components







Figure 3
1 RB valve block (Y57)
2 Center locks
3 Rear locks
4 Right RST valve block (4 connections)
5 Soft top compartment cover hydraulic cylinder
6 Hydraulic element
7 Complete roll bar
8 Left RST valve block (4 connections)
9 Soft top and fabric bow hydraulic cylinder
10 Front locks
