Component Connections




Locations of Connectors

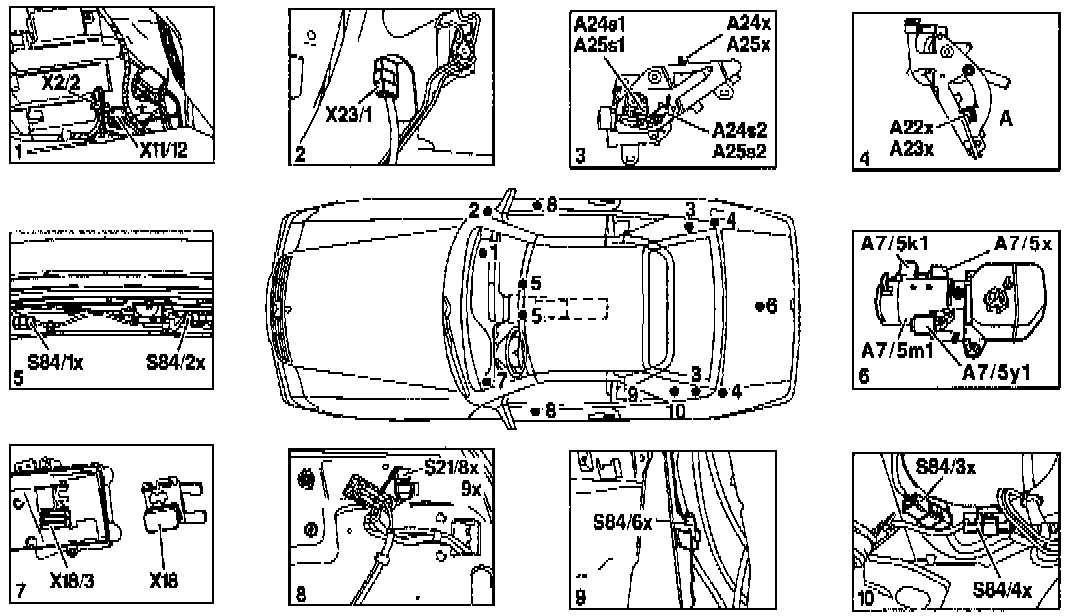

Figure 1
A7/5x1 Hydraulic unit connector
A22x1 Left soft top fabric bow switch group connector
A23x1 Right soft top fabric bow switch group connector
A24x1 Cover "locked" switch
A25x1 Center soft top compartment cover switch group connector
S21/8x1 Right front door "window down" limit switch connector
S21/9x1 Left front door "window down" limit switch connector
S84/1x1 Retractable hardtop switch connector
S84/2sx1 Right front soft top "locked" switch connector
S84/3x1 Soft top "open" switch connector (soft top in storage compartment)
S84/4x1 Soft top "closed" switch connector
S84/6x1 Soft top fabric bow "raised" switch connector
X2/2 VSS connector (radio) (2-pole)
X11/2 Power soft top test connector
X18 Interior/taillamp harness connector (12-pole)
X18/3 Interior/taillamp harness connector (8-pole)
X23/1 Power top/front locks connector (3-pole)
