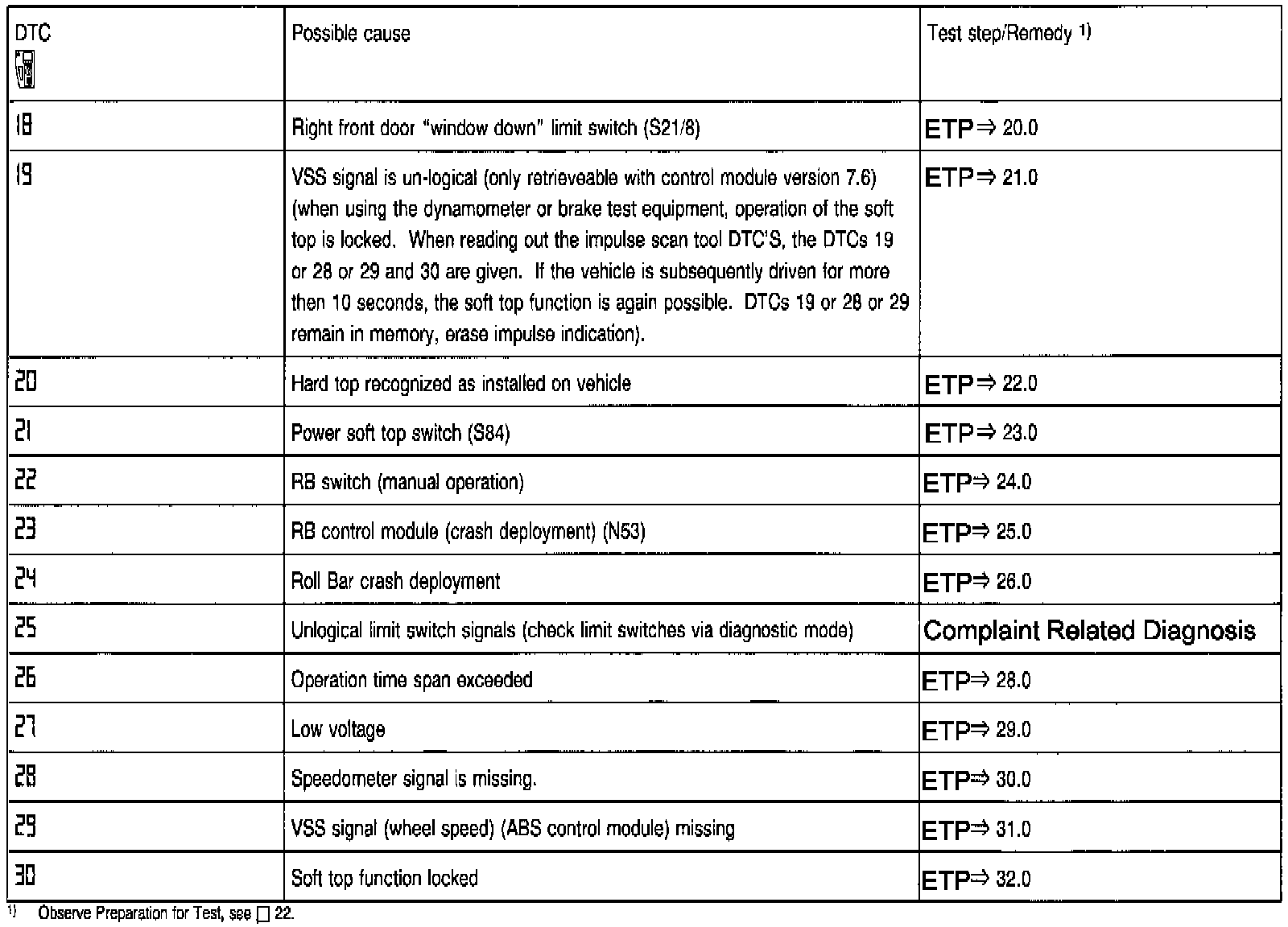

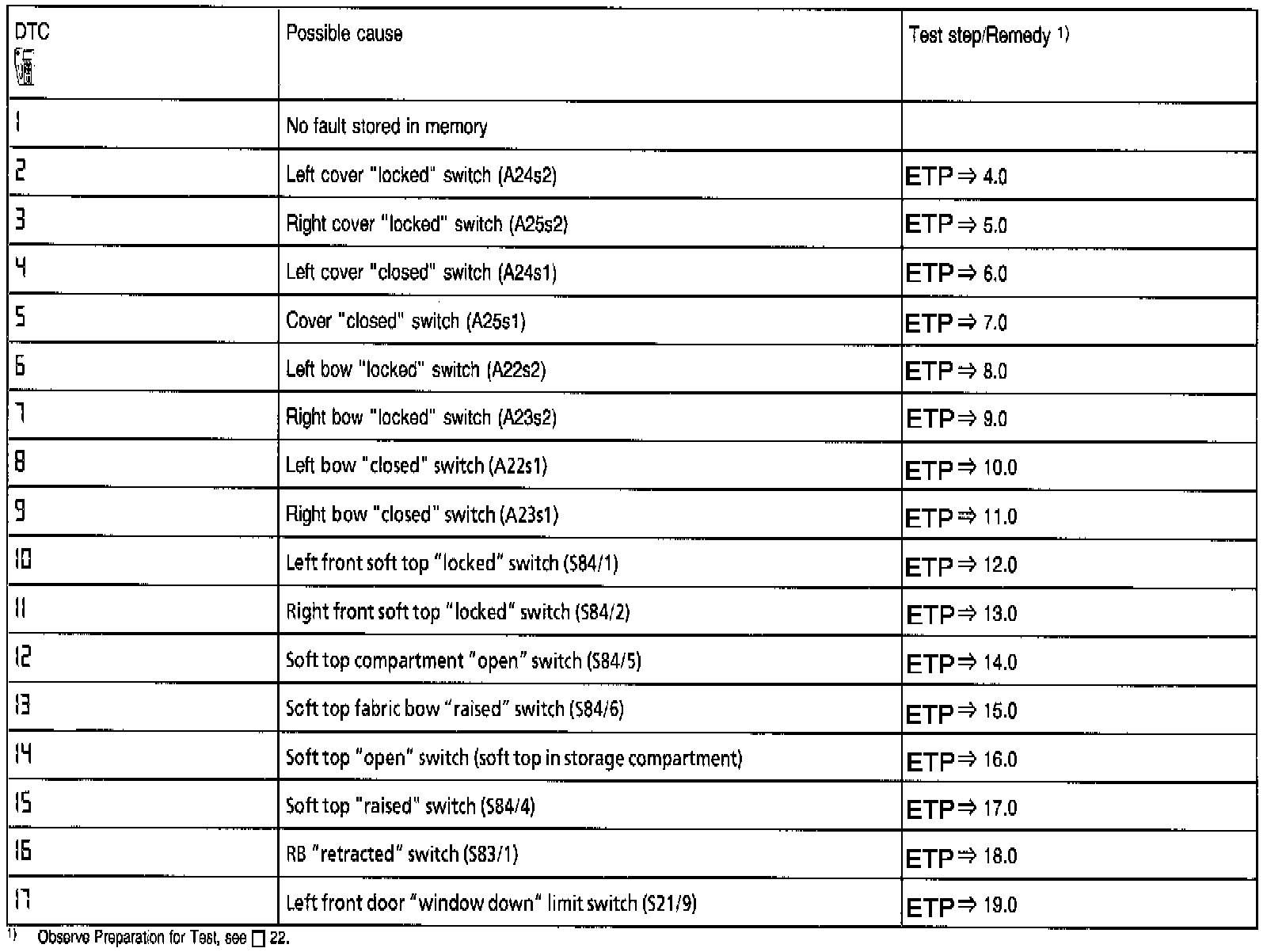

DTCM - Diagnostic Trouble Code Memory
Preliminary work
- Function Test FT - Function Test
CAUTION!
- Injury hazard from pinching and crushing, in extreme cases extremities can even be severed when caught in the mechanism.
- Do not allow any body parts to be in the general area of the moving components.
Prerequisite for reading DTC memory
1. Fuses O.K.,
2. Battery voltage > 11 V,
3. Connect HHT. Connecting Tester Or Scanner, Reading and Erasing DTC Memory
4. Review entire section.
