ETP Test Steps

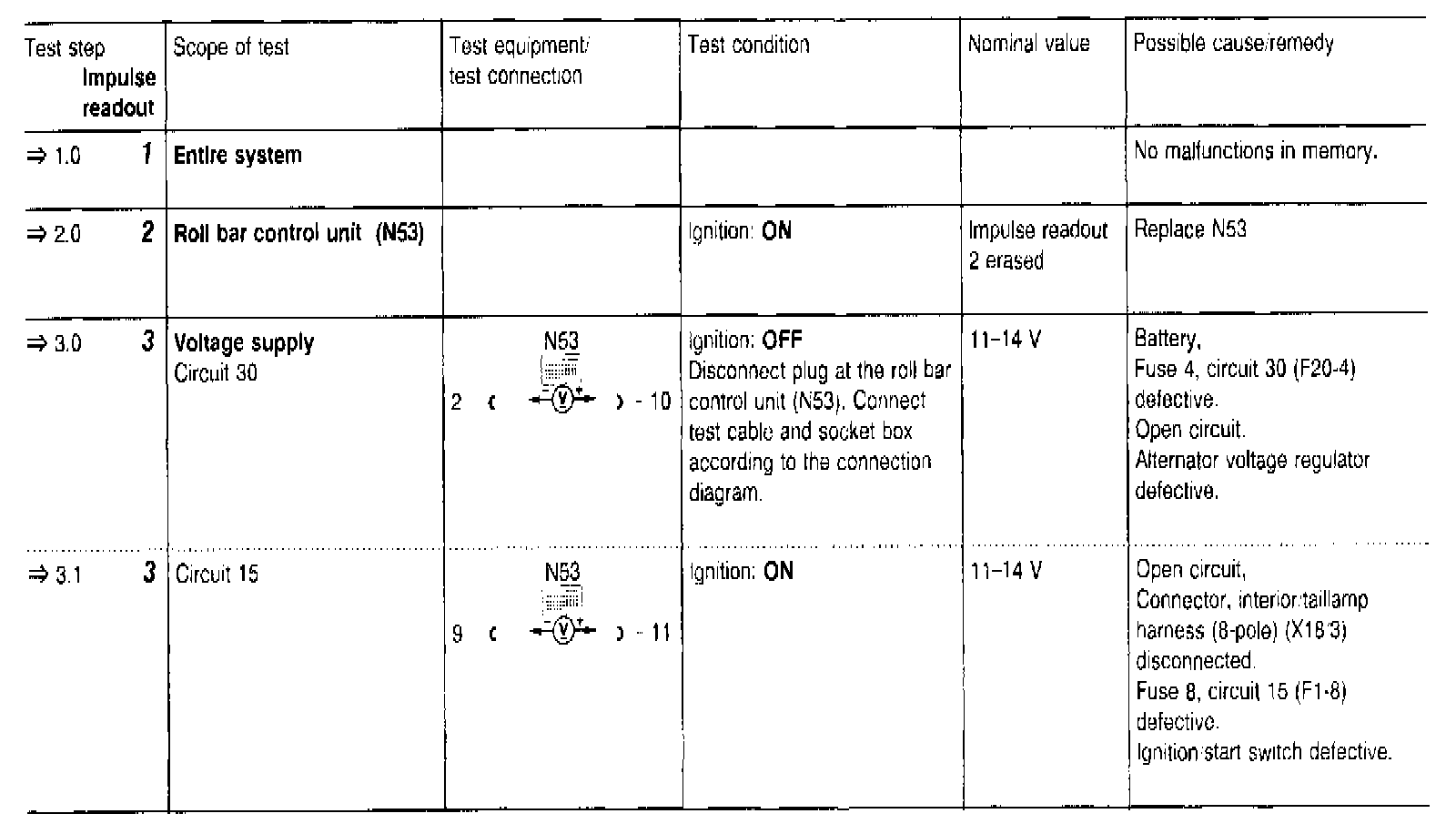

1.0 - 3.1:

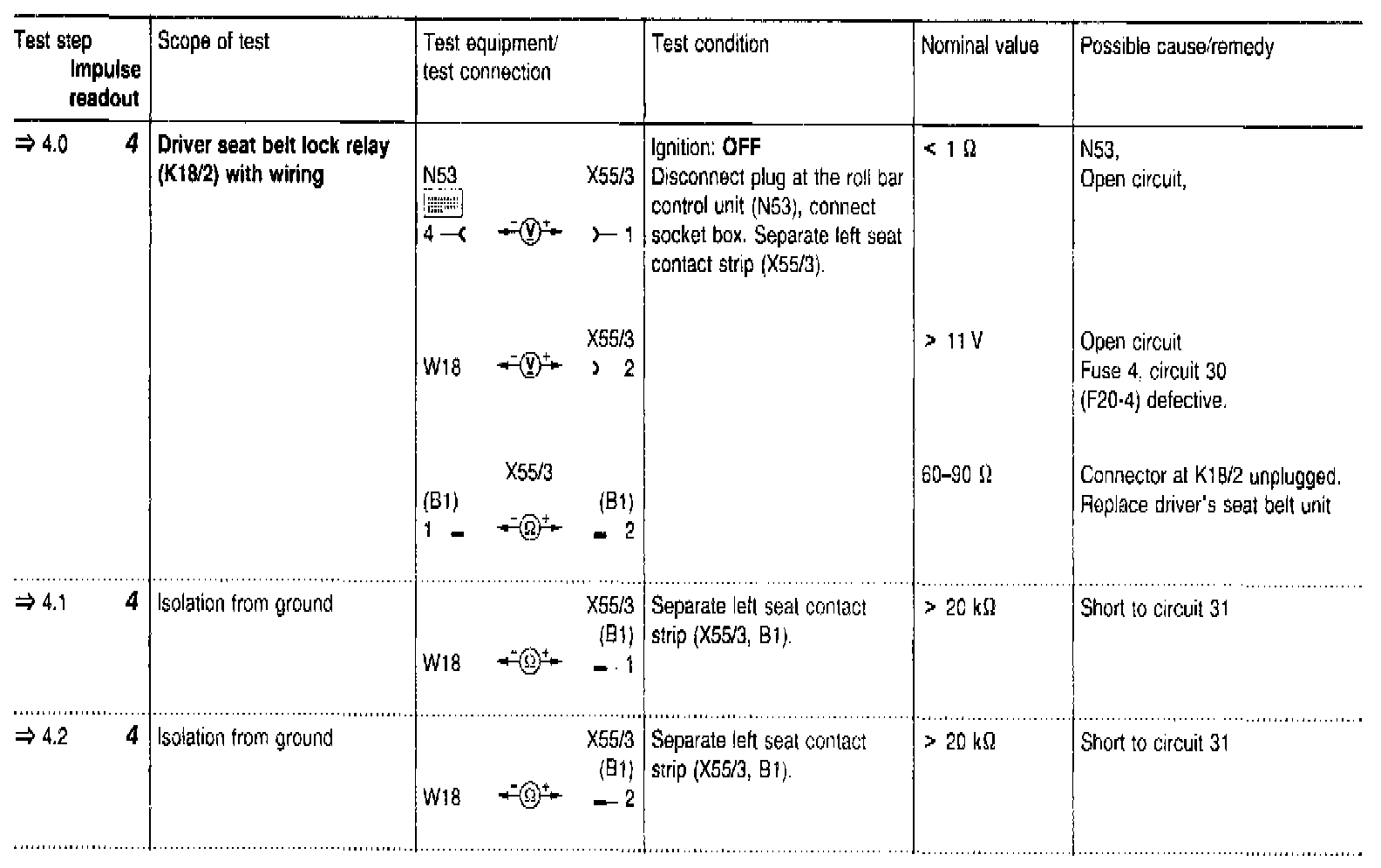

4.0 - 4.2:

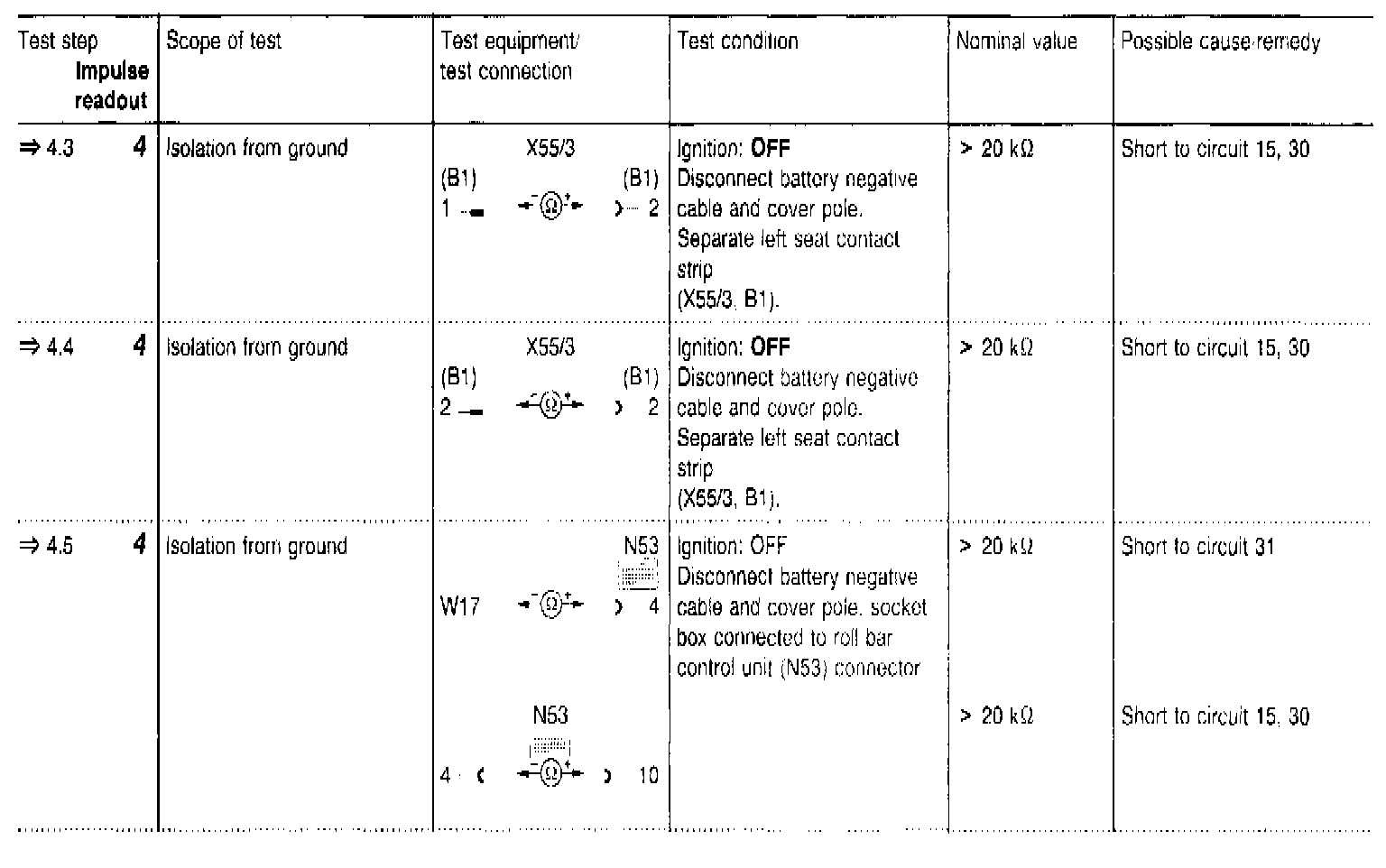

4.3 - 4.5:

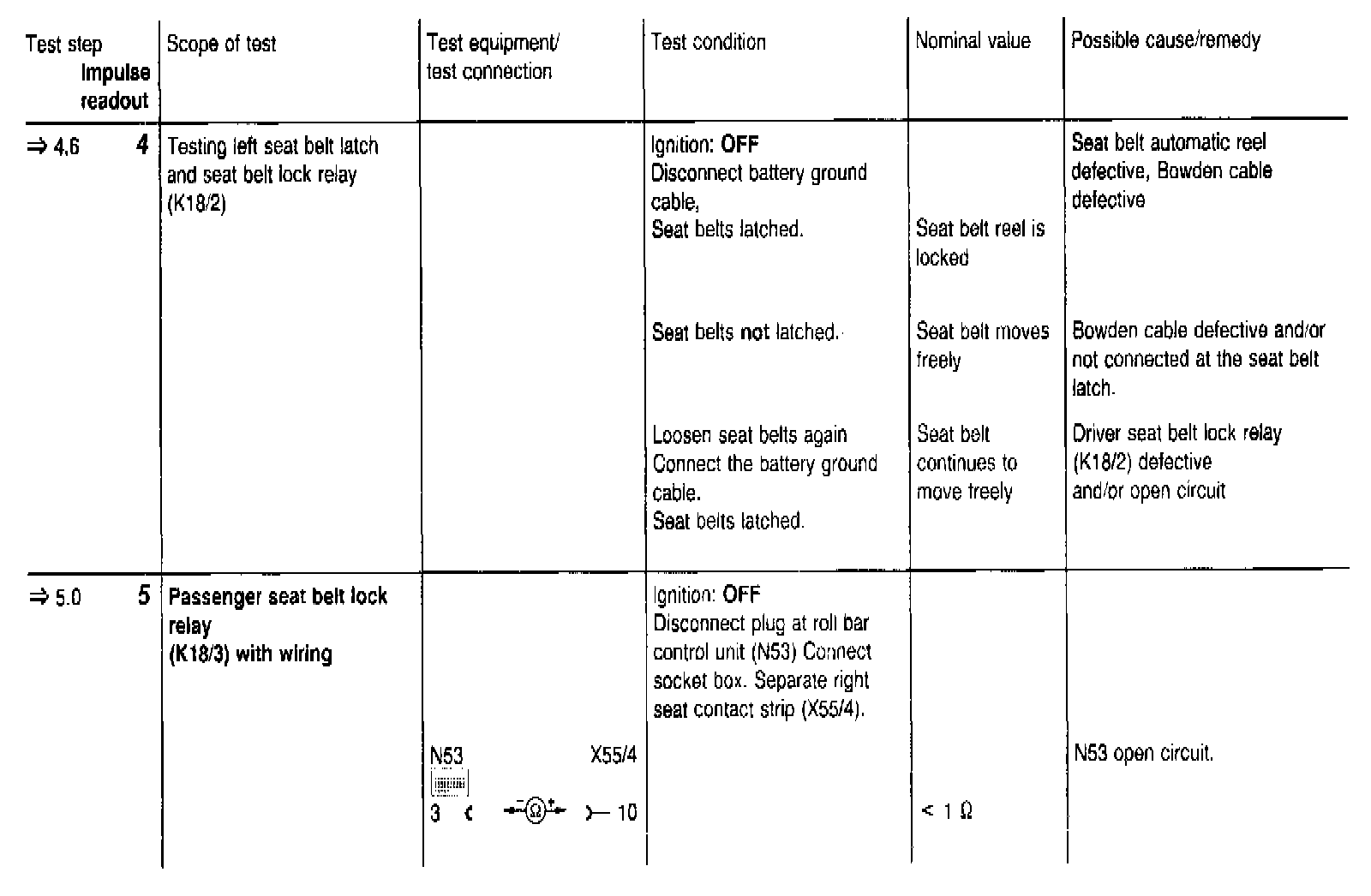

4.6 - 5.0:

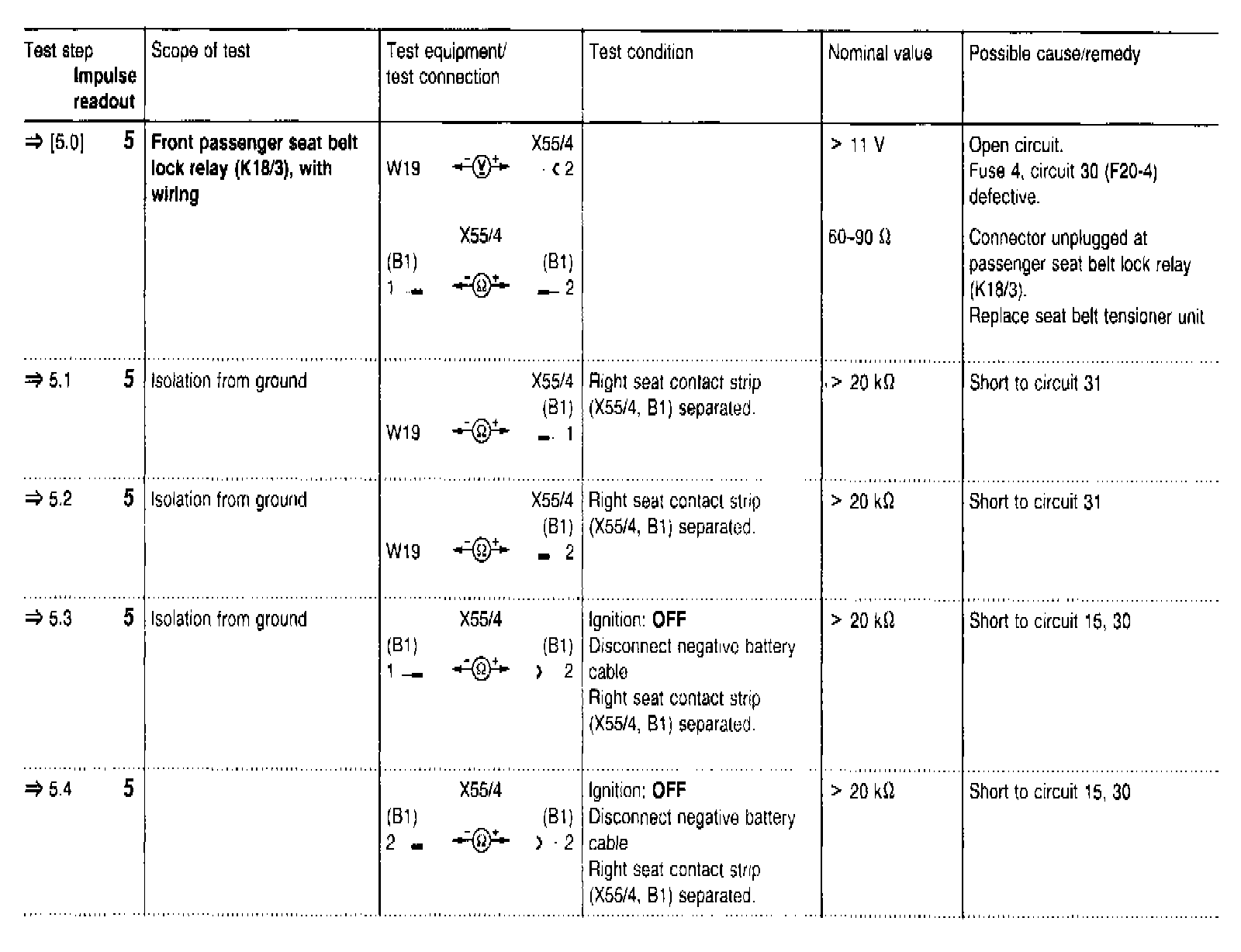

5.0 - 5.4:

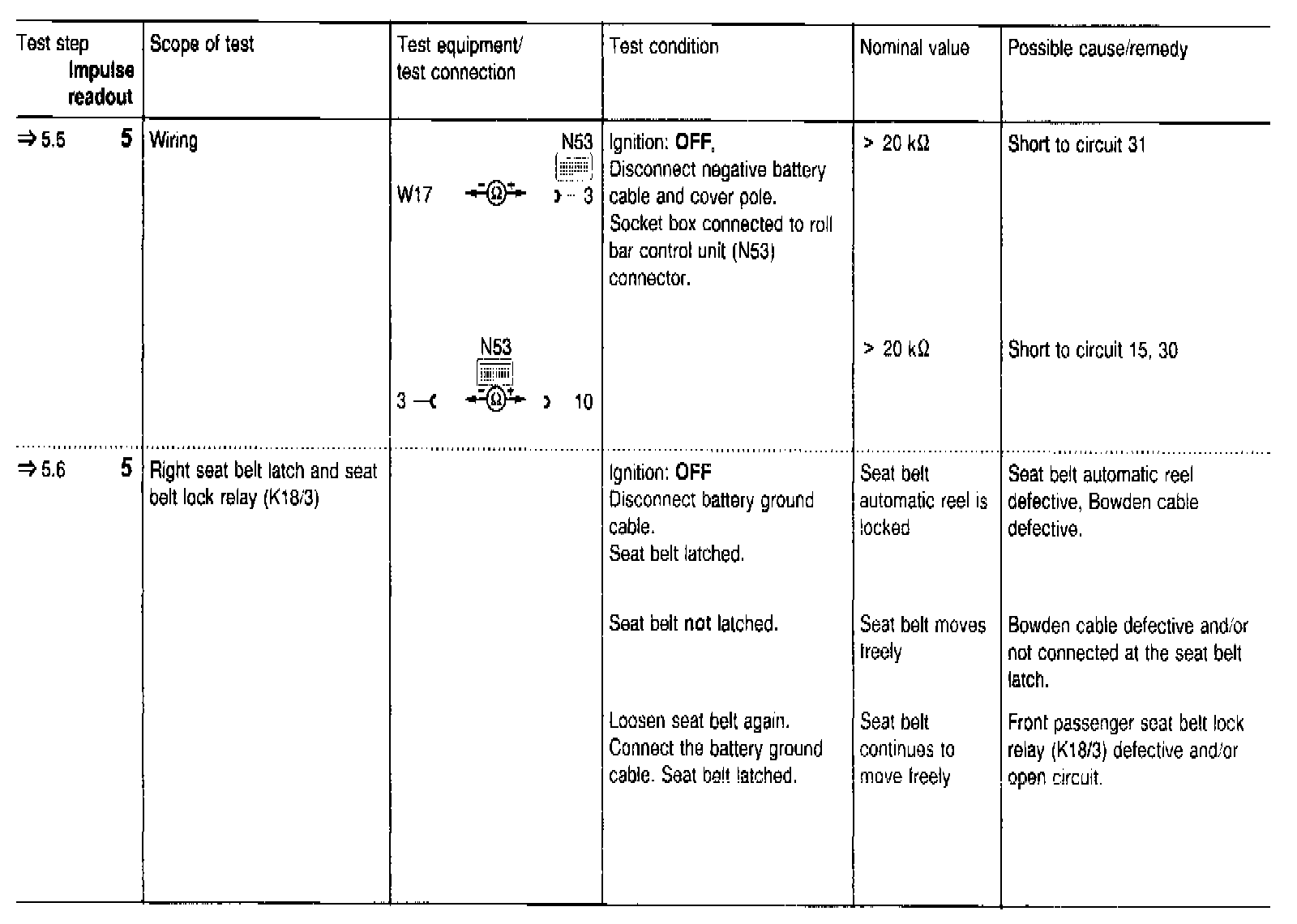

5.5 - 5.6:

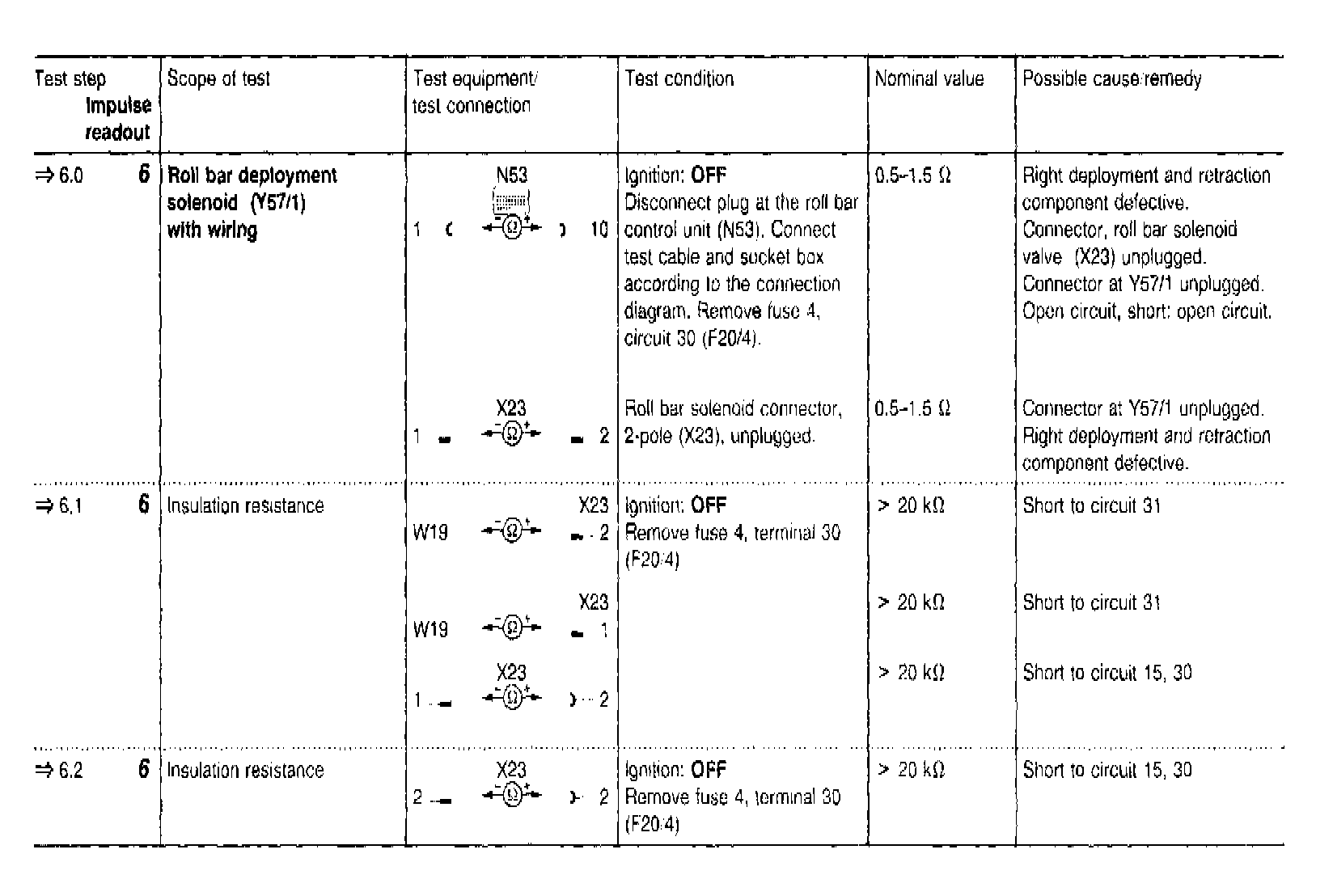

6.0 - 6.2:

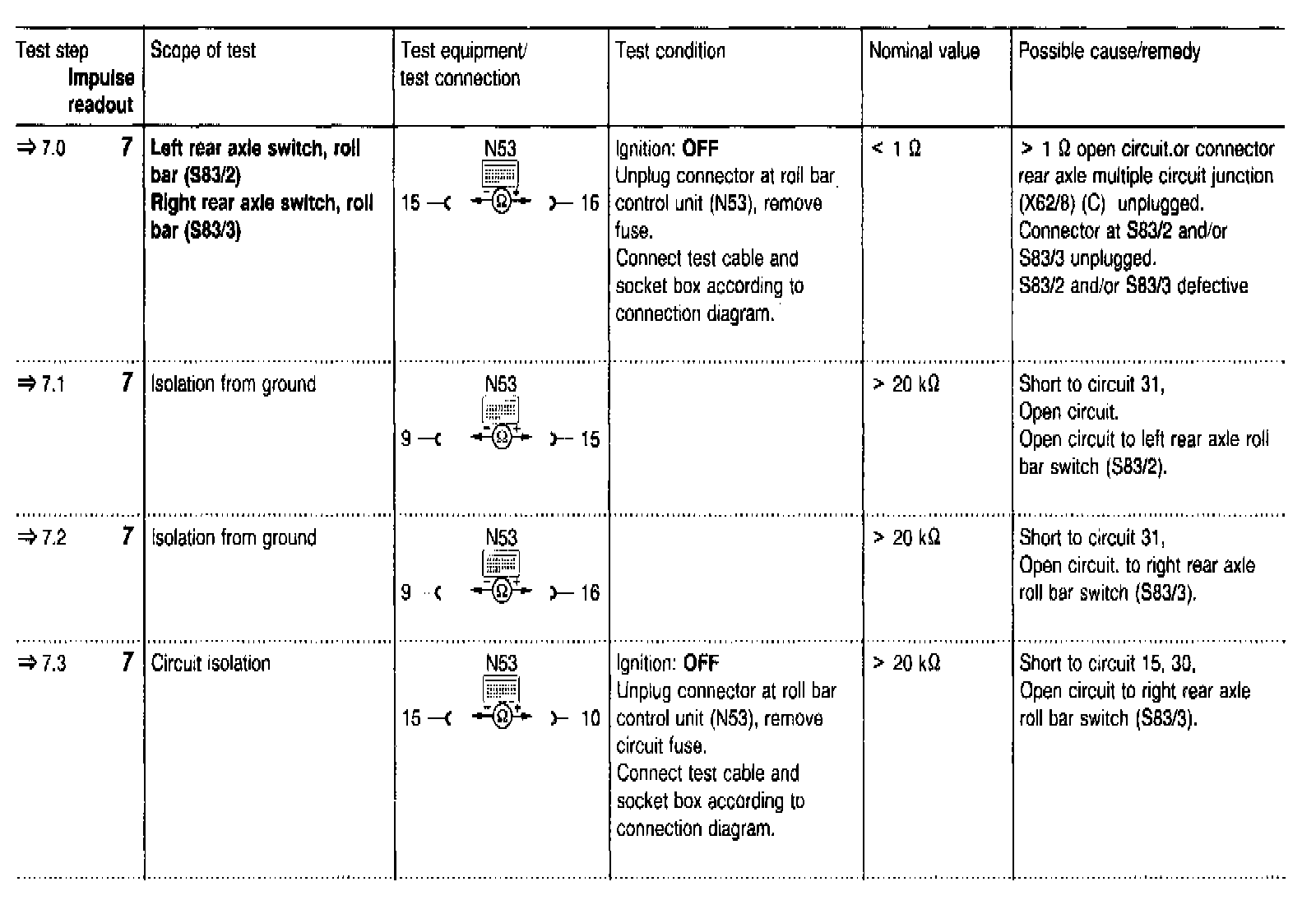

7.0 - 7.3:



7.4 - 8.0:

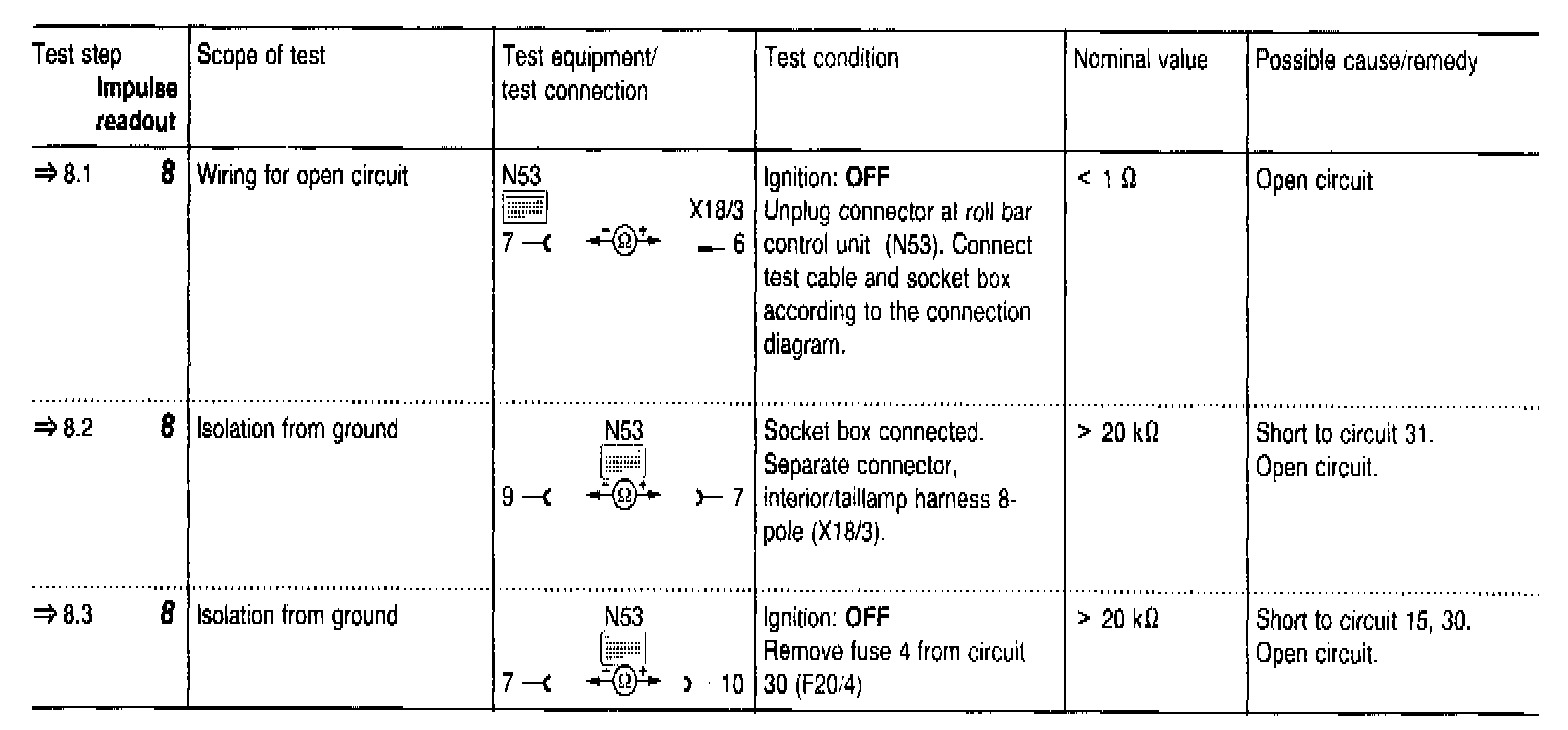

8.1 - 8.3:

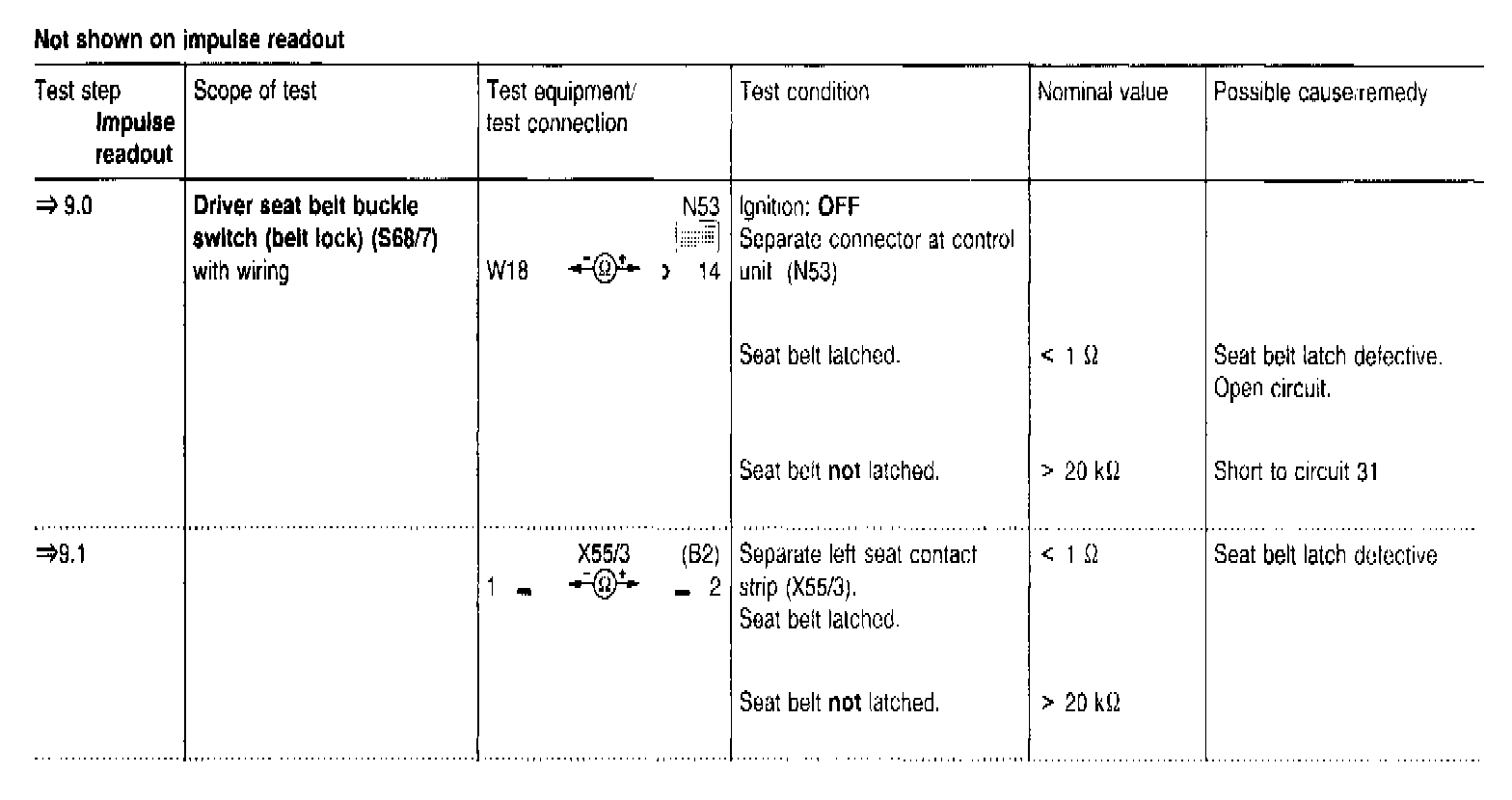

9.0 - 9.1:

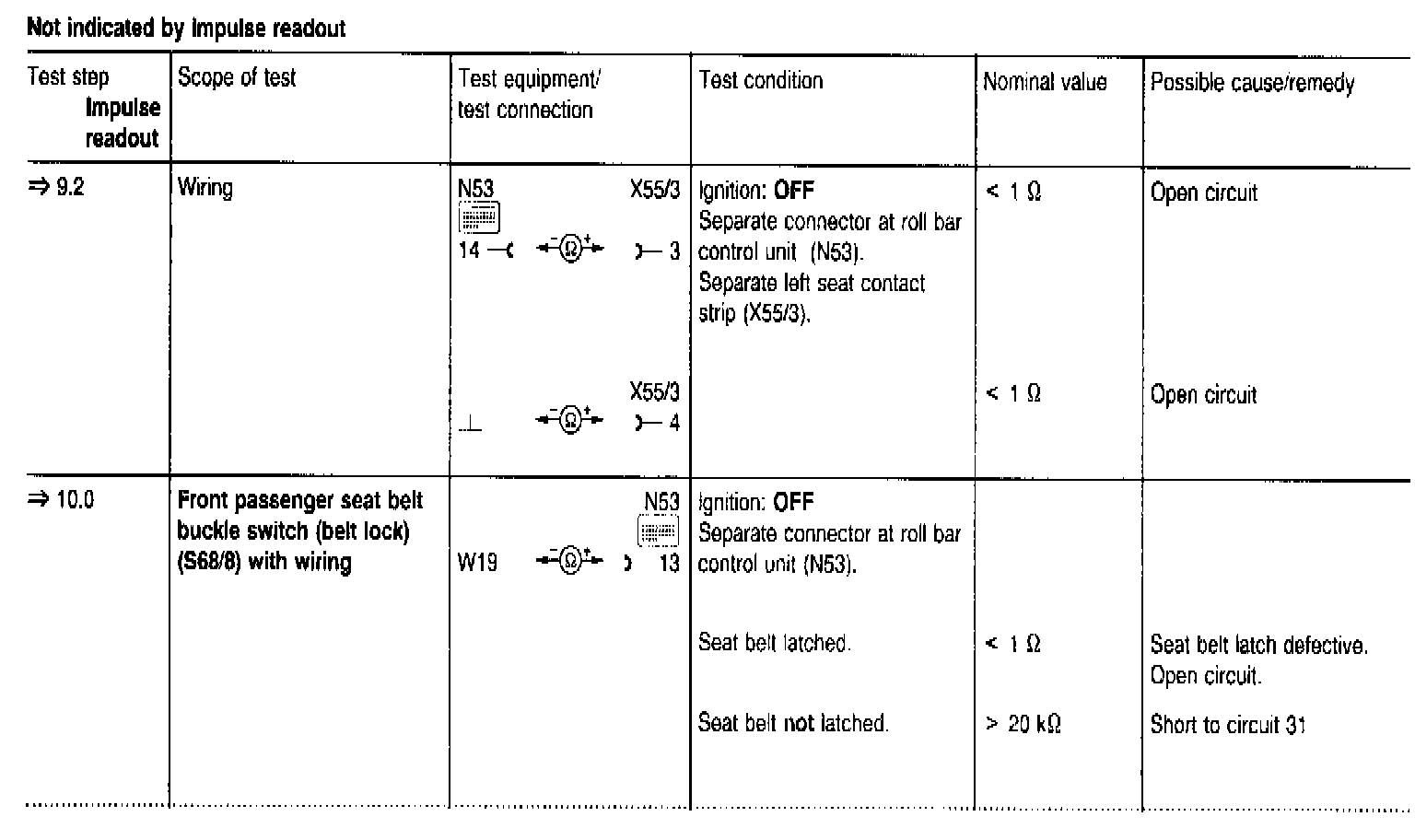

9.2 - 10.0:

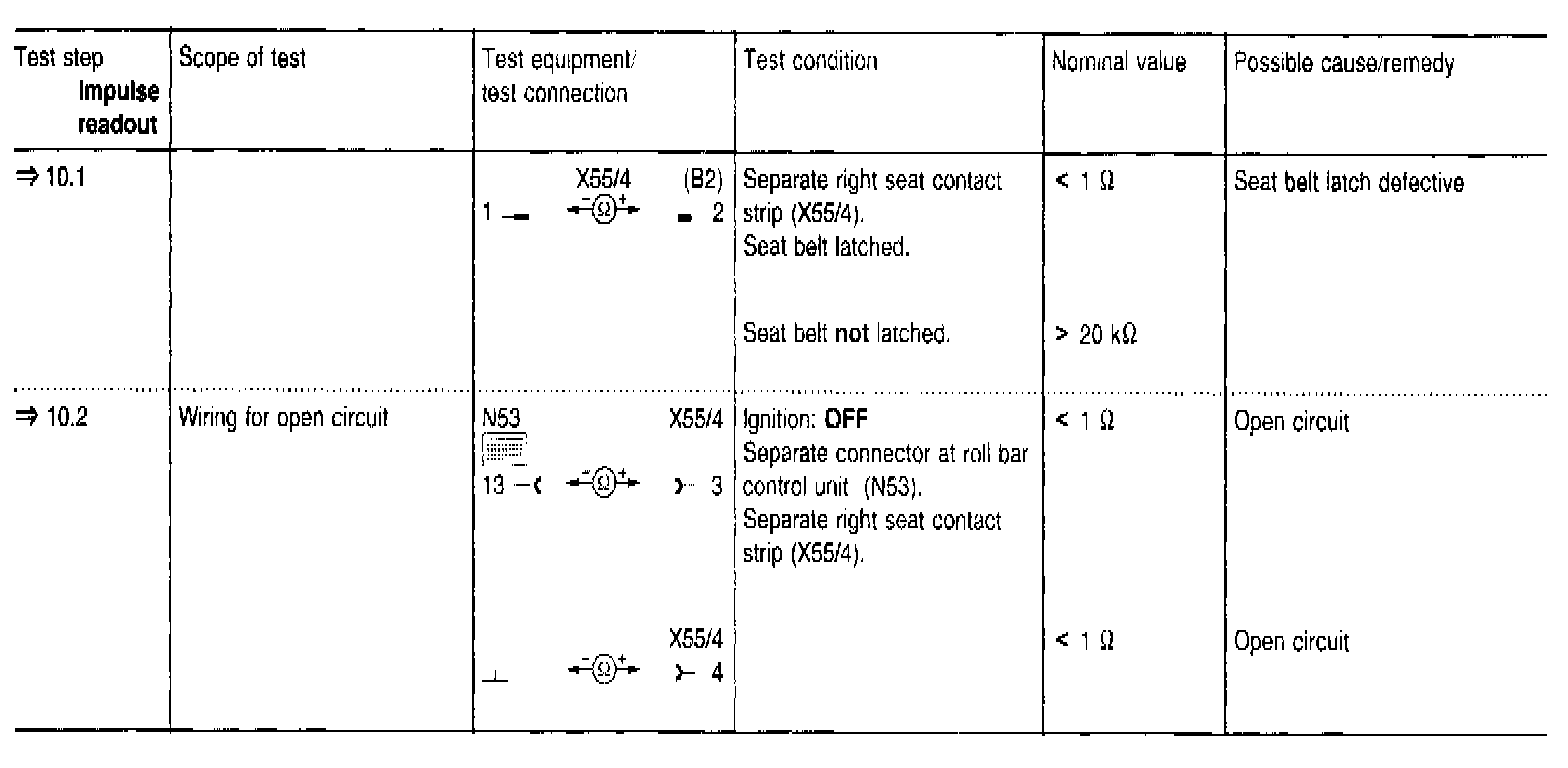

10.1 - 10.2:
