Code 11
Code 11
Trouble Shooting Procedure:

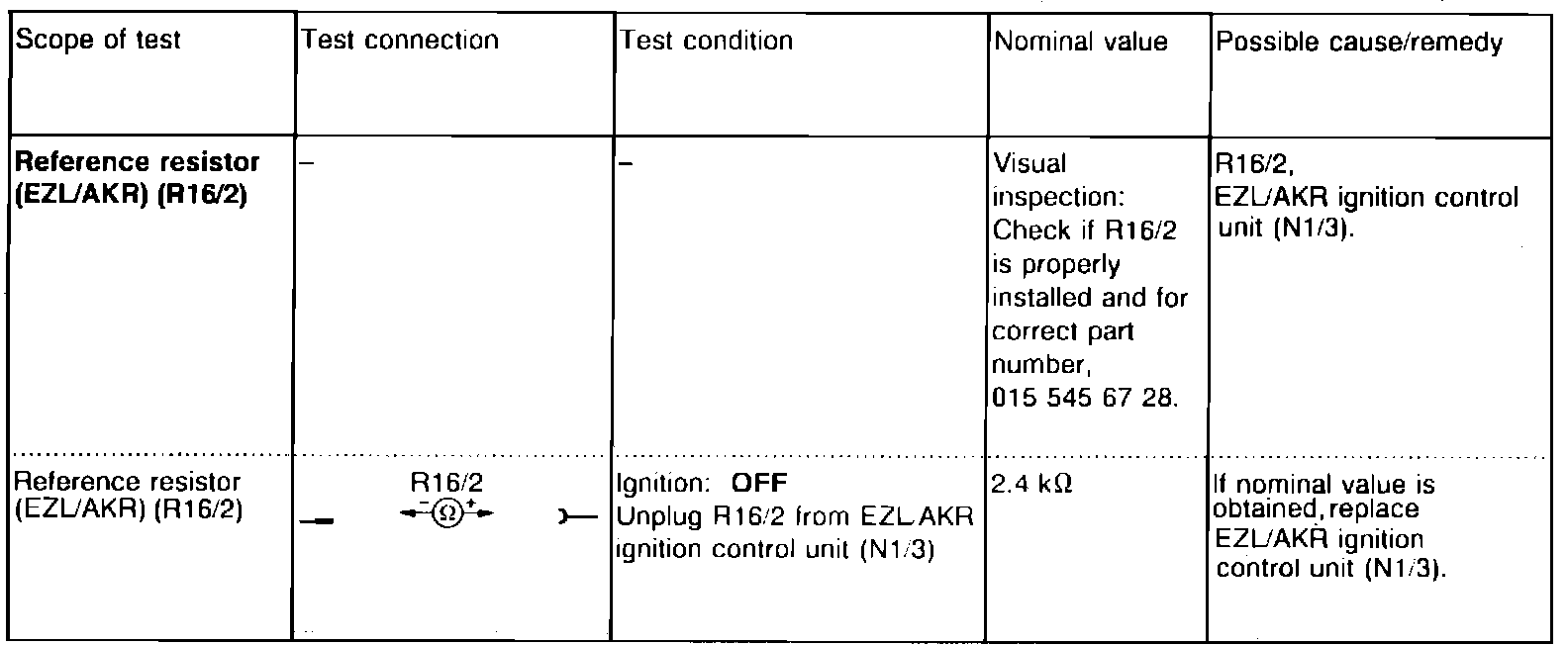

DIAGNOSTIC CHART
EZL-AKR Control Unit Terminal Designations:
REFERENCE RESISTOR LOCATION

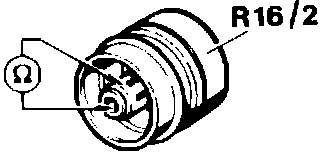

Reference Resistor:
REFERENCE RESISTOR
