Home >> Mercedes Benz >> 1990 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Powertrain Management >> Constant On/Off Ratio

Constant On/Off Ratio

Trouble Shooting Procedure:

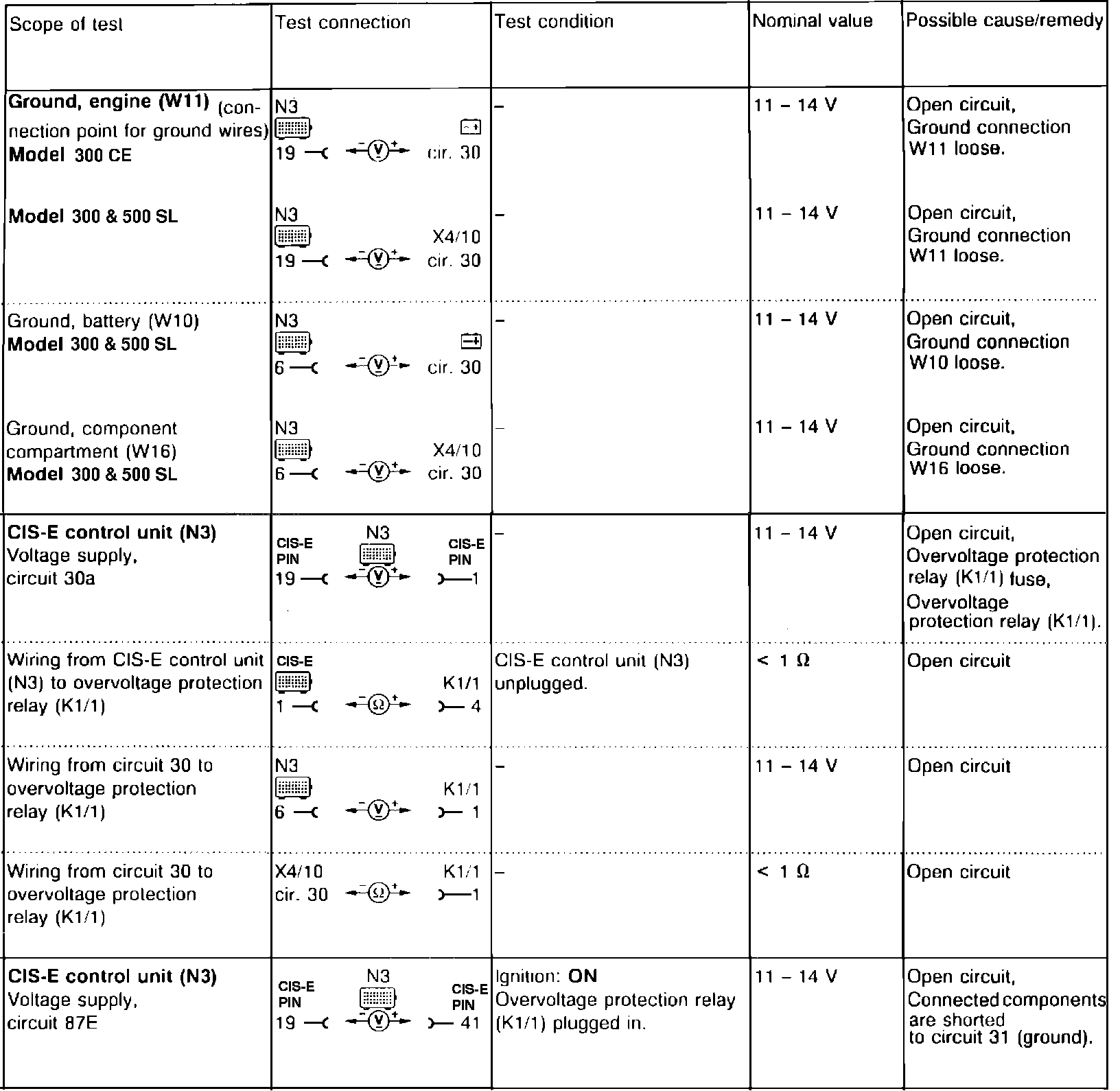

INCORRECT VOLTAGE AT CIS-E CONTROL UNIT

Trouble Shooting Procedure:





UNEXPECTED CURRENT READING AT ELECTRO-HYDRAULIC ACTUATOR
