Remove/Install Rubber Seal Below Wiper Gear

Removal:





- Remove wiper system. Remove/Install Wiper Motor
- Detach wiper linkage from wiper gear. Service and Repair

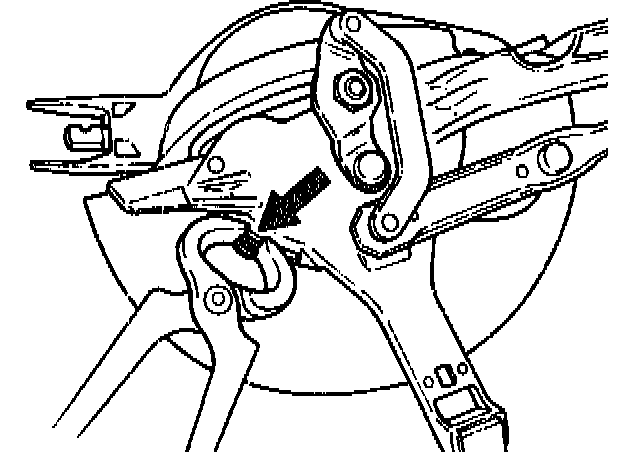

1. Press off locking ring (arrow).

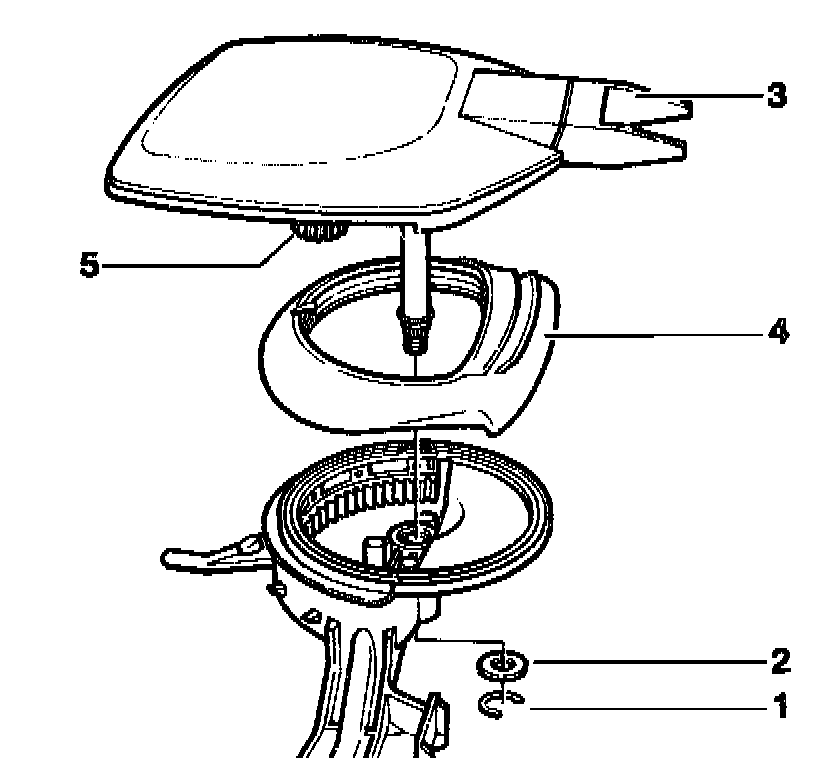

NOTE: Gear head can only be removed in center position. Do not knock out with hammer. When installing, the push rod must be fully inserted; correct, if neressary, by turning cog wheel (5).

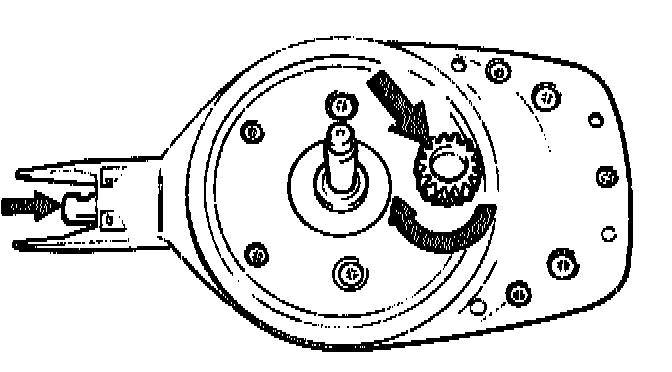

2. Turn gear head into center position (at right angles to notched bar) and withdraw the bearing.

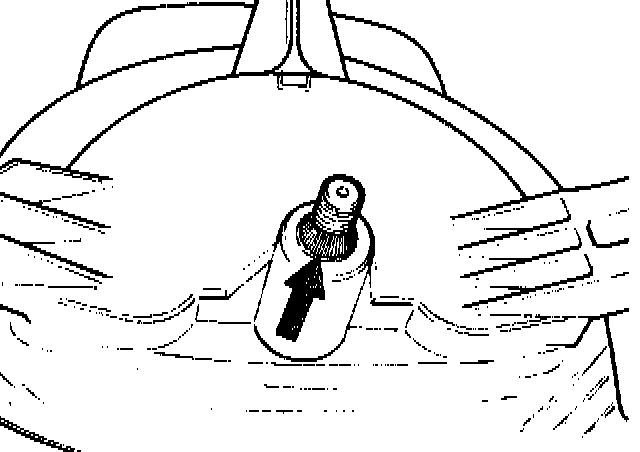

3. Take off rubber seal (arrows).

Installation:
4. Coat new rubber seal (arrows) with MB Universal Adhesive and stick onto the housing.





5. On models with air conditioner, additionally attach new rubber seal with a hose strap (arrow).





6. Move gear head into center position and introduce into bearing until the push rod is fully inserted. Correct at gear wheel if necessary by turning.
7. Press retaining ring onto wiper shaft.
8. Complete assembly in reverse order of removal.
