Wiper Motor Linkage: Service and Repair

- Remove wiper system. Remove/Install Wiper Motor

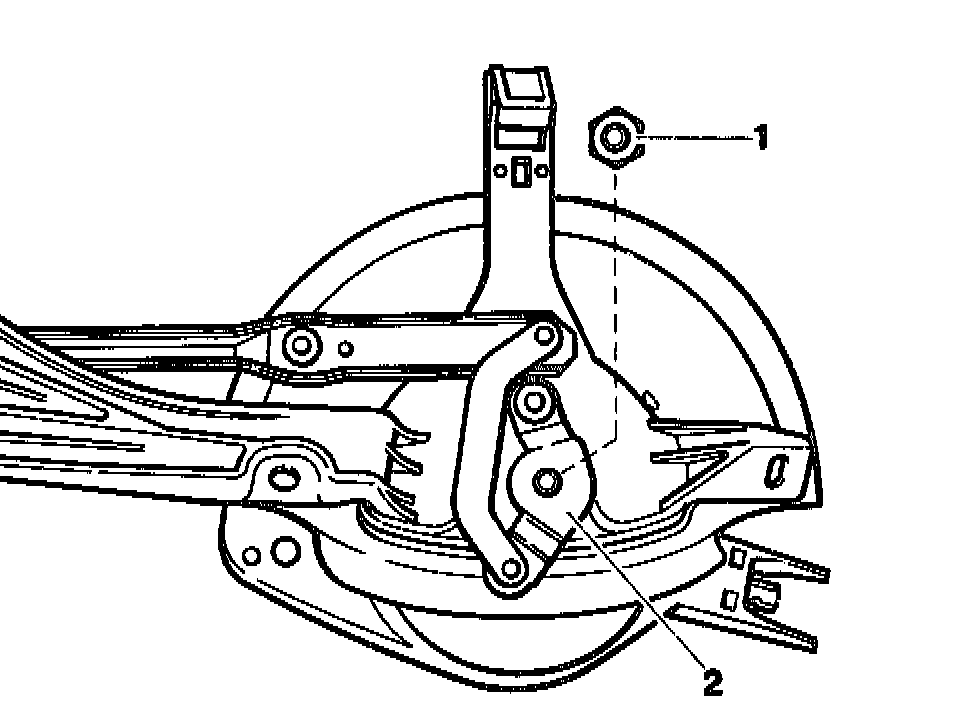

- Unscrew nut (1) on wiper motor shaft. Torque to 19 Nm on reinstallation.
- Press off crank arm (2).
- Reverse procedure to install.

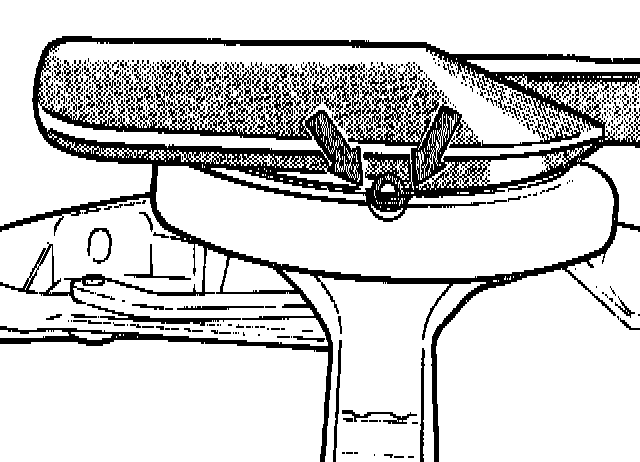

Align markings on gear head for installing (arrows) so that they are above each other (park position).
