Windshield/Rear Glass - Repair Kit

REF. No. 67/15

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: June 1988

SUBJECT:
WINDSHIELD AND REAR WINDOW INSTALLATION MODEL 124

With the introduction of repair kit 124 670 01 93 for windshield and rear window installations, the following points should be observed:

^ Never mix the glass primer with the glass activator.

^ Observe the respective repair instructions for window replacement in the microfiche, group 67, as well as S.I. 67/13 and 67/14 and the Education for Excellence Video titled "Polyurethane Bonded Glass Installation".

NOTE:
Whether the vehicle is repaired at the dealership facility or subletted for repair, the glass replacement should be closely inspected before returning the vehicle to its customer.

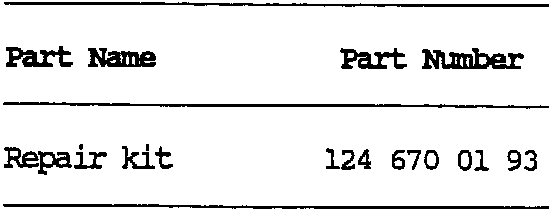

Parts Information





NOTE:
Items 4 & 7 are the same adhesive material packaged in two sizes for convenience. Item 7 should be sufficient for installation of one glass, with item 4 provided in the event that the installer applies the adhesive too thick and possibly runs out before completing the bead around the entire perimeter.
