HTP - System Pressure [33]

Hydraulic Test Program - System Pressure

Preparation for test

1. Check, and correct, if necessary oil level in reservoir.
2. Remove plastic cover over hydraulic unit.

Caution: If reservoir was empty, bleed the supply pump as follows: Disconnect the high pressure hose (P) from the steel line. With the engine running, hold the hose in a container until the oil contains no more bubbles.

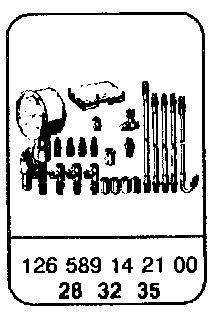

Special Tools

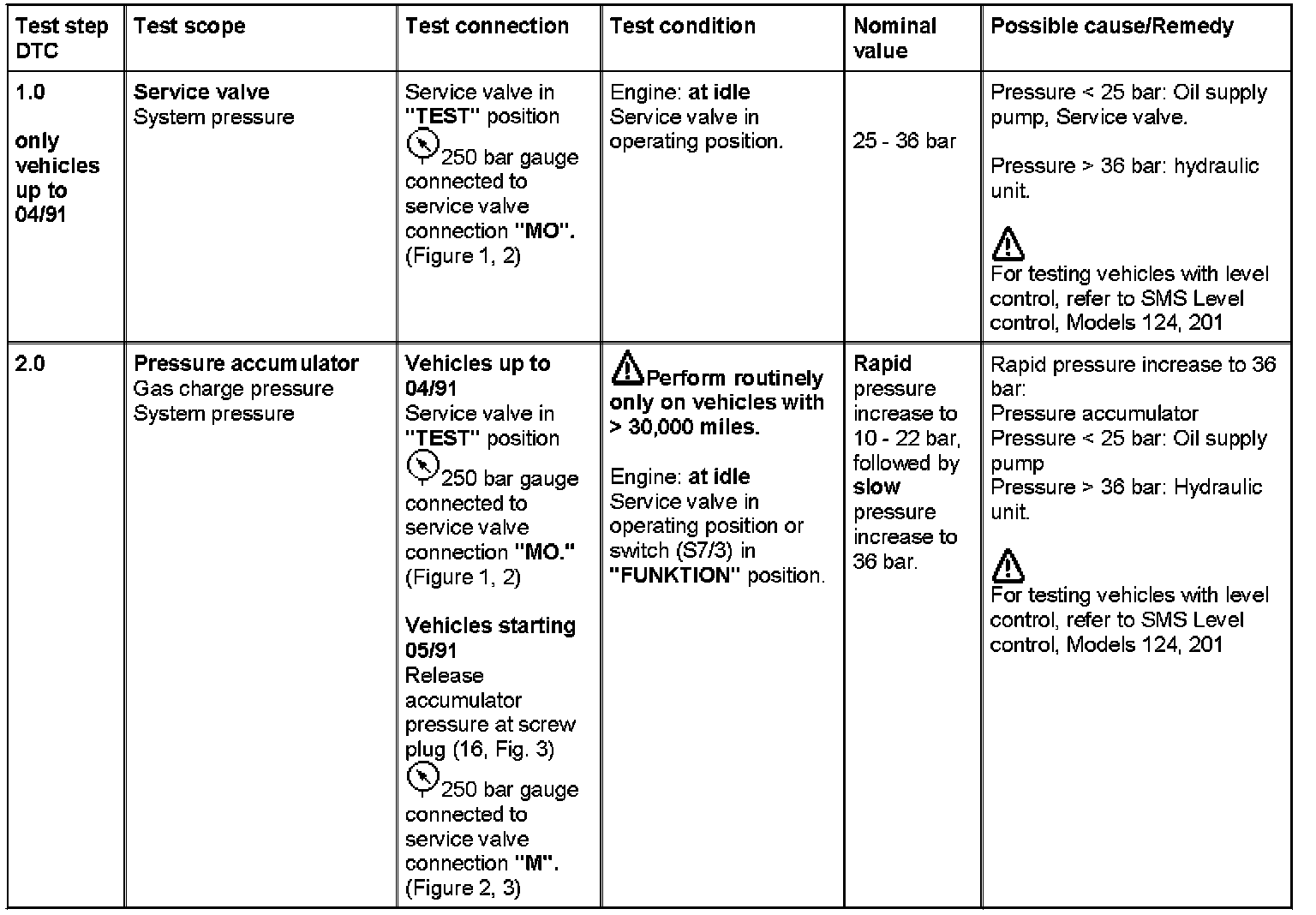

Test Steps 1.0 - 2.0:

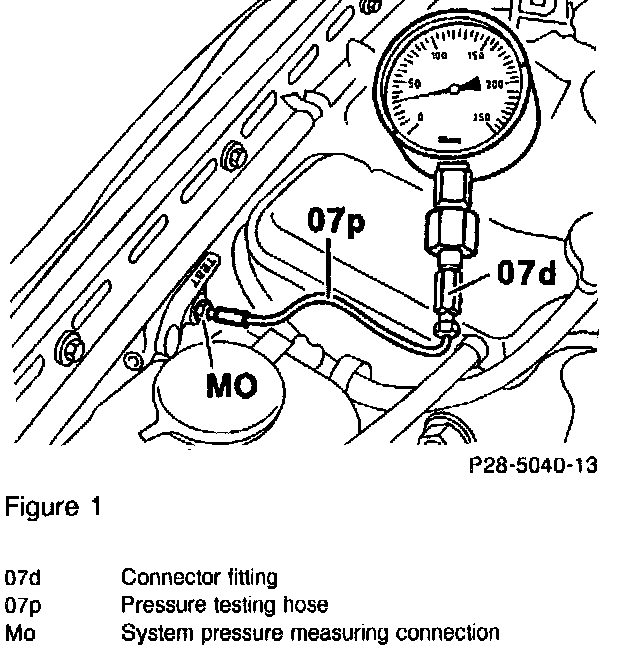

Figure 1:

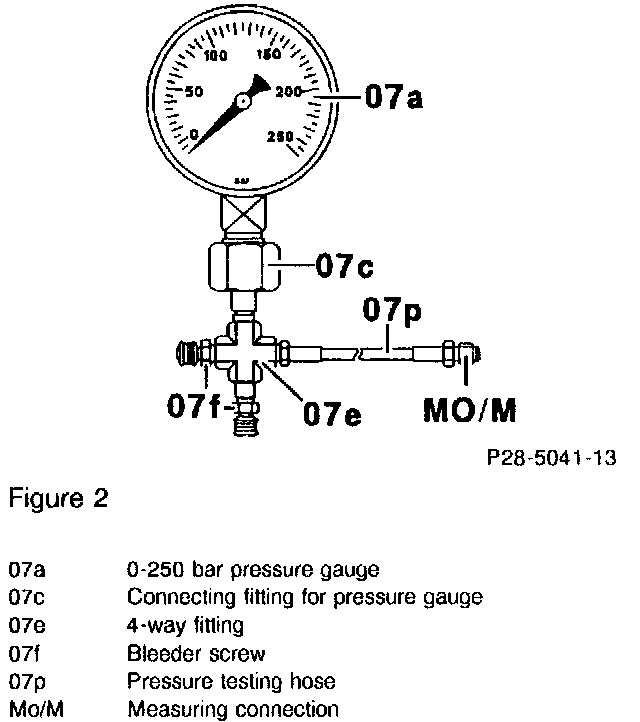

Figure 2:

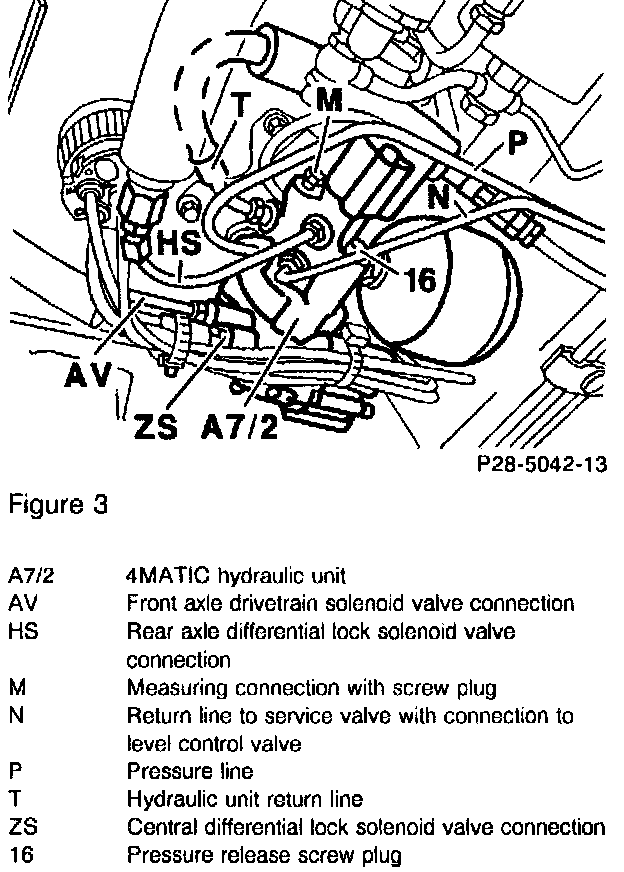

Figure 3:
