HTP - Multi-Disc Clutches [34]

Hydraulic Test Program - Multi-disc Clutches

Preparation for test

1. Check and correct, if necessary oil level in reservoir.
2. Remove plastic cover over hydraulic unit.
3. For test step => 3.0, connect socket box according to connection diagram, figure 5.

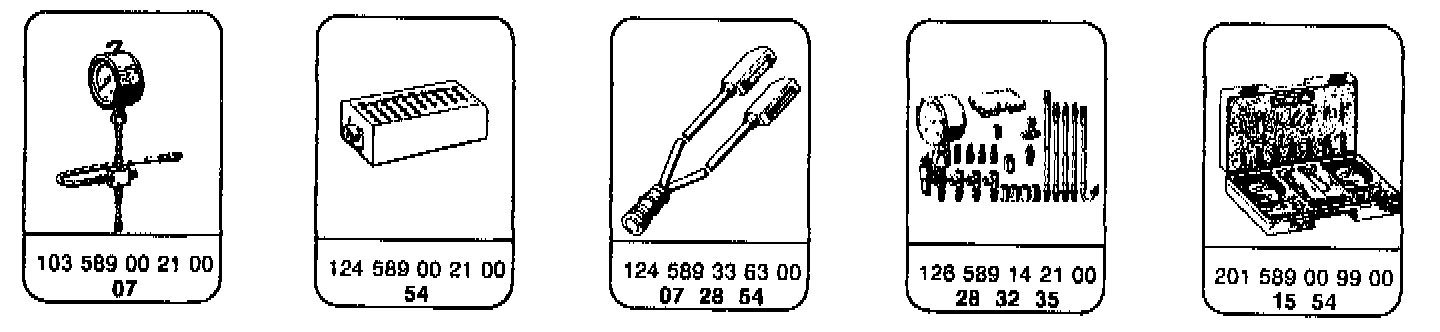

Special Tools

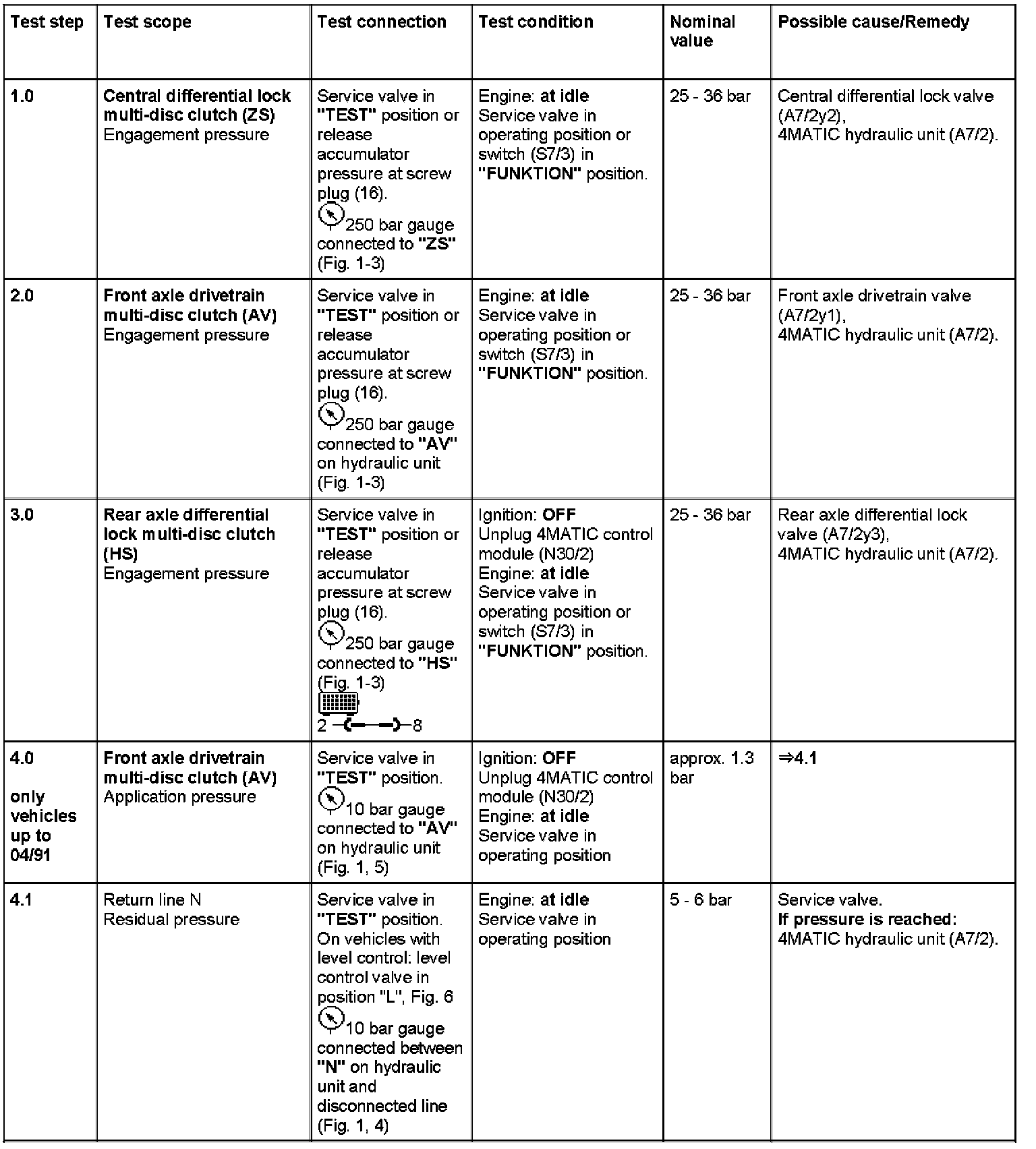

Test Steps 1.0 - 4.1:

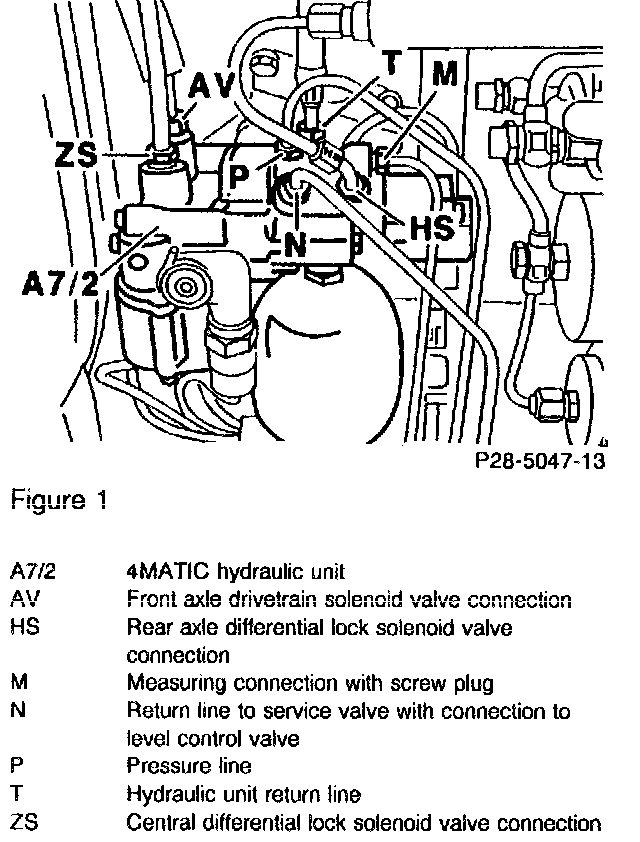

Figure 1:

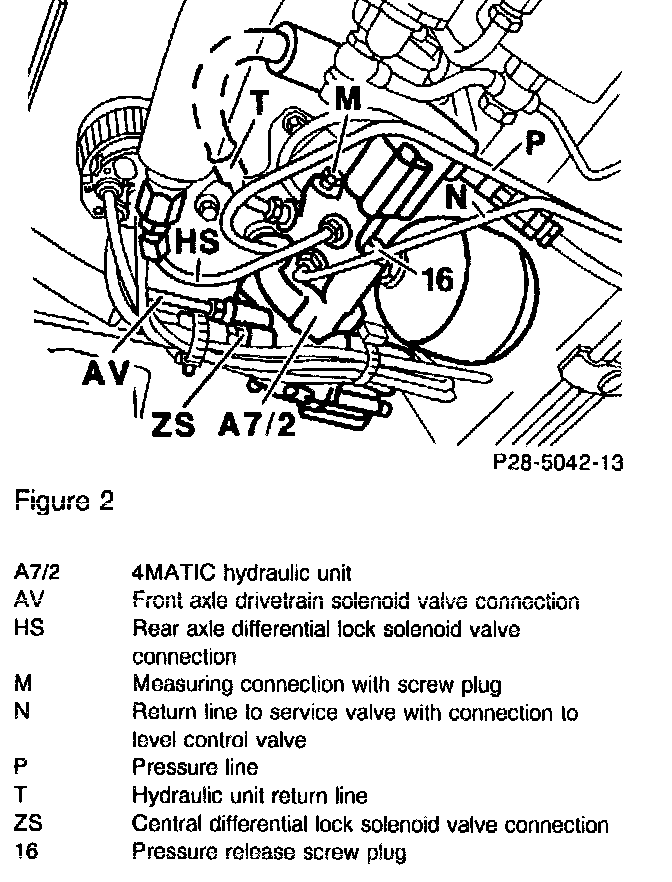

Figure 2:

Figure 3:

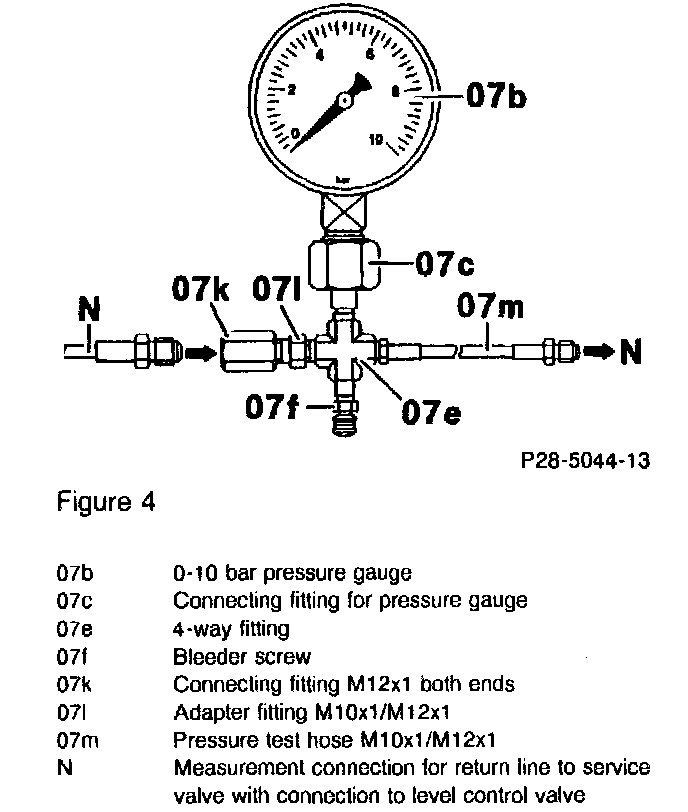

Figure 4:

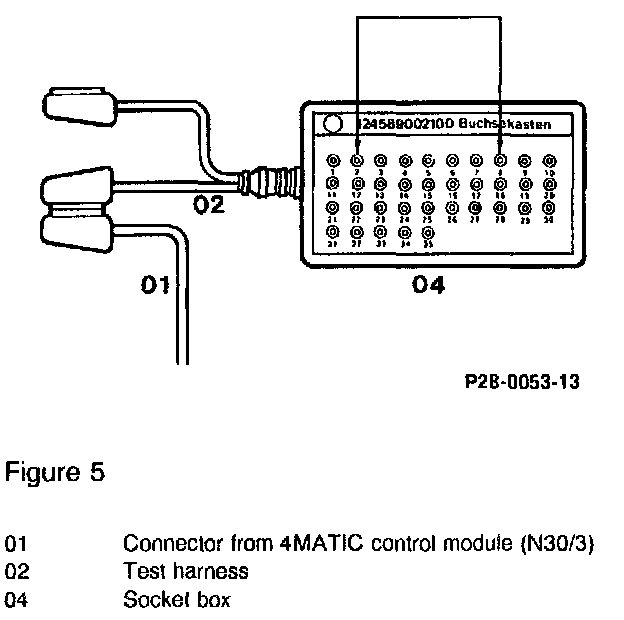

Figure 5:

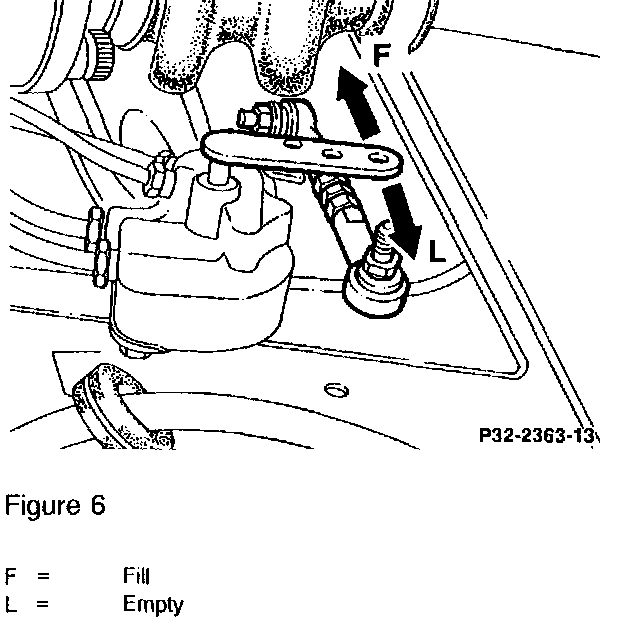

Figure 6:
