A. Dismantling and Assembling (Up to Transfer Case No. 26 616)

Repairing Multi-disk Stack of Center Differential Lock (ZS)

Preceding work:
Sun gear shaft removed (28-300, section A). A. Removal and Installation of Sun Gear Shaft

A. Dismantling and Assembling (up to transfer case no.26 616)

Dismantling and assembling (production up to 05/91)

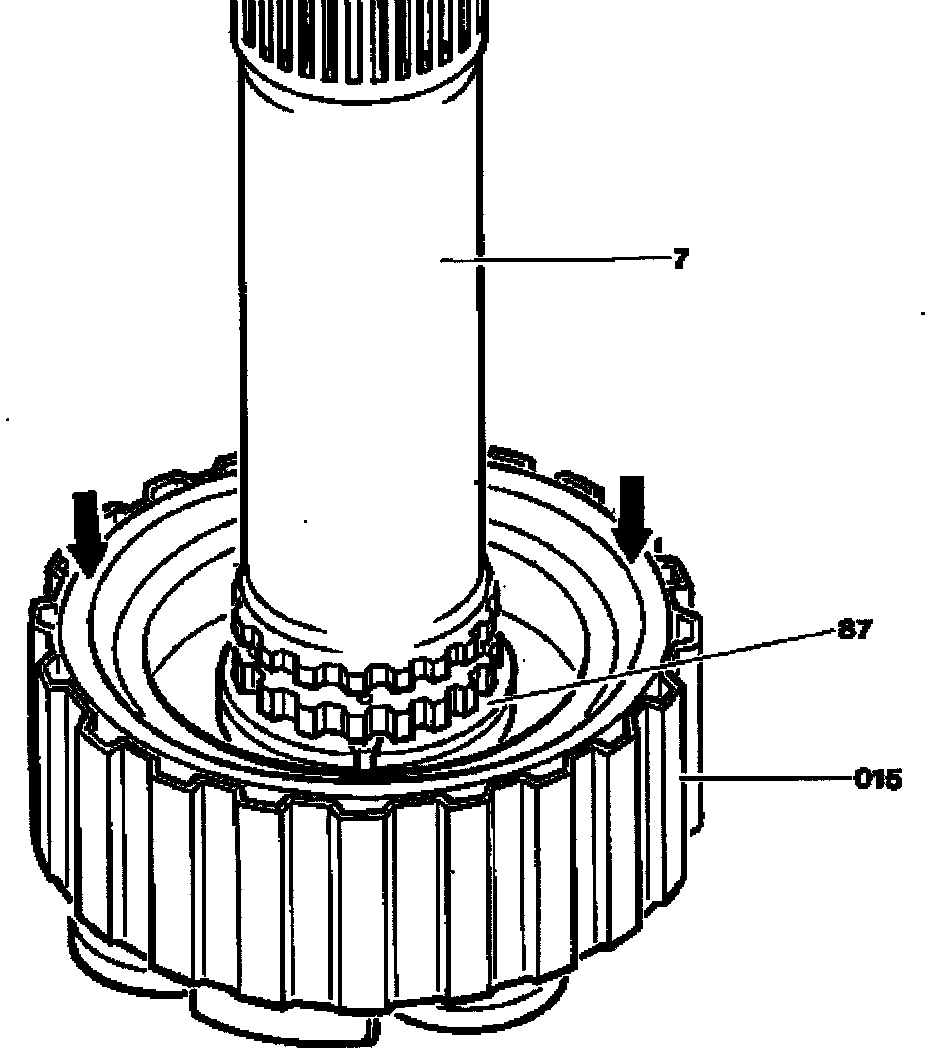

Remove snap ring (87). Mount locator (15) on sun gear shaft (7). Press down multi-disk stack using suitable press at the marked position (arrows). Use Pliers 000 589 52 37 00, Locator 124 589 04 31 00.





Remove inner multi-disk carrier.

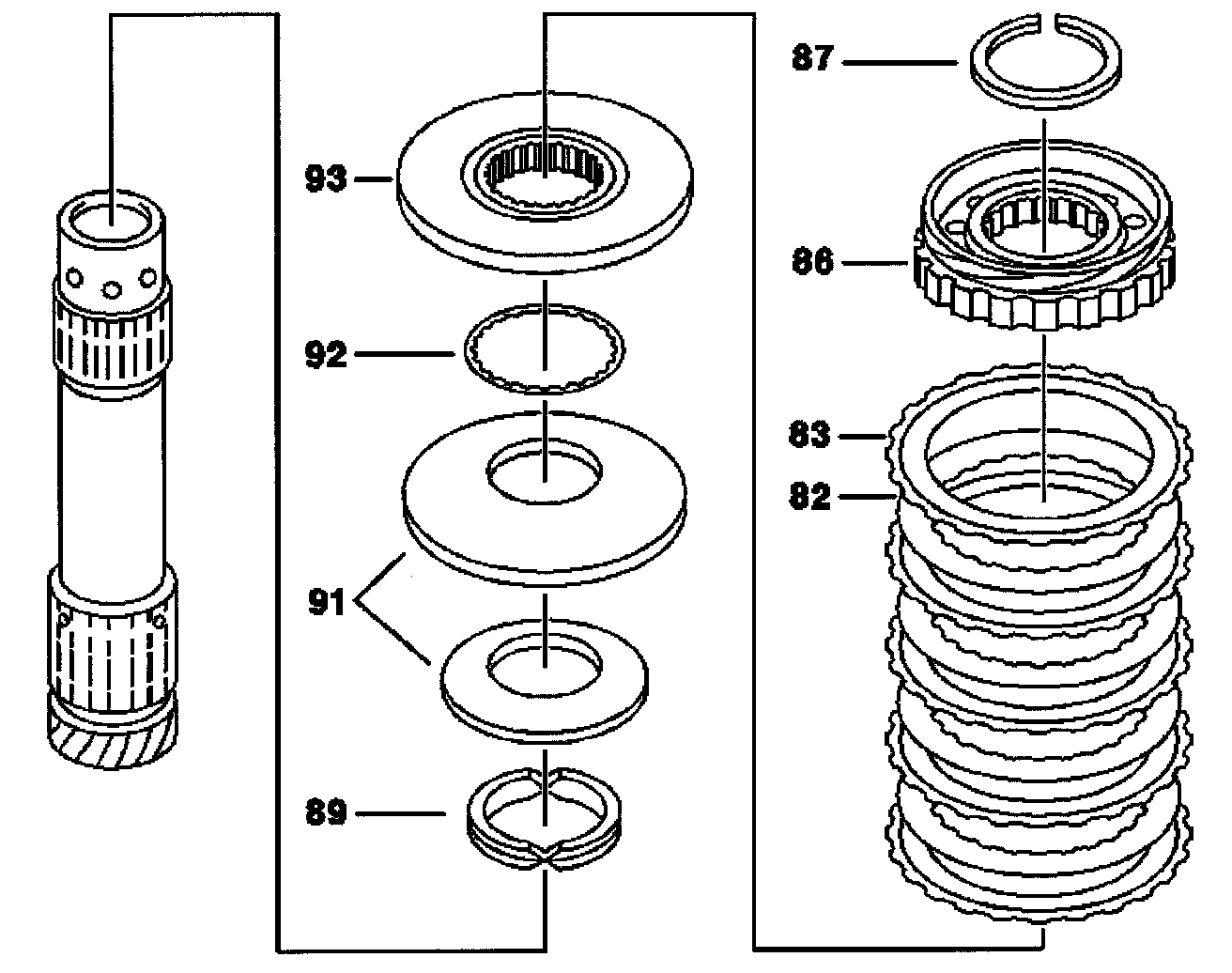

Remove multi-disk stack, check for burnt spots and evidence of settling. When installing, place new multi-disks in ATF oil for approx. 1 hour.

Pressure plate (93). Remove spacer ring (92) and diaphragm spring (91).
Note: The diaphragm spring (91) always consists of two parts, either diaphragm spring with narrow shim or diaphragm spring with support spring.

Remove locking halves (89).

Measure multi-disk stack.

Special Tools:
