K. Removal and Installation of Needle Bearings in Sun Gear Shaft

Dismantling and Assembling Transfer Case

K. Removal and Installation of Needle Bearings in Sun Gear Shaft

Preceding work:
Sun gear shaft removed (28-300, section A). A. Removal and Installation of Sun Gear Shaft

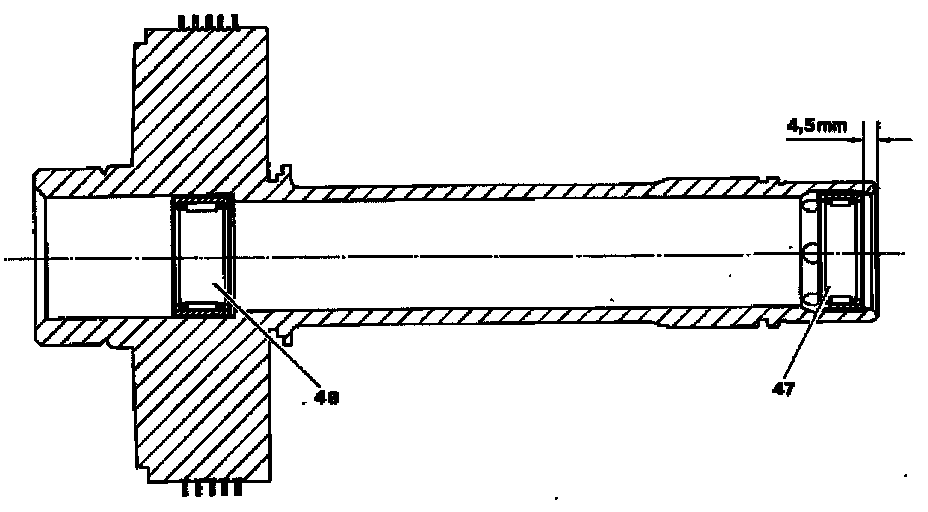

Pull out needle bearing (47). When pressing in, note inset of 4.5 + 0.3 mm.

Pull out needle roller bearing (48). Press in needle roller bearings up to the stop.
