J. Removal and Installation of Bearing Outer Rings From Transfer Case Housing

Dismantling and Assembling Transfer Case

J. Removal and Installation of Bearing Outer Rings from Transfer Case Housing

Preceding work:
Transfer case detached (28-300, section E). E. Detaching and Assembling Transfer Case

Special Tools:

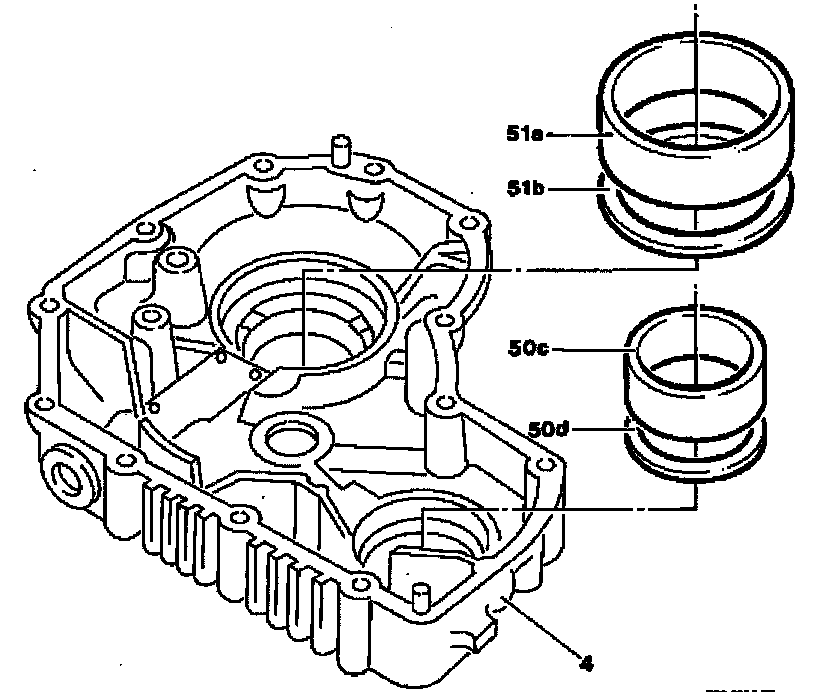

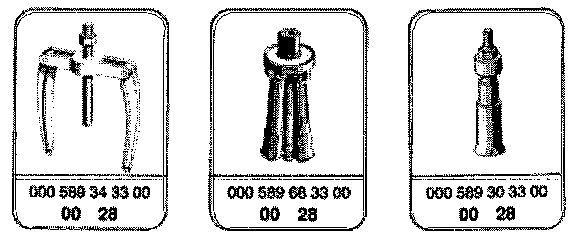

Withdraw bearing outer ring (50c). Press in using suitable mandrel. Support counter steady on the transfer gear housing (4) with two pieces of wood. Use Internal extractor 000 589 30 33 00, Steady 000 589 34 33 00.

Withdraw bearing outer ring (51a). Press in using suitable mandrel. Support counter steady on the transfer gear housing (4) with two pieces of wood. Use Internal extractor 000 589 68 33 00, Steady 000 589 34 33 00.

Remove spacer (50d, 51b).

Measure and adjust bearing plate (28-300, section L). L. Checking and If Necessary Adjusting Bearing Play

Note: When installing new bearing outer rings the spacers which have been removed are to be reinstalled
