E. Detaching and Assembling Transfer Case

Dismantling and Assembling Transfer Case

E. Detaching and Assembling Transfer Case

Preceding work:
Sun gear shaft removed (28-300, section A). A. Removal and Installation of Sun Gear Shaft
Center differential lock (ZS) pinton removed (28-300, section B). B. Removal and Installation of Center Differential Lock (ZS) Piston
Outer multi-disk carrier of front axle drive train (AV) removed (28-300, section C). C. Removal and Installation of Outer Multi-Disk Carrier of Front Axle Drive Train (AV)





Unscrew hydraulic connection of center differential lock (ZS), 40 Nm.

Unscrew bolts (68), 28 Nm.

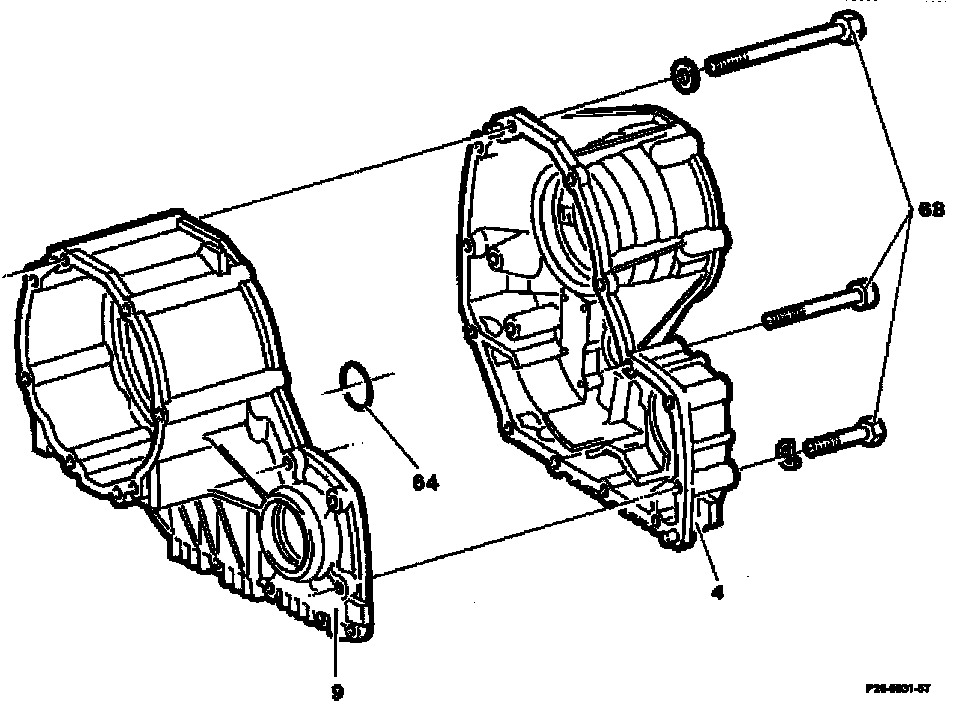

Detach transfer case housing (4) at intermediate housing (9). Note dowel pins.

Clean sealing surfaces. Coat liquid seal gasket in accordance with DBL 793 820.

Replace 0-ring (64).

Lubricate tapered roller bearing lightly.
