Shifter M/T: Service and Repair

Removal and Installation of Center Shift

















Removing, installing

1 Move transmission into neutral

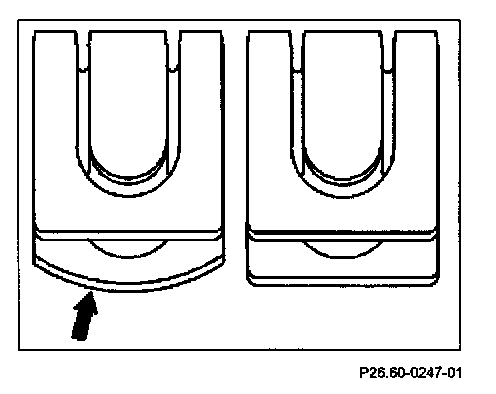

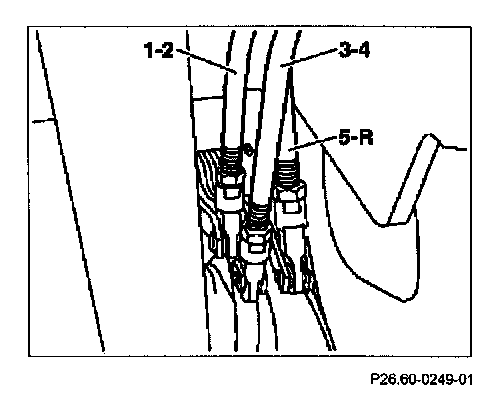

2 Disengage, engage (1-2, 3-4, 5-R) at the intermediate shift levers
3 Remove cover on shift lever

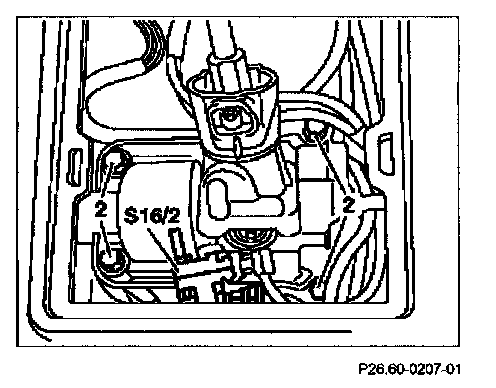

4 Disconnect plug connection on reversing light switch (S16/2)
5 Unclip control cable of parking brake to the side
6 Loosen hexagon nuts and remove bearing bracket
7 Install in reverse sequence
8 Adjust center shift
