Driveshaft Flange - Special Tool

REF. NO. 58/79

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: July 1990

SUBJECT:
NEW THREE AND FOUR HOLE DRIVESHAFT FLANGE PULLER

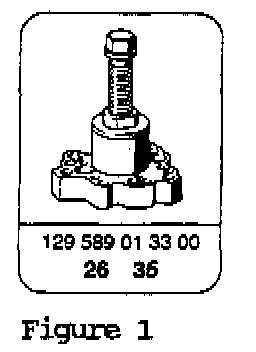

A new puller tool, 129 589 01 33 00 is available for the four hole drive shaft flange with 110 mm bolt circle on model 129.066 and the three hole driveshaft flange with 100 mm bolt circle on model 124.051 (Figure 1).

This new puller replaces tool 116 589 19 33 00 and is valid for all models, in addition to the two listed above. As on the previous tool, the puller is attached to the flange using the driveshaft bolts.

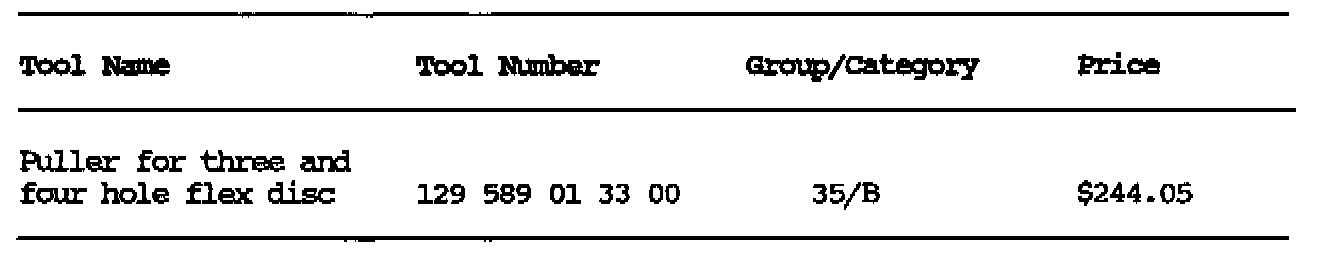

Special Tool Information
