Transmission Crossmember Shims

TRANSMISSION CROSSMEMBER SHIMS




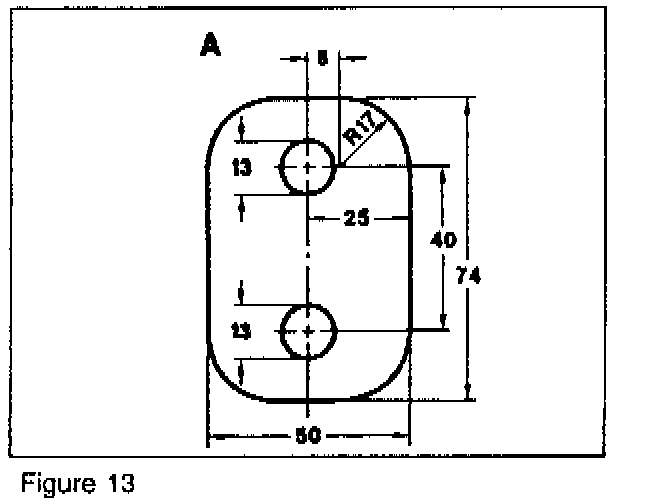

A Model 124 with engines 103,104, 602, 603, 606 and automatic transmission.




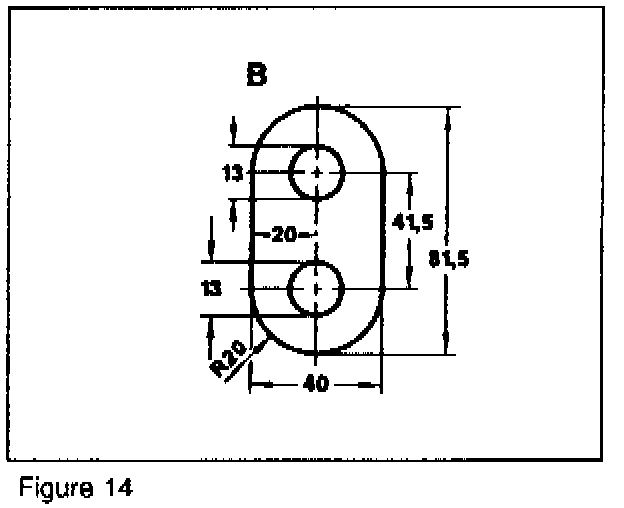

B Model 201 with engine 103 and automatic transmission




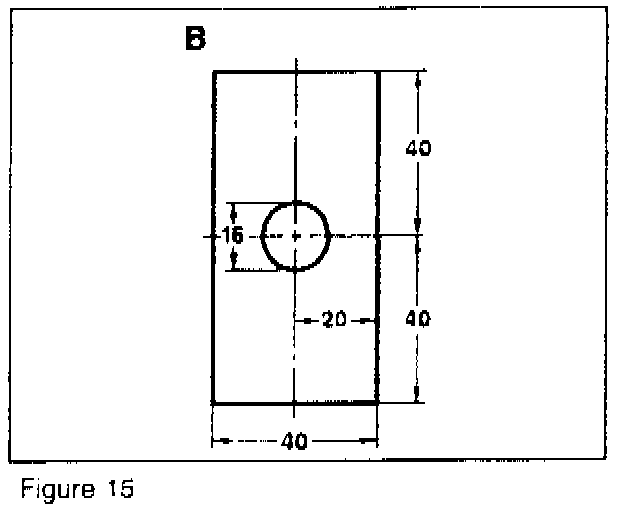

B Model 201 with engines 102 601, 602 and automatic transmission




Model 202

A = left side
B = right side





Models 124.034/036, 140 and 202:

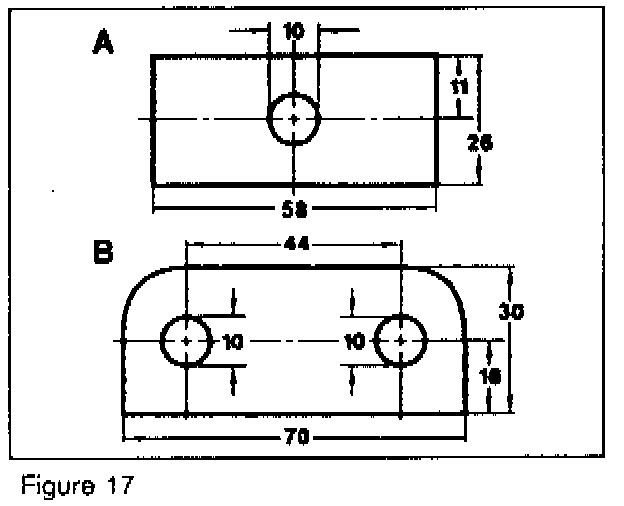

Use shims of calculated thickness (A, B, Figure 17).

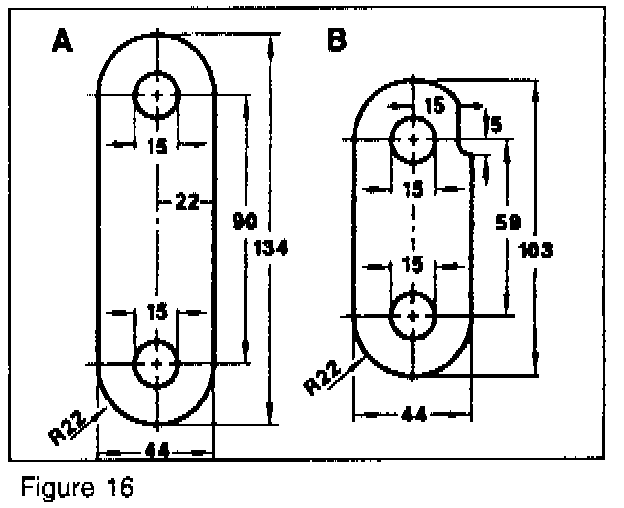

A Models 124.034/036, 202 (2 each) and 140 front (1 each)

B Model 140 rear (1 each)

Models 124 (except model 124.034/036)129, 201, use aluminum shims between transmission mount and transmission crossmember of 4 mm and 5 mm thickness, part number 116 242 03 26 or 116 242 02 62. see Parts Information.

ALL MODELS

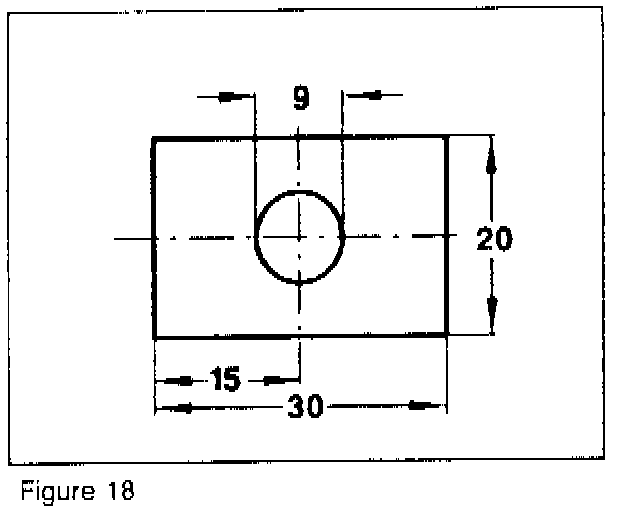

Shim between center bearing and frame floor




On model 124, lowering of the center bearing is permitted in critical cases only as a last resort. Due to the inclined installation of the center bearing, side loading of the center bearing will be adversely effected.

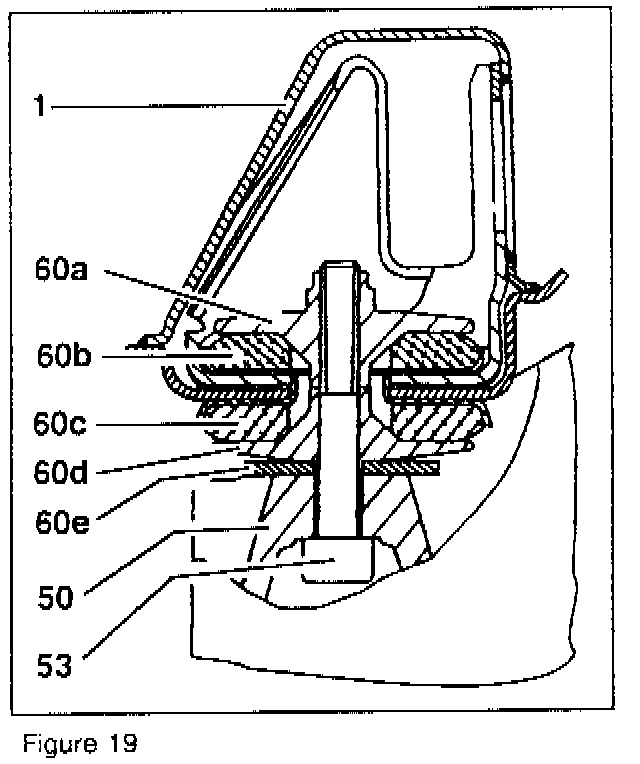

Distance shims (60e) to be used between the rear axle center piece and mount (60a-60d) are available in 1, 2, 3 and 4 mm thickness (see Parts Information).
