Rear
Removal & Installation of Rear Axle Flange With Angular Ball Bearing
Preceding work
Remove, install wheels

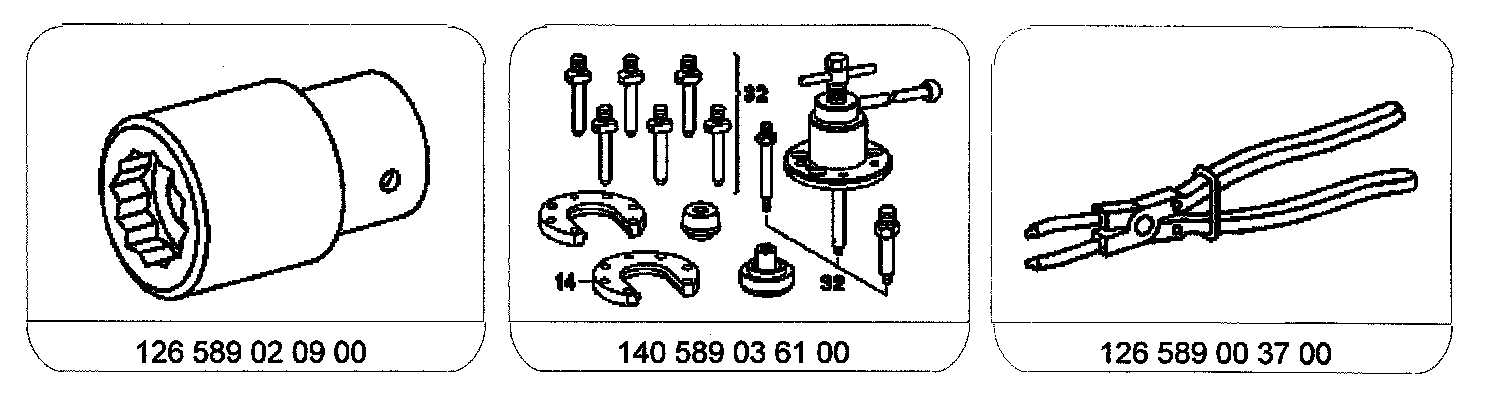

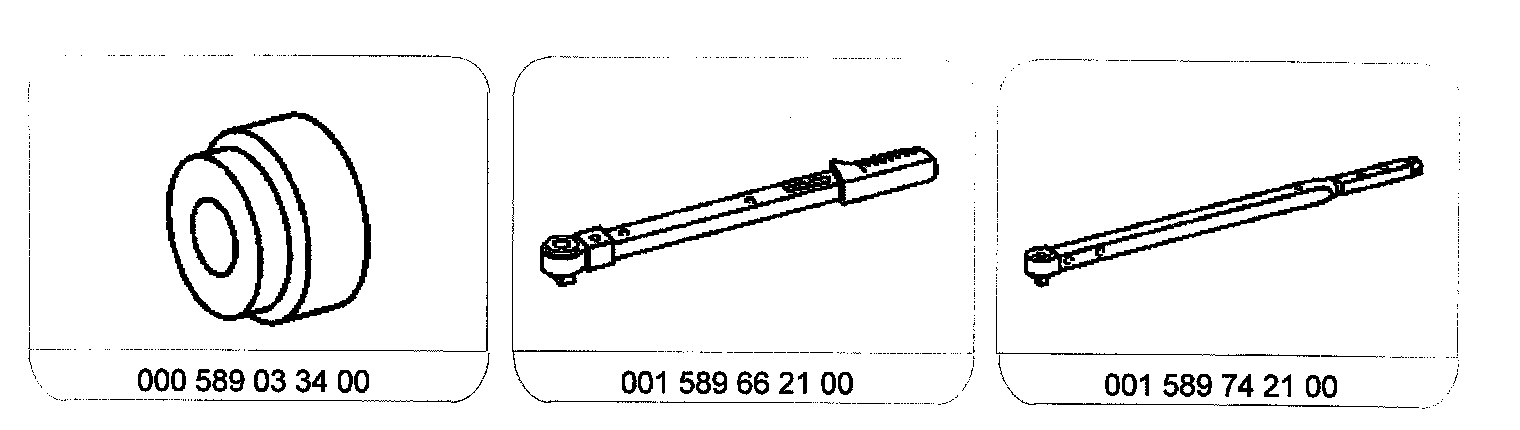

Special tools
Note Work can also be carried out on the mounting of the rear axle shaft flange when the rear axle is installed.

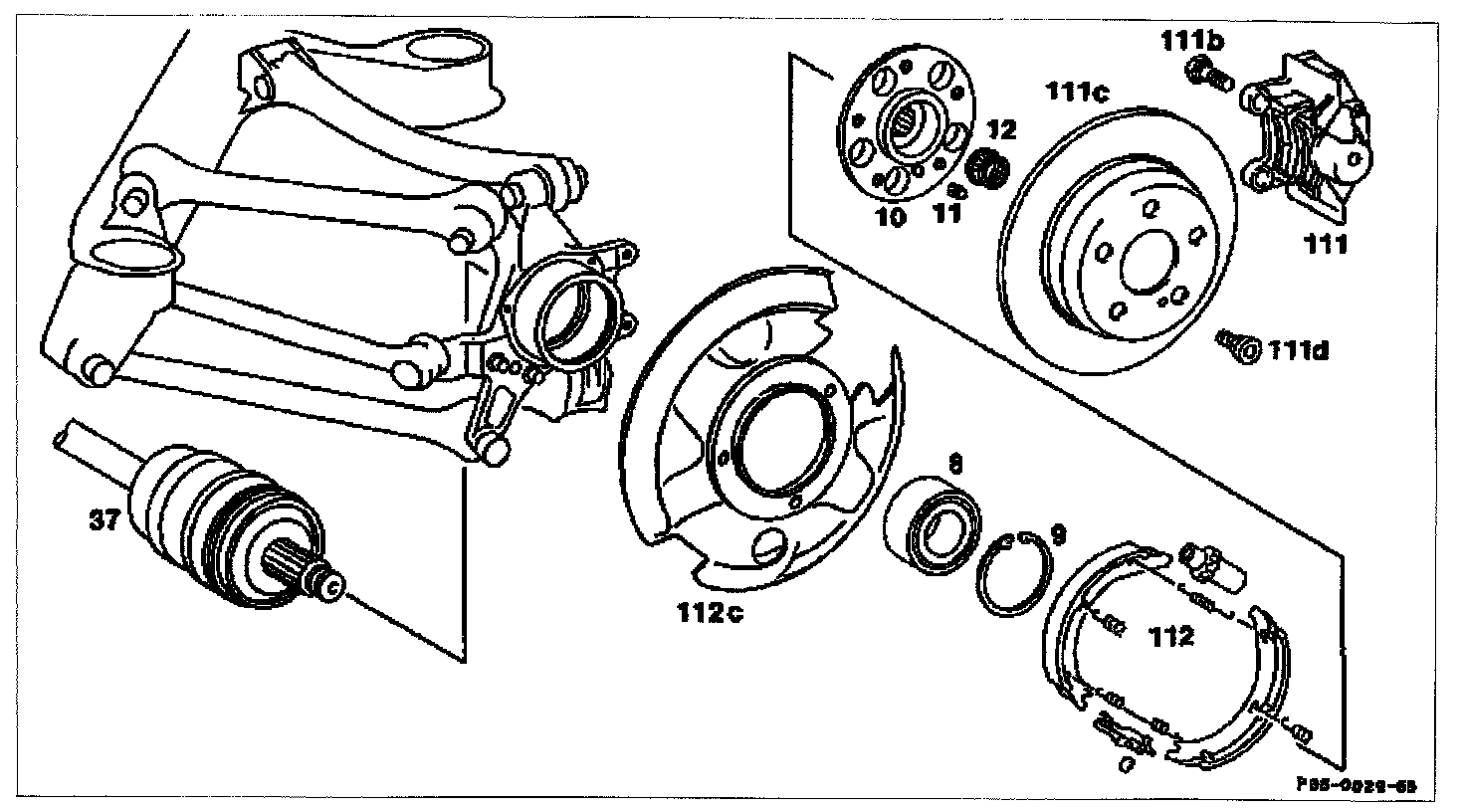

7 Wheel carrier
8 Two-row angular-contact ball bearing
9 Circlip
10 Rear axle shaft flange
11 Parallel pin
12 Twelve-point collar nut

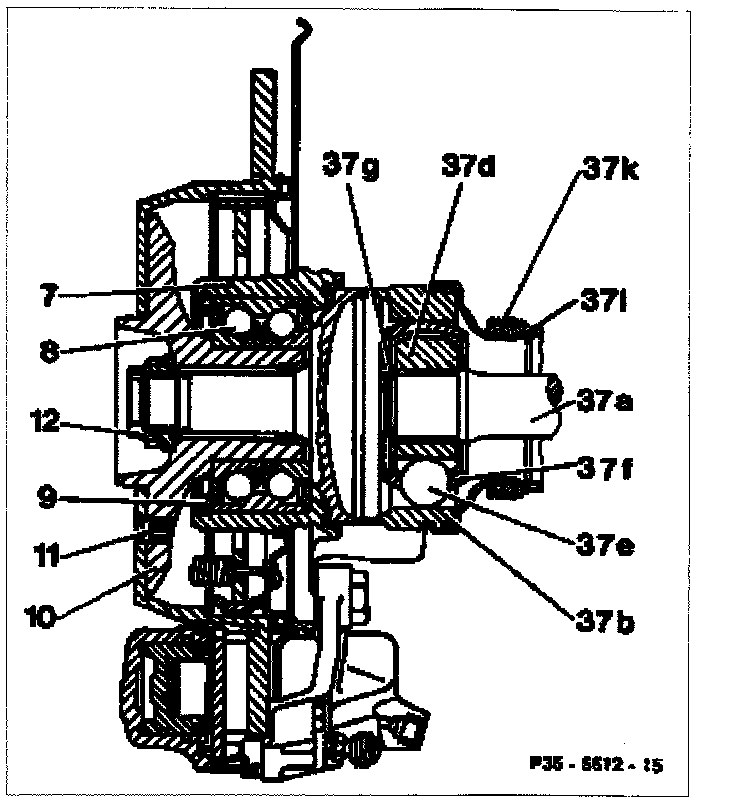

37a Rear axle shaft
37b Outer joint race
37d Joint hub
37e Ball
37f Ball cage
37g Circlip
37k Hose clamp
37l Rubber cup seal
Removal, installation
1. Remove, install rear axle shaft, refer to Drive Axles, Bearings and Joints - Axle Shaft Assembly - Axle Shaft - Service and Repair - Procedures Service and Repair

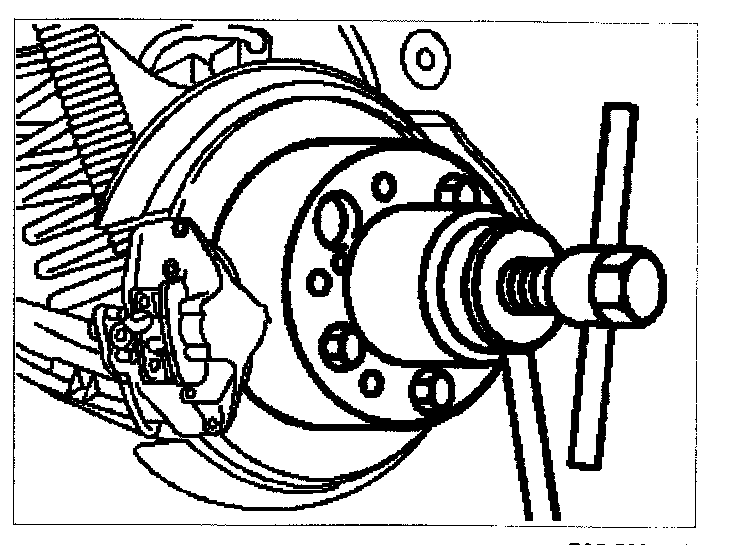

2. If it is tightly seated, use extractor/pulling-in equipment 140 589 03 61 00 to press rear axle shaft out of rear axle shaft flange.
3. Remove, install brake calliper (111) and suspend on a hook, refer to Brakes and Traction Control - Disc Brake System - Brake Caliper - Service and Repair - Procedures Service and Repair
Installation note

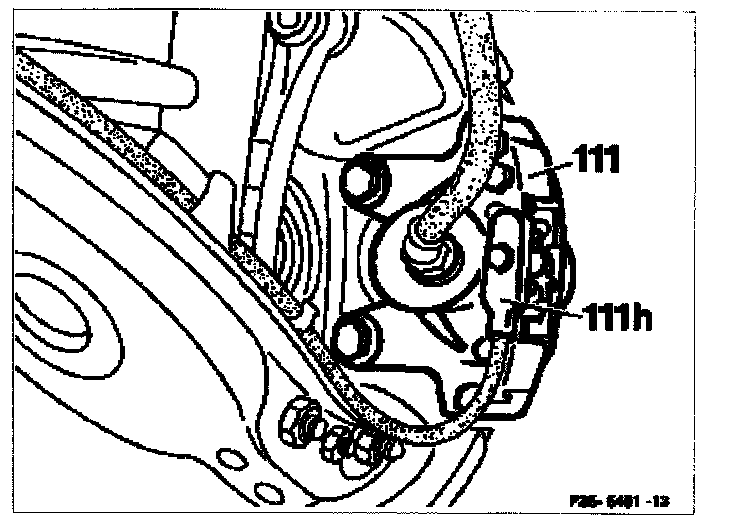

Replace self-locking hexagon bolt. Install brake hose and, on vehicles with ASR, install electric cable of wear indicator (111h) without twisting.

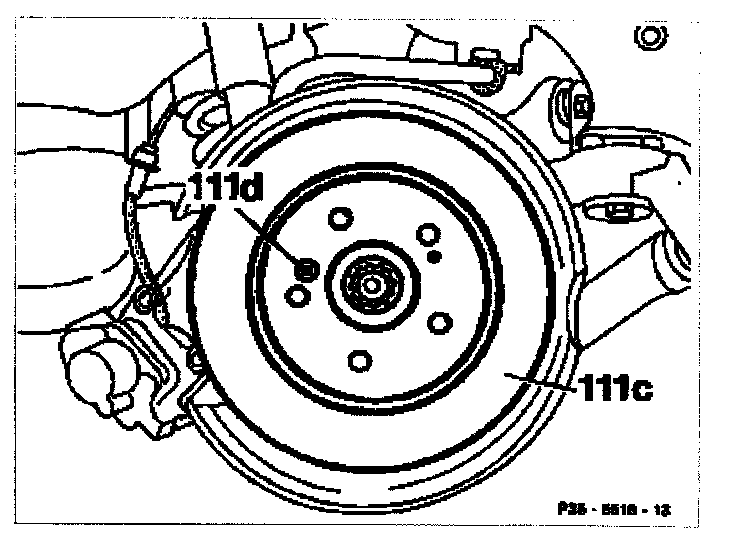

4. Remove, install brake disk (111c), refer to Brakes and Traction Control - Disc Brake System - Brake Rotor/Disc - Service and Repair - Procedures
Installation note
Replace self-locking hexagon socket bolt (111d).
5. Remove, install brake shoes (112) of parking brake.
7 Wheel carrier
8 Two-row angular-contact ball bearing
10 Rear axle shaft flange
010 Extractor/pulling-in equipment
010a Thrust piece
010b Set bolt
010c Threaded bolt
010d Support plate

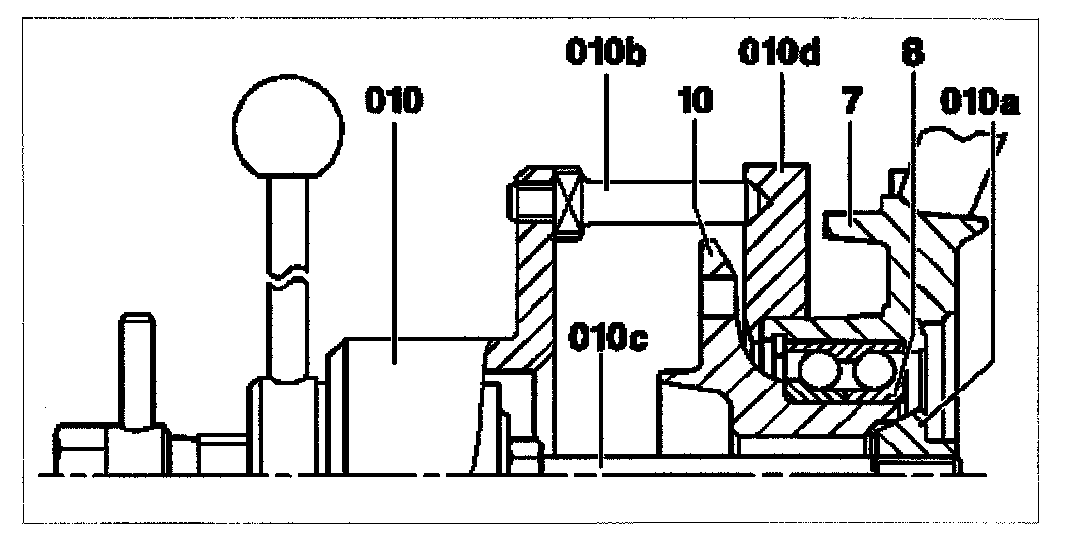

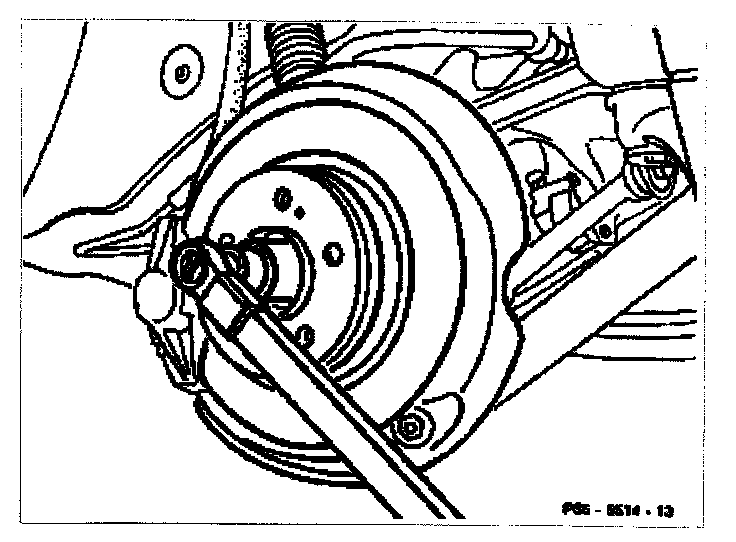

6. Using extractor/pulling-in equipment (010) 140 589 03 61 00 with set bolt (010b) and thrust piece (010a), pull rear axle shaft flange (10) out of angular-contact ball bearing (8) and remove.
Installation note

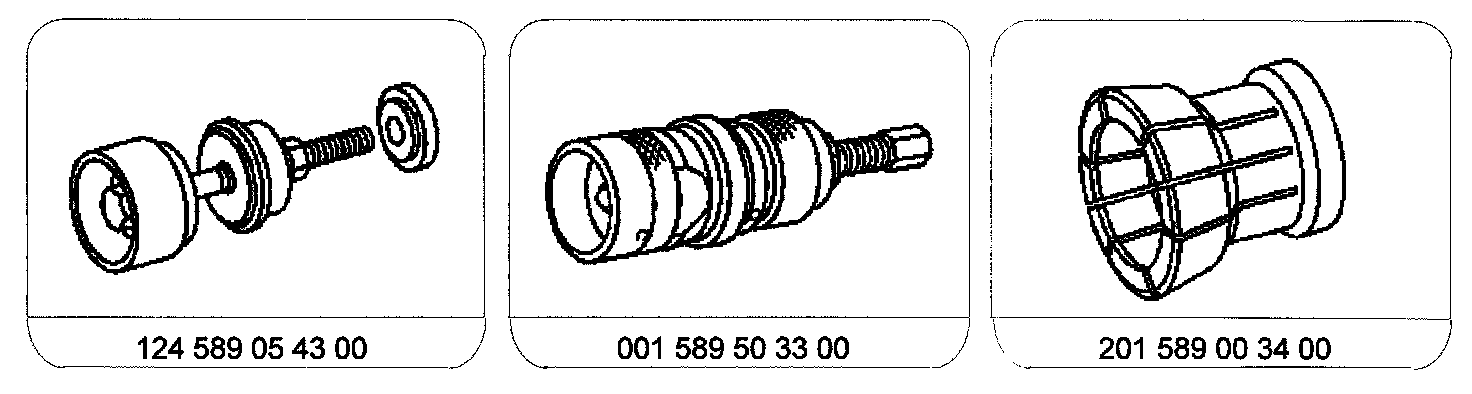

Using extractor/pulling-in equipment (08a, 08b, 08c and 08e) 124 589 05 43 00 draw rear axle shaft flange (10) into two-row angular-contact ball bearing (8).
Caution:

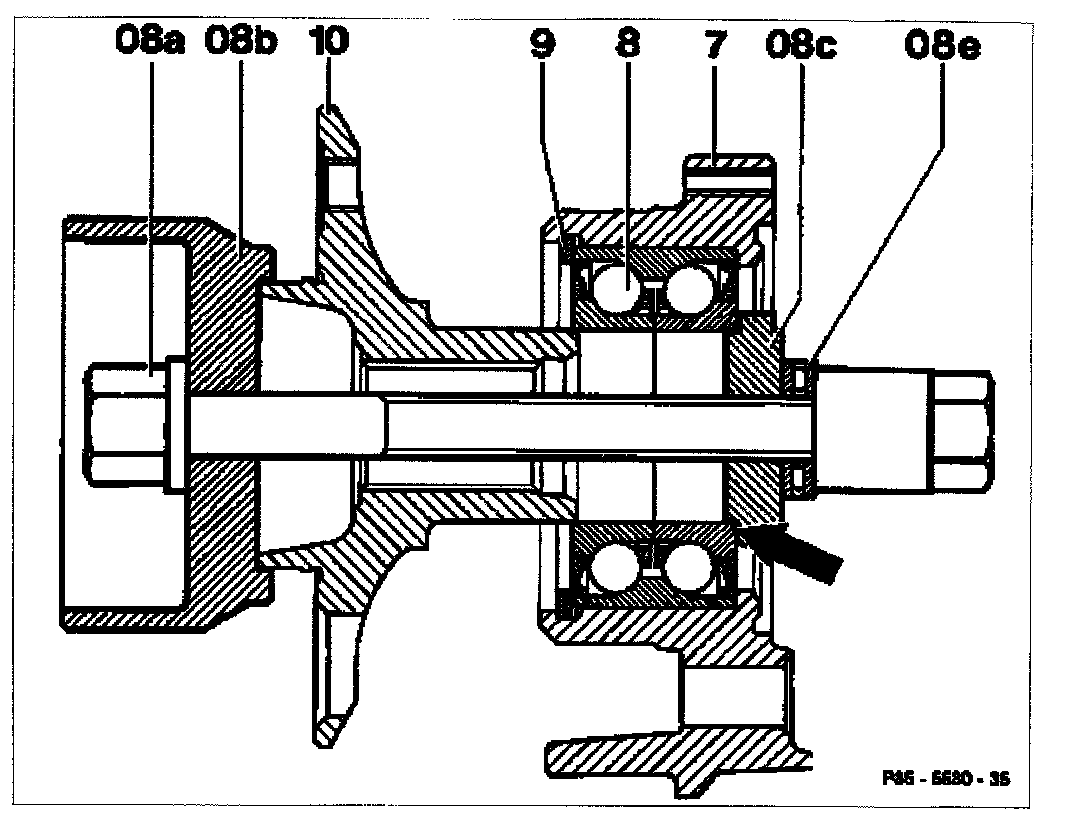

During the pulling-in process, the thrust washer 124 589 05 43 00, part 03 (08c) must fit tightly against the bearing inner race (arrow). In the case of the two-row angular-contact ball bearing, use the thrust washer side of 45 mm dia. (smaller dia.) and in the case of the two-row angular-contact roller bearing, use the thrust washer side of 49 mm dia. (larger dia., Tmodel only).
7 Wheel carrier
8 Two-row angular-contact ball bearing
9 Circlip
10 Rear axle shaft flange
08a Hexagon bolt with collar nut
08b Extractor/pulling-in sleeve
08c Thrust washer (small, 45 mm dia.)
08e Thrust bearing

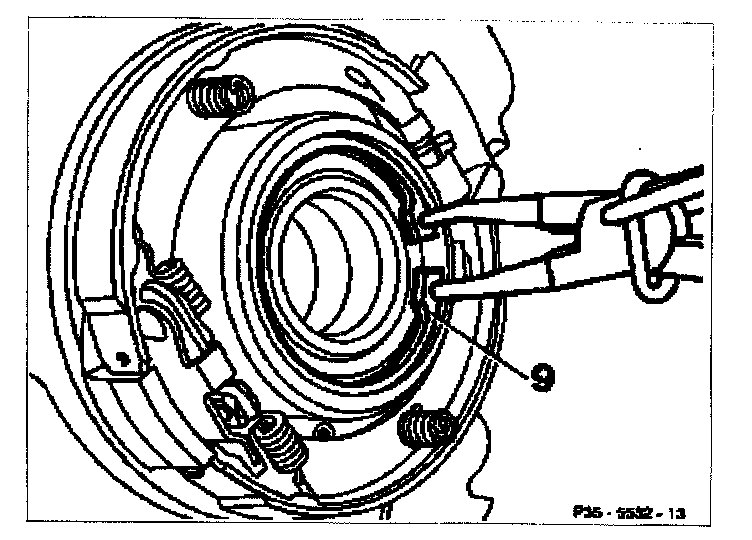

7. Remove circlip (9) from wheel carrier using circlip pliers 126 589 00 37 00.
Installation note
Ensure correct seating of the circlip in the wheel carrier.
7 Wheel carrier
8 Two-row angular-contact ball bearing
08a Hexagon bolt with collar nut
08b Extractor/pulling-in sleeve
08c Thrust washer (small, 45 mm dia.)
08e Thrust bearing

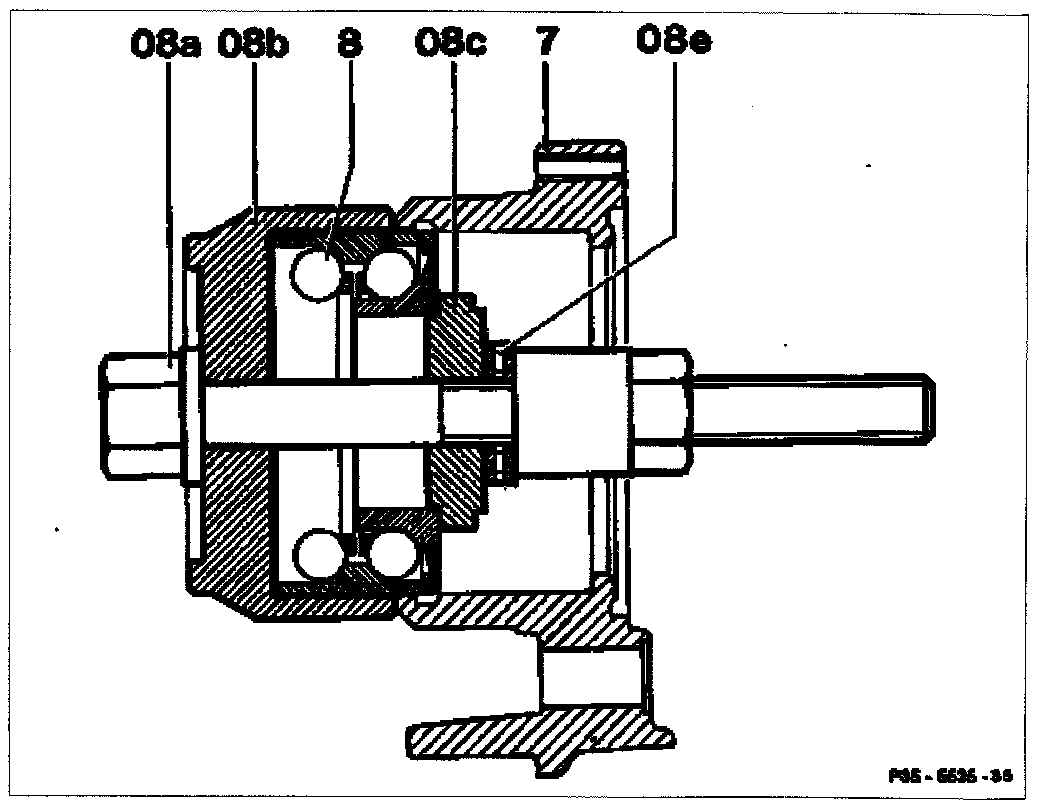

8. Using extractor/pulling-in equipment (08a, 08b, 08c and 08e) 124 589 0543 00, pull two-row angular-contact ball bearing (8) out of wheel carrier (7) and remove.
Installation note

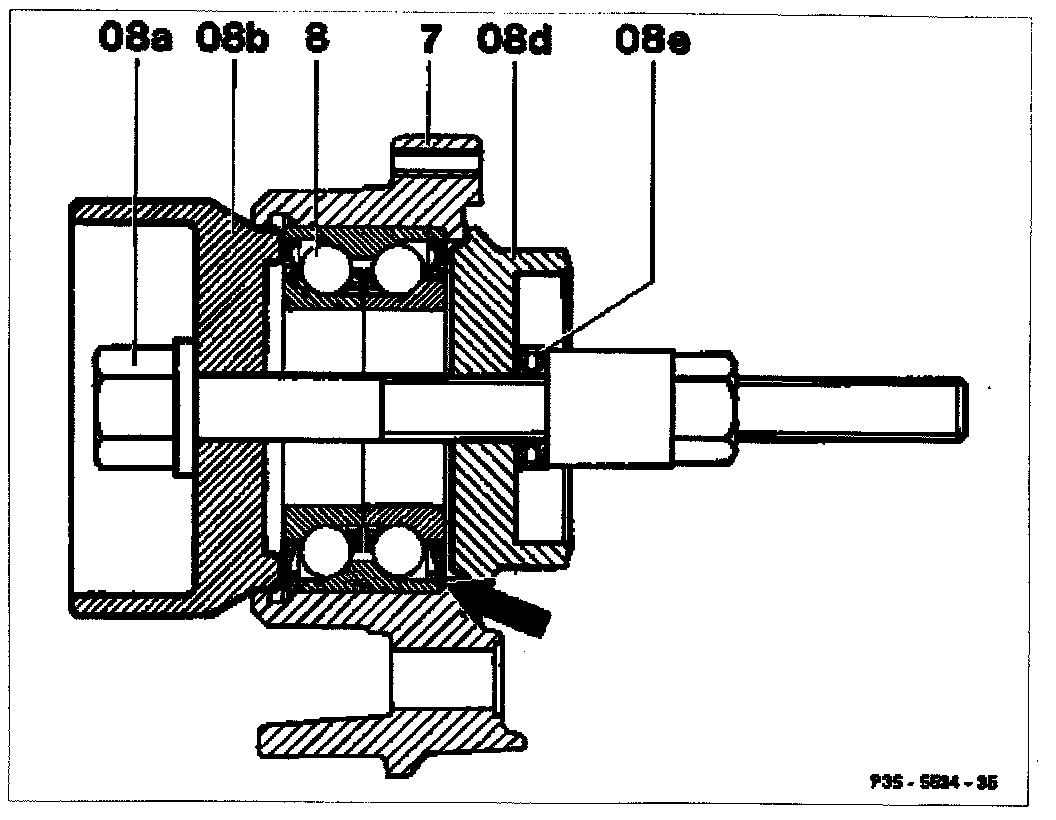

Using extractor/pulling-in equipment 124 589 05 43 00 (08a, 08b, 08d and 08e), pull two-row angular-contact ball bearing (8) into wheel carrier (7) until this contacts the edge (arrow).
7 Wheel carrier
8 Two-row angular-contact ball bearing
08a Hexagon bolt with collar nut
08b Extractor/pulling-in sleeve
08d Thrust washer (large)
08e Thrust bearing

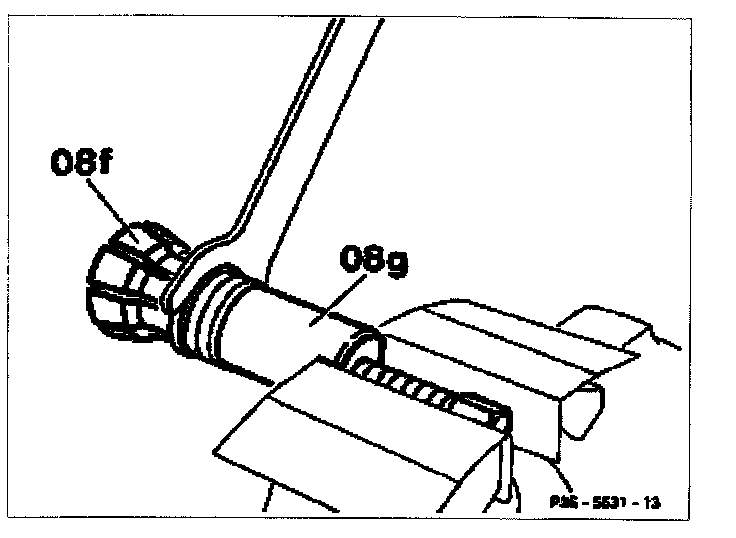

9. Screw collet chuck (08f) 201 589 00 34 00 onto basic puller equipment (08g) 001 589 50 33 00 or 001 589 36 33 00 and tighten with 55x65 open end wrench 140 589 00 01 00

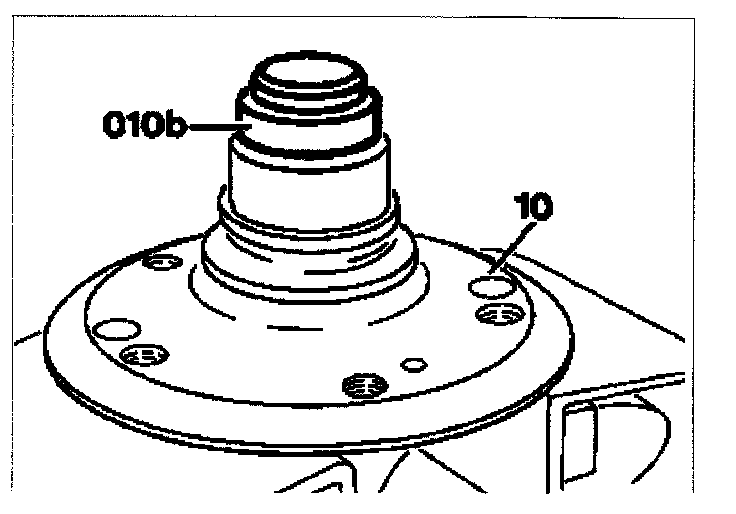

10. Using aluminium jaws clamp rear axle shaft flange in vise. Place thrust piece (010b) 000 589 03 34 00 with large diameter on rear axle shaft flange (10).

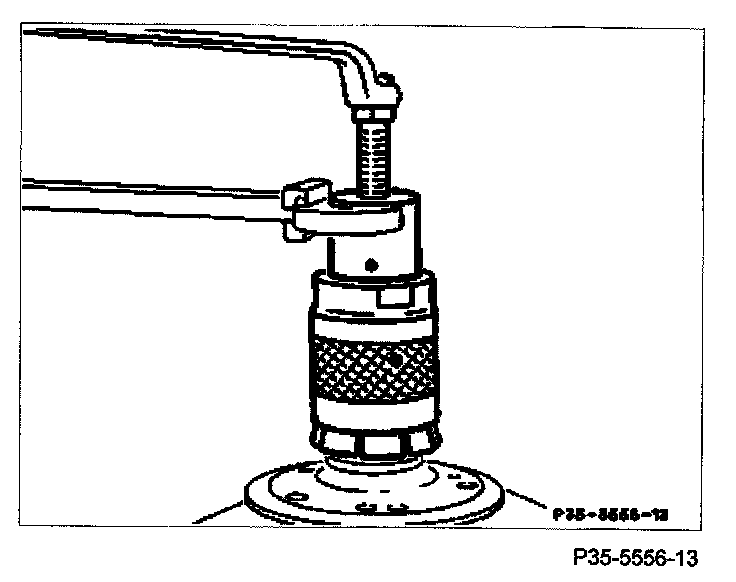

11. Clamp puller on bearing inner race, using puller 001 589 50 33 00 or 001 589 36 33 00 and collet chuck 201 589 00 34 00 pull bearing inner race off rear axle shaft flange. 41 mm open end wrench 201 589 00 01 00.
Testing
12. Check all parts to make sure they can be reused. Check radial and lateral runout of rear axle shaft flange (nominal value 0.03 mm). Always replace two-row angular-contact ball bearing after it has been used once.
13. Install in reverse sequence.
