Vehicles With Program Selector Switch

Control pressure cable lock (arrow)

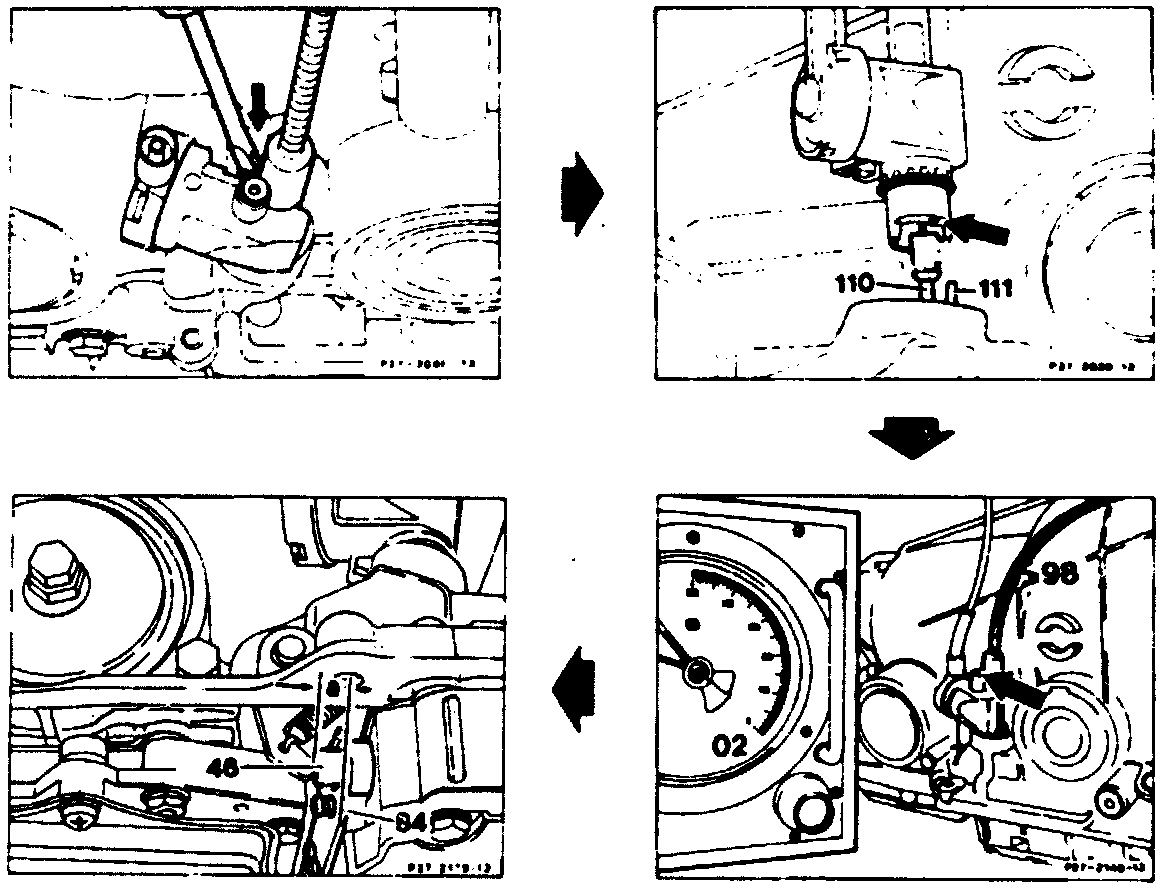

Unscrew with a screwdriver and detach from connecting rod (110). Remove transmission oil pan to install. Hook connecting rod (110) onto control pressure cable (98). Feed limiting rod (111) into bore (arrow) and insert control pressure cable. Rotate control pressure cable until lock engages.

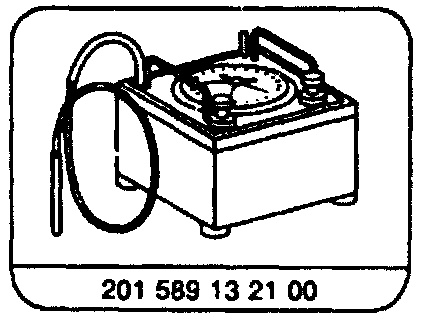

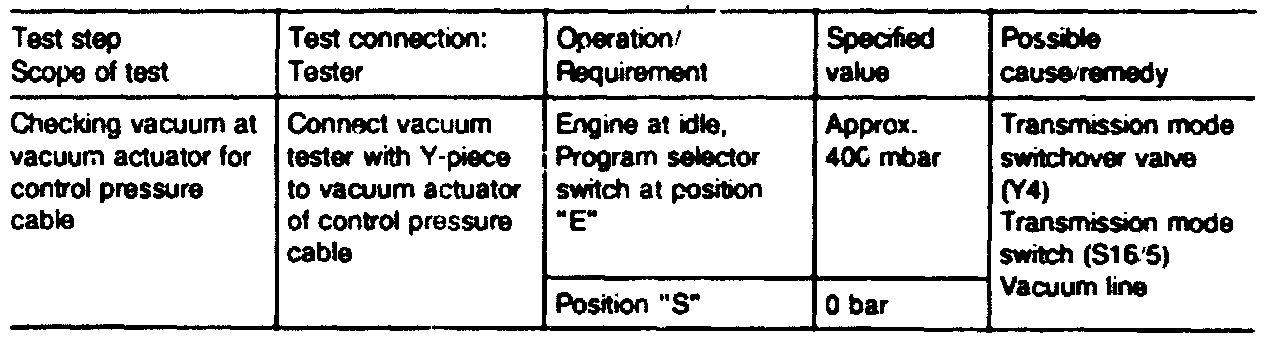

Tester (02) 201 509 13 21 00
Connect to vacuum actuator and apply vacuum. Pull control pressure cable as far as full-load stop.
Distance "a"
Measure between front face of control pressure valve (46) and closure plate (84). Specified value: 8 mm on 4-cylinder engines. 6 mm on 6-cylinder engines. Adjust distance "a" as necessary with hexagon socket bolt (arrow).

Special Tool:

NOTE: Phased in as of 07/93. a standardized control pressure cable has been fitted in the body. The control pressure cable with 2 vacuum actuators in the plastic housing is also used for the transmission which does not need the two vacuum actuators.

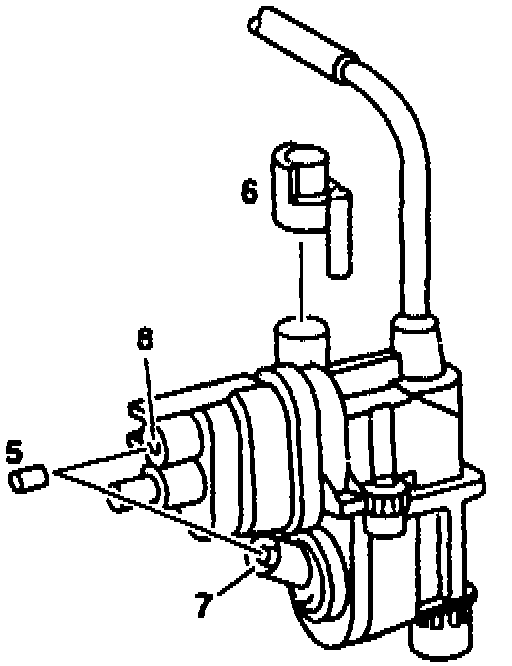

5 Blind plug
6 Cap
7 Vacuum actuator with selector program
8 Vacuum actuator with upshift delay

The upshift delay vacuum actuator (8) should be sealed with a blind plug (5) to prevent contamination. The vent connection is to be provided with a cap (6).
