Noise
>>
Complaint
>>
Howling or Singing Noise From Torque Converter/Primary Pump
Howling or Singing Noise From Torque Converter/Primary Pump
CAUSE:

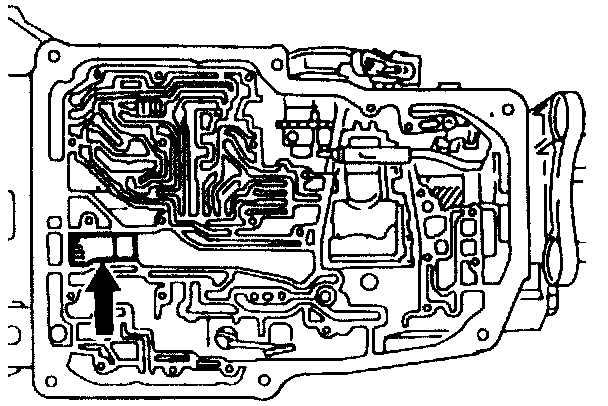

Oil deflector (arrow) cracked or broken.
REMEDY:
Remove valve body and large intermediate plate.
Replace oil deflector (arrow, illustration).
