Buzzing or Clicking From Cold Start, Delayed Upshift Function

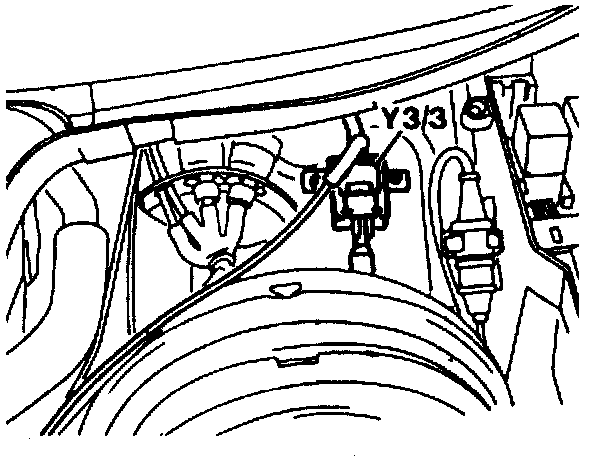

Y3/3:






CAUSE:
Upshift delay switchover valve (Y3/3).

REMEDY:
Mount Upshift delay switchover valve (Y3/3) on two rubber mounting buffers.

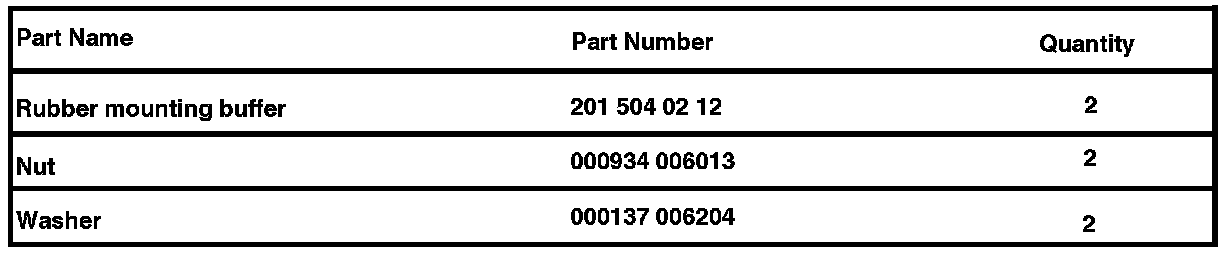

Part Information:
