Components of the Shift Body Housing

A Shift valve housing
B Accumulator housing Selector valve

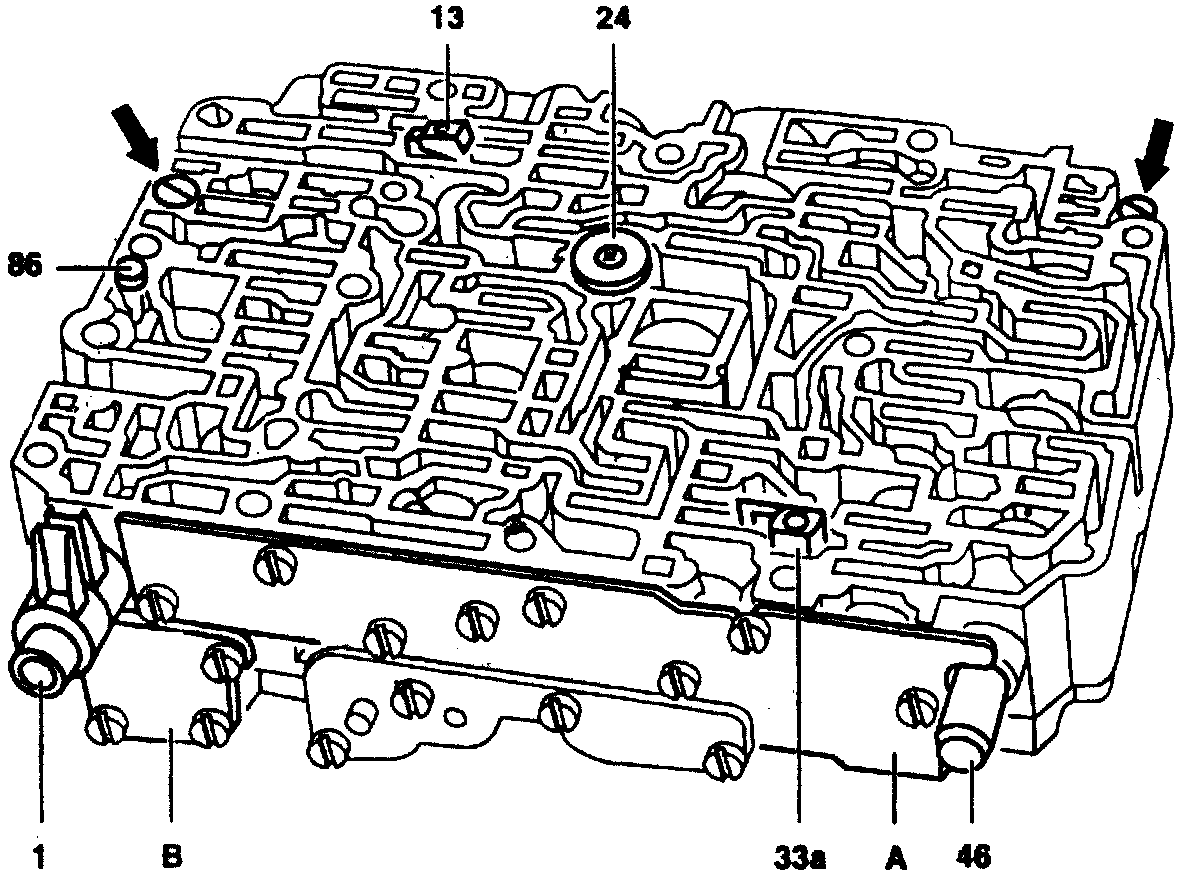

13 Plate-type check valve with bore
24 Primary pump check valve (not installed as of omission of secondary pump, 1992)
33a shift valve B2 particle screen filter
48 Control pressure regulating valve plunger

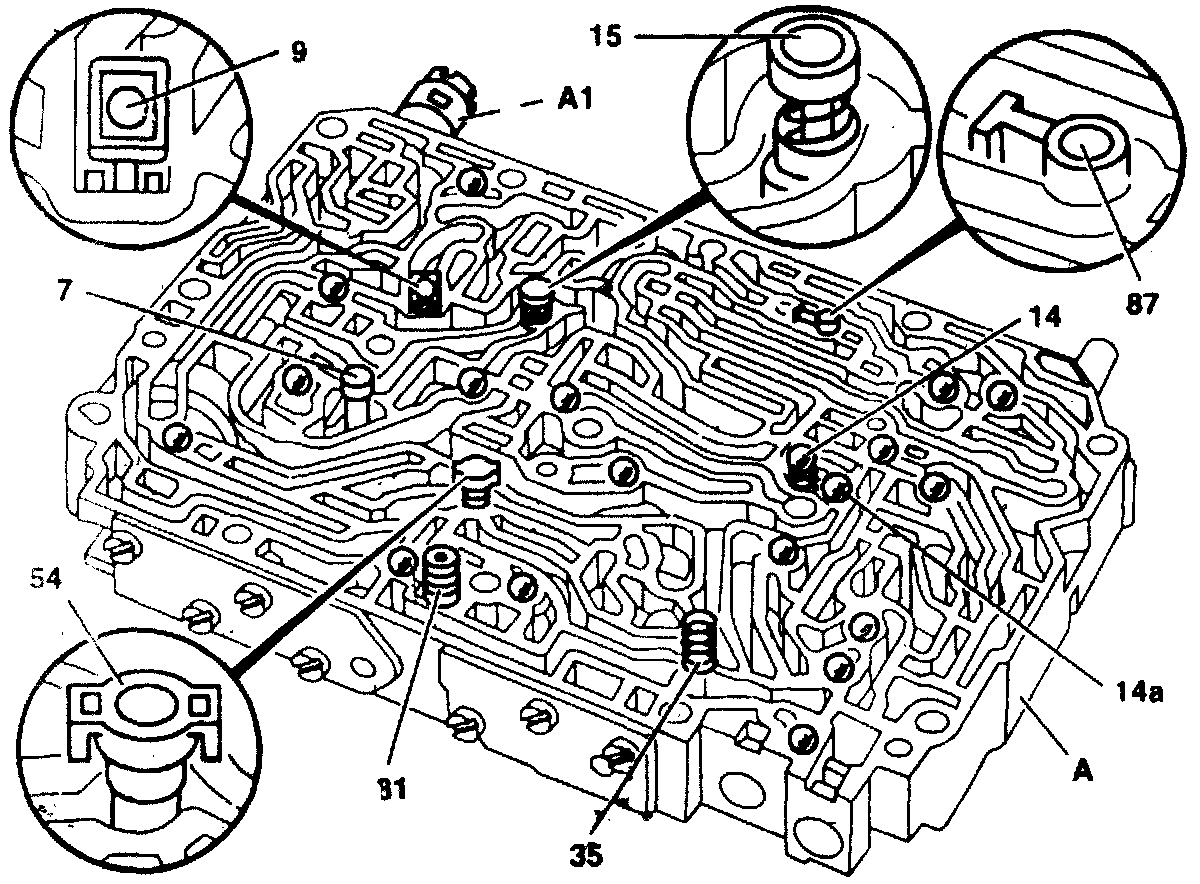

A Shift valve housing
A1 Selector valve (1)
7 Shut-off valve K1
9 Plate-type check valve without bore
14 Valve body balls (17 or 18 each)
14a Valve body ball for "R", Accumulator switching on (53) (not installed as of transm. no 3 747000)
15 Pressure valve
35 Shift pin, lubricating pressure
54 Check valve
81 Screen filter
87 Throttle valve K2

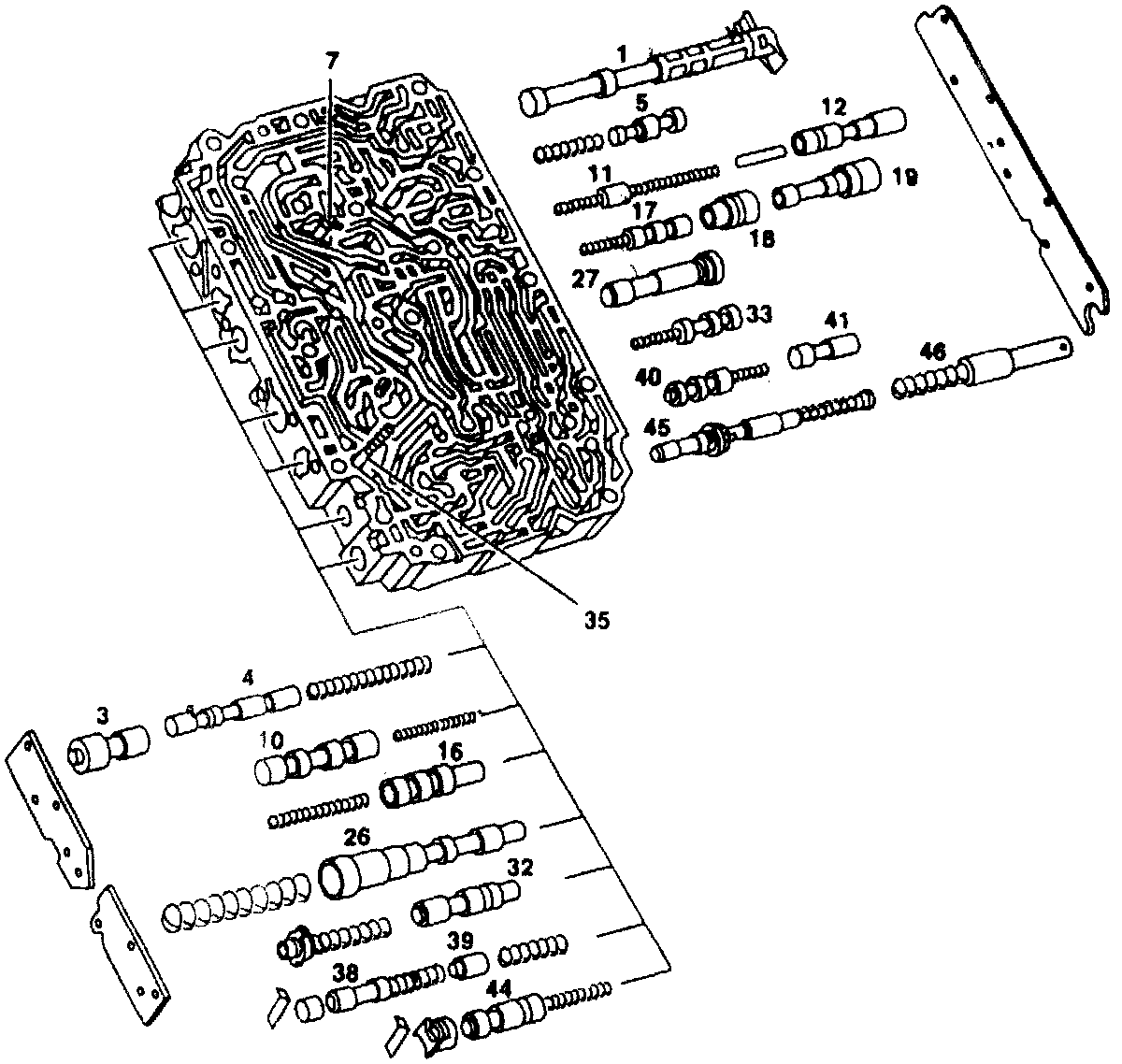

1 Selector valve
3 Plunger, command valve 2-3
4 Command valve 2-3
5 Control valve, convertor adaption
7 Shut-off valve K1
10 Shift valve B1
11 Plunger, command valve 3-4
12 Command valve 3-2
16 Control valve, basic pressure
17 Command valve 1-2
18 Sleeve, command valve 1-2
19 Plunger, command valve 1-2
26 Control valve, working pressure
27 Plug, shift valve bridging clutch
32 Control valve, full-throttle
33 Shift valve B2
35 Shift pin, lubricating pressure
38 Control valve B1
39 Plunger, control valve B1
40 Shift valve, kickdown
41 Shift valve, governor pressure
44 Booster valve, governor pressure
45 Control valve, control pressure
46 Plunger, control valve, control pressure

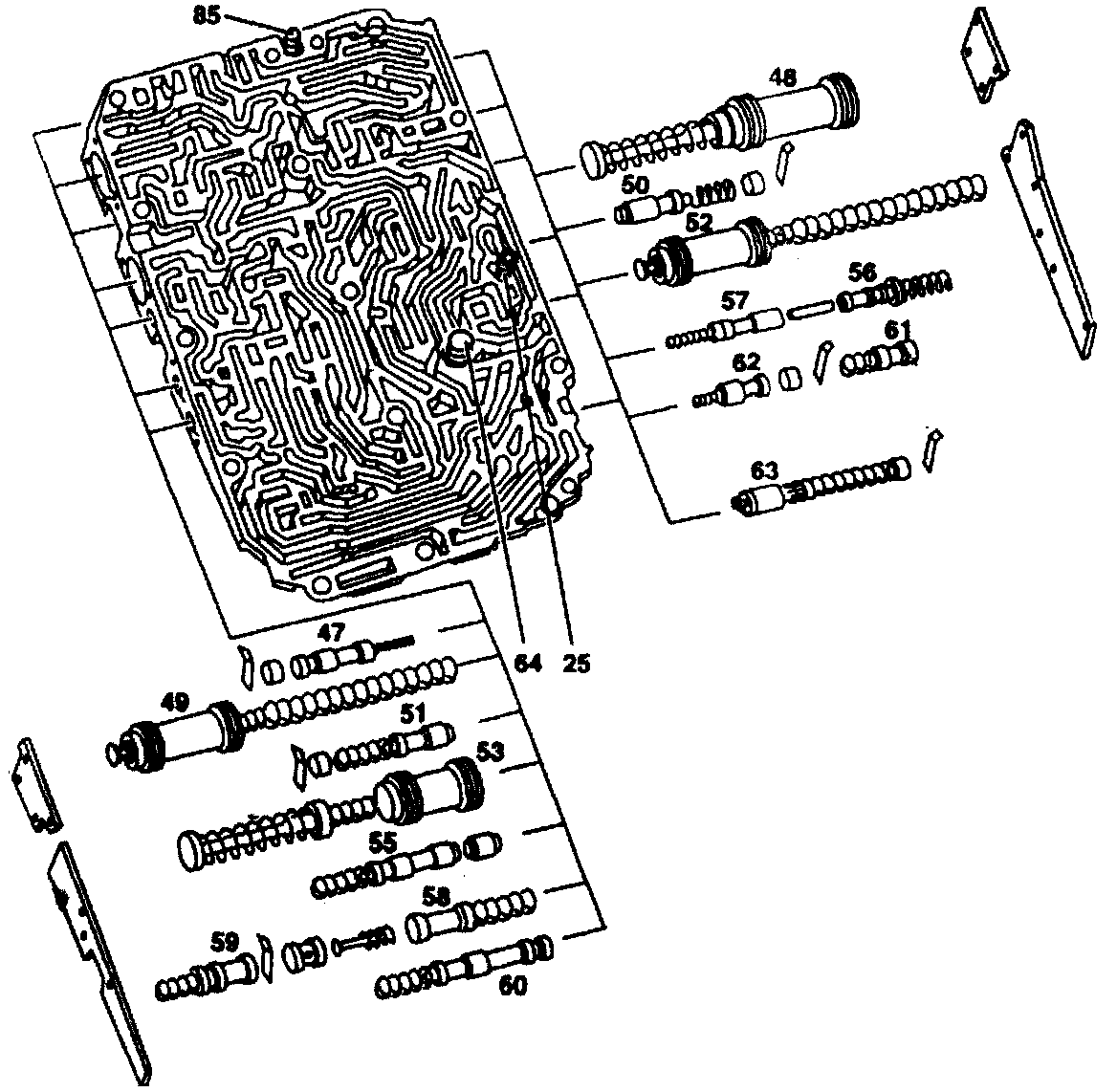

25 Pressure relief valve, modulating pressure
47 Control valve, shift pressure
48 Accumulator K1
49 Accumulator K2
50 Control valve, accumulator K1
51 Control valve, accumulator K2
52 Accumulator B1
53 Accumulator switching on
55 Shut-off valve RV2
56 Shift valve, deceleration shift
57 Control valve, accumulator B1
58 Control valve, accumulator switching on (disabled as of transm. no. 3 747000)
59 Shift valve K2
60 Detent valve B2
61 Shut-of valve, brake circuit
82 Shut-off valve, RV1
63 Accumulator, Kickdown
64 Lubricating pressure valve
85 Pressure limiting valve
