No Engagement After Repair to Reconditioned Transmission

CAUSE/REMEDY:
1. The Incorrect T-form ring for brake band piston B2 was installed.

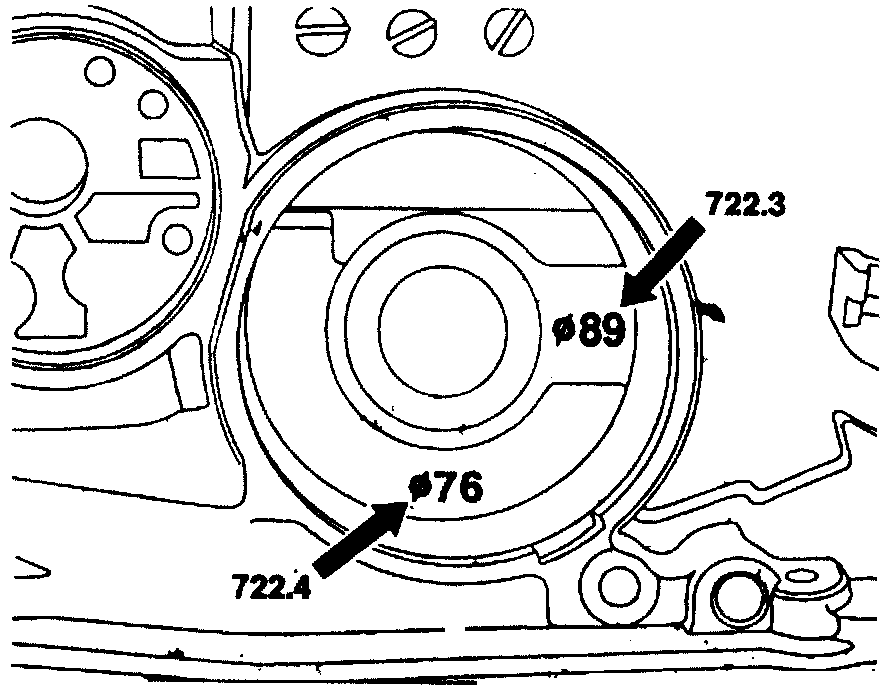

When repairing reconditioned transmissions the housings of which are identified with the diameters 76 and 89 (arrows) only the modified T-form rings for brake band piston B2 must be installed.

Transmission 722.3 except 722.362, part no. 140 277 O1 55/59

Transmission 722.4 part no. 202 277 00 55/59
