Harsh Shift Quality
>>
Complaint
>>
Hard 2-3 Upshift When Cold
Hard 2-3 Upshift When Cold
CAUSE/REMEDY:
Fluctuations in the friction coefficient of the coated discs of clutch K1.
1.

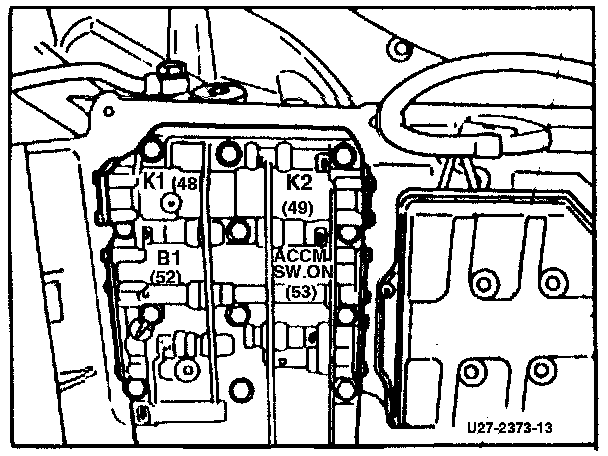

Install modified spring assembly for Accumulator K1 (48).
