A/T - Modulator Application & Pressure Specifications

TECHNICAL BULLETIN # 109B

TRANSMISSION: 722.0, 1, 3, 4 & 5

SUBJECT: Modulator Application

APPLICATION: Mercedes

DATE: April 92

IMPORTANT
MODULATOR PRESSURES ON 722.0'S & 722.1 'S ARE SET AT 65 KPH (40 MPH) AT FULL THROTTLE

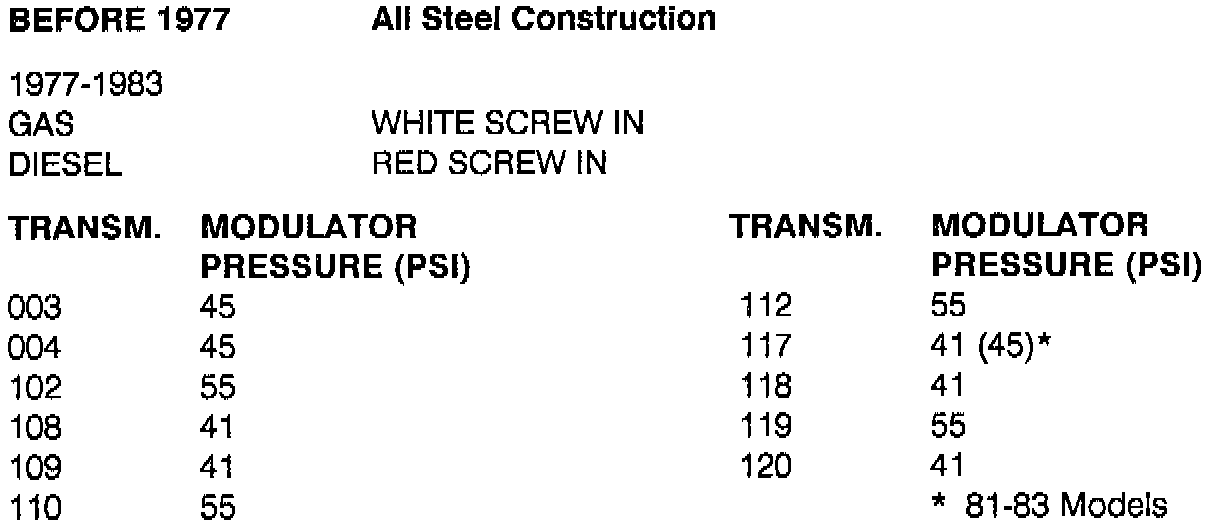

722.0 & 722.1

IMPORTANT
MODULATOR PRESSURES ON 722.3'S ARE SET AT 50 KPH (31 MPH) AT FULL THROTTLE

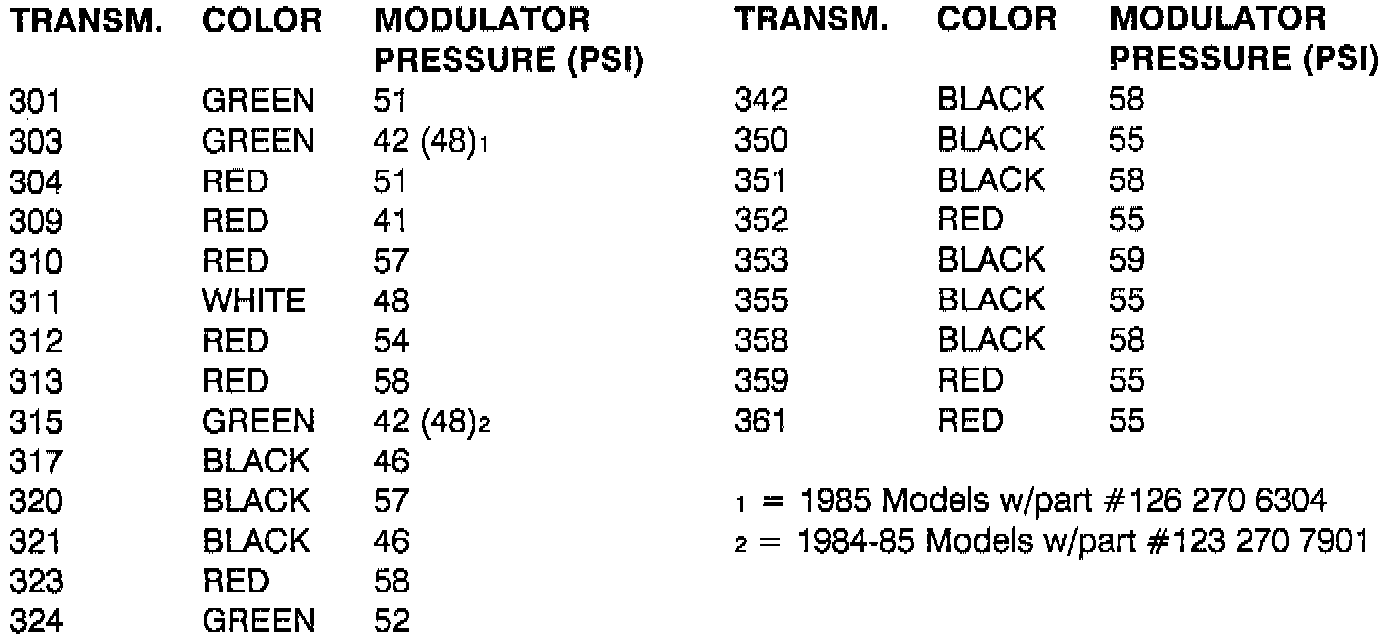

722.3

IMPORTANT
MODULATOR PRESSURES ON 722.4'S & 722.5'S ARE SET AT 50 KPH (31 MPH) AT FULL THROTTLE




722.4 & 722.5

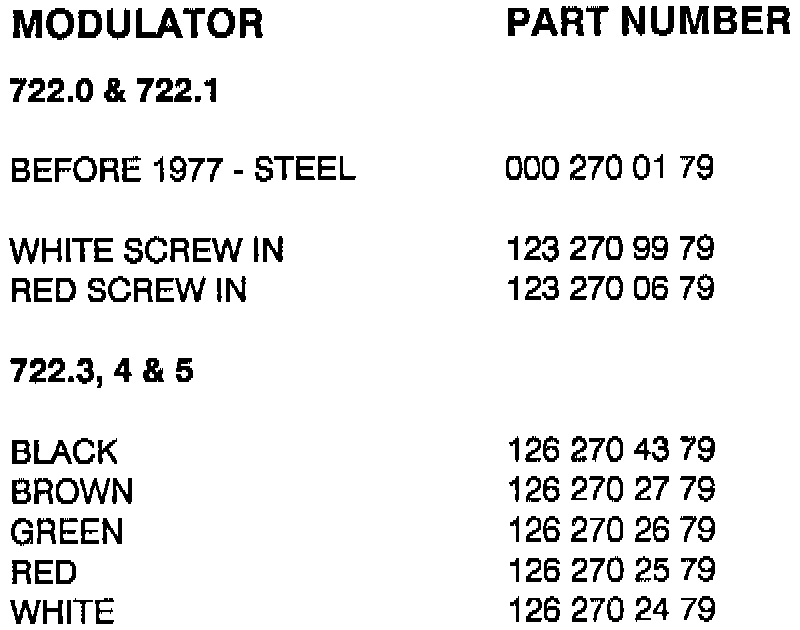

Parts Information

Note
IT IS IMPORTANT TO ADJUST THE MODULATOR WITH A PRESSURE GAUGE AFTER CHANGING THE MODULATOR.
