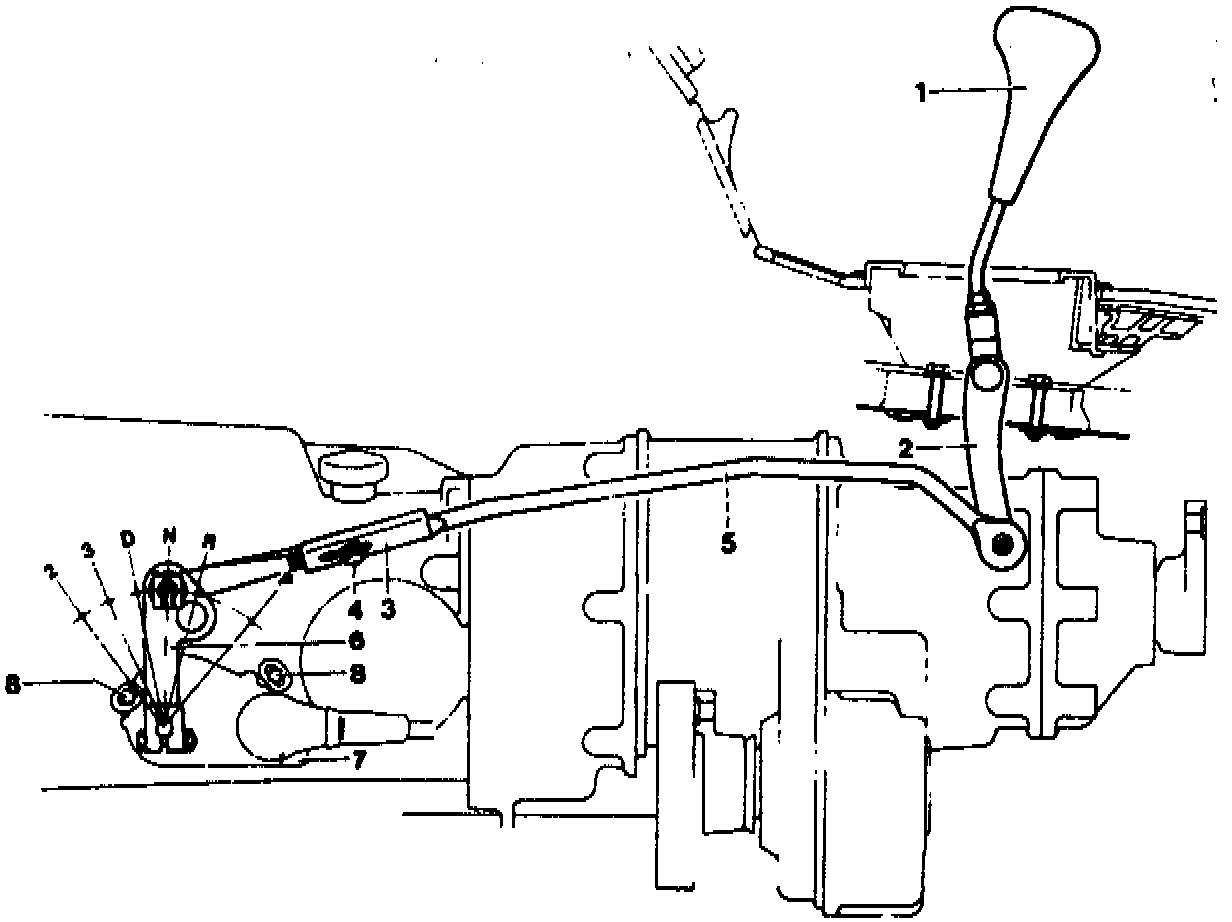

Selector Shaft: Adjustments

NOTE:
Park vehicle on a level surface

Clamping screw (4) Slacken.
Range selector lever (6) Move to position "N".
Selector lever (1) Fix so that there is 1 mm clearance at the "N" stop of the shift gate. Tighten clamping screw (4).
