Shift Diagram Without Mode Selector Switch (Example)

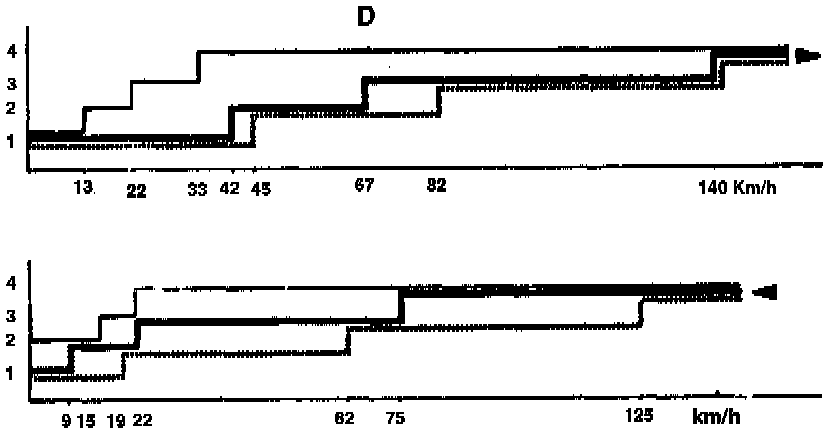

Selector Lever Position "D" (4-speed transmission)

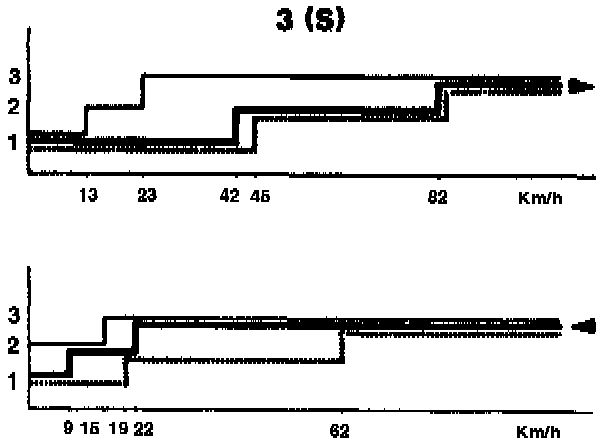

Selector Lever Position "3"

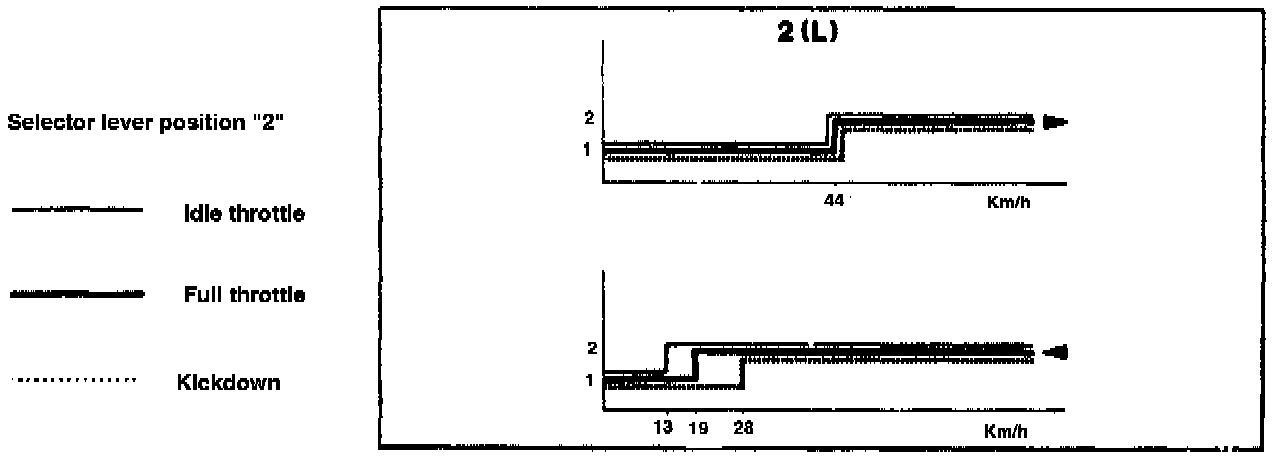

Selector Lever Position "2"
