GF27.10-P-0001-08ACL Automatic Transmission (AT), Location of Electric/Electronic Components



GF27.10-P-0001-08ACL Automatic transmission (AT), location of electric/electronic components
- Transmission 722.618/646/694/696

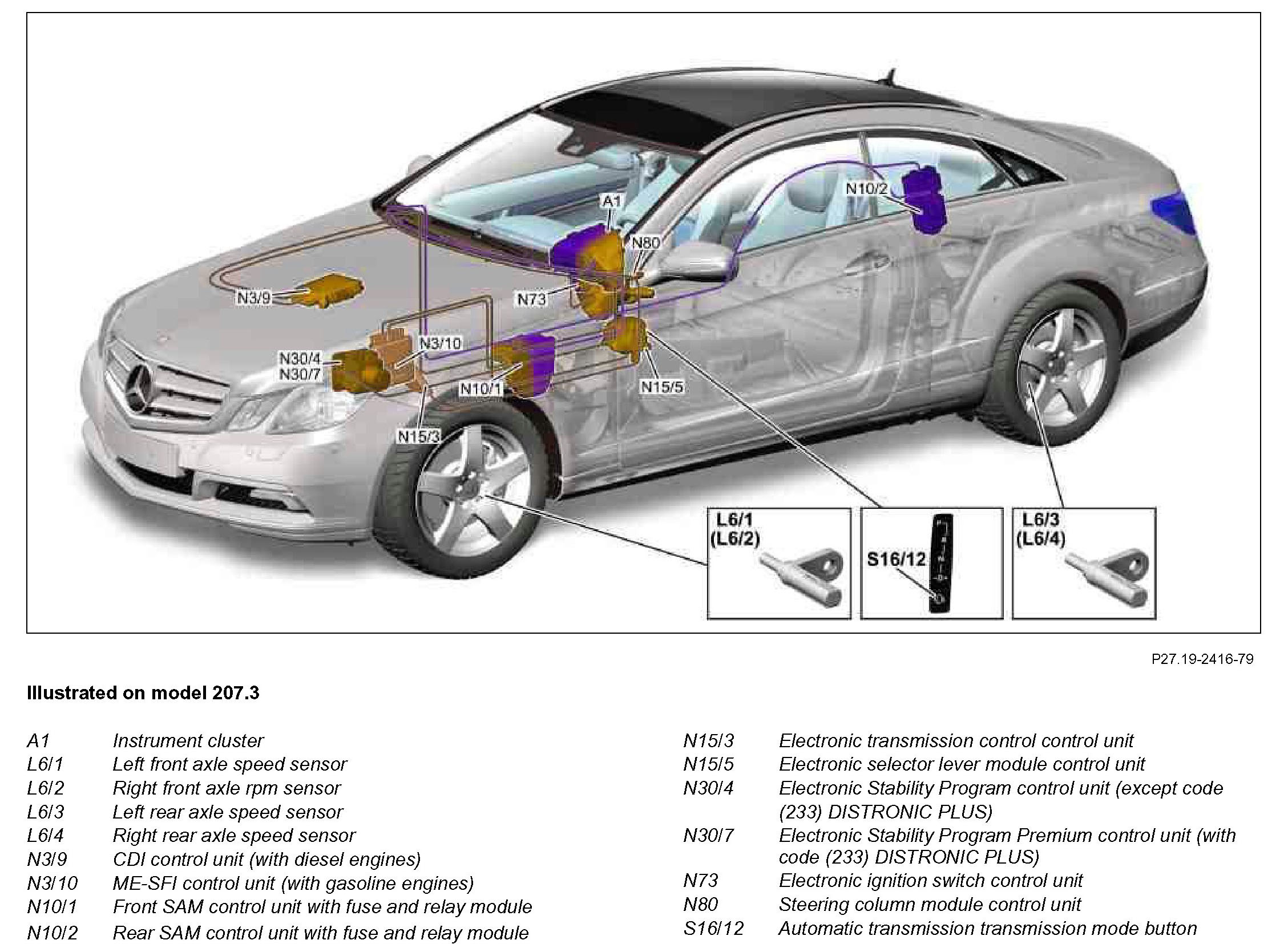

Component Identification:

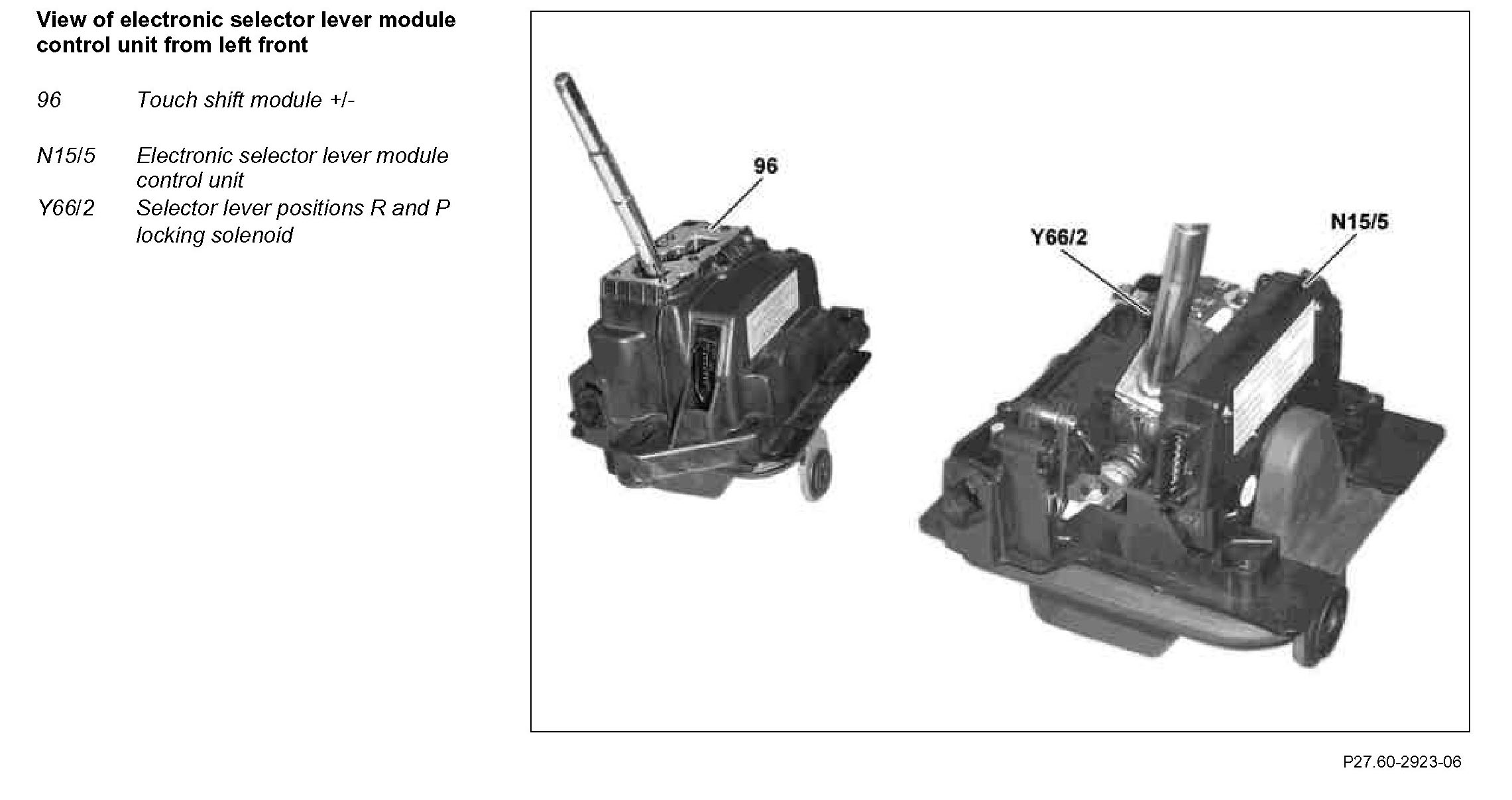

Component Identification:

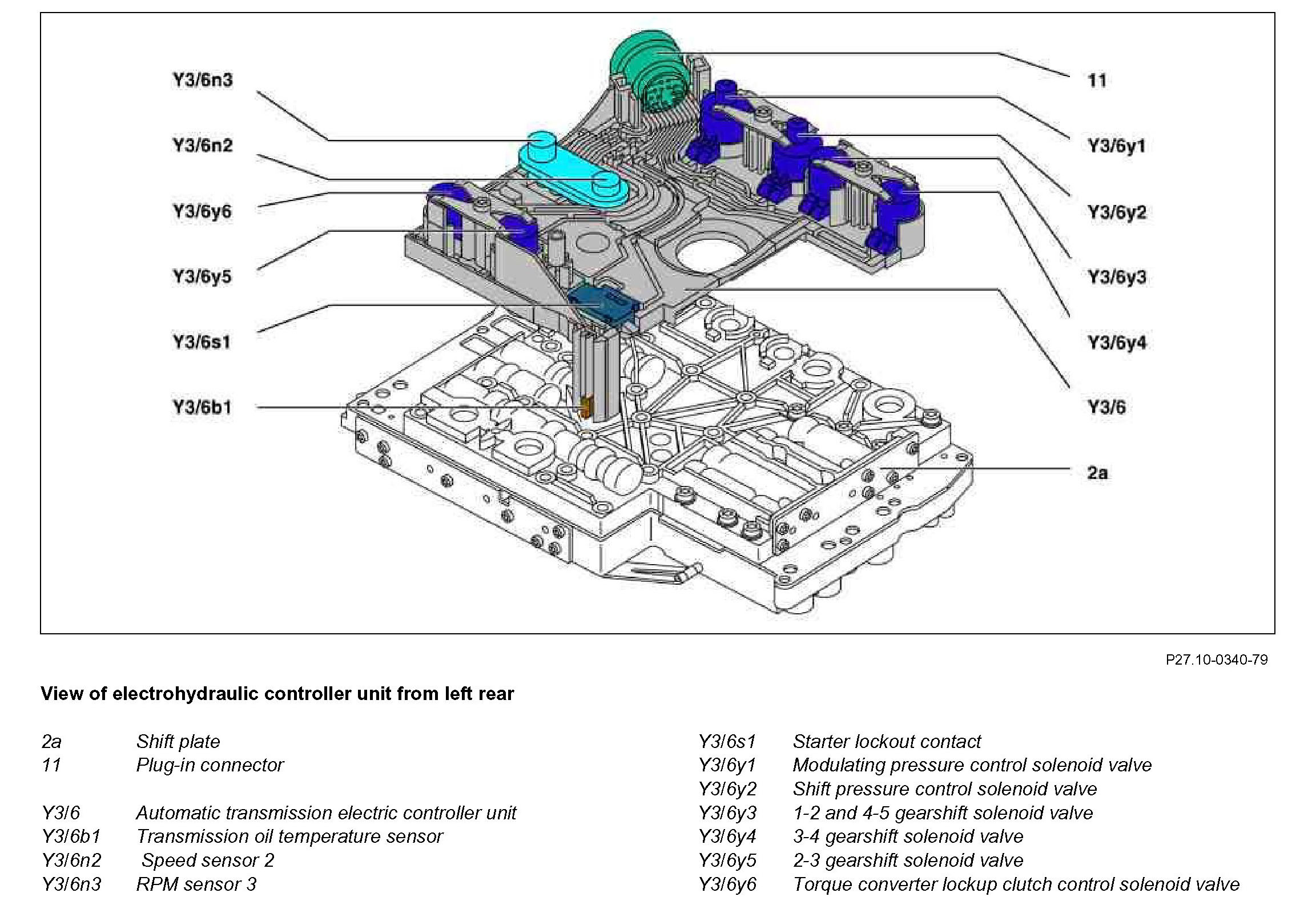

Component Identification:

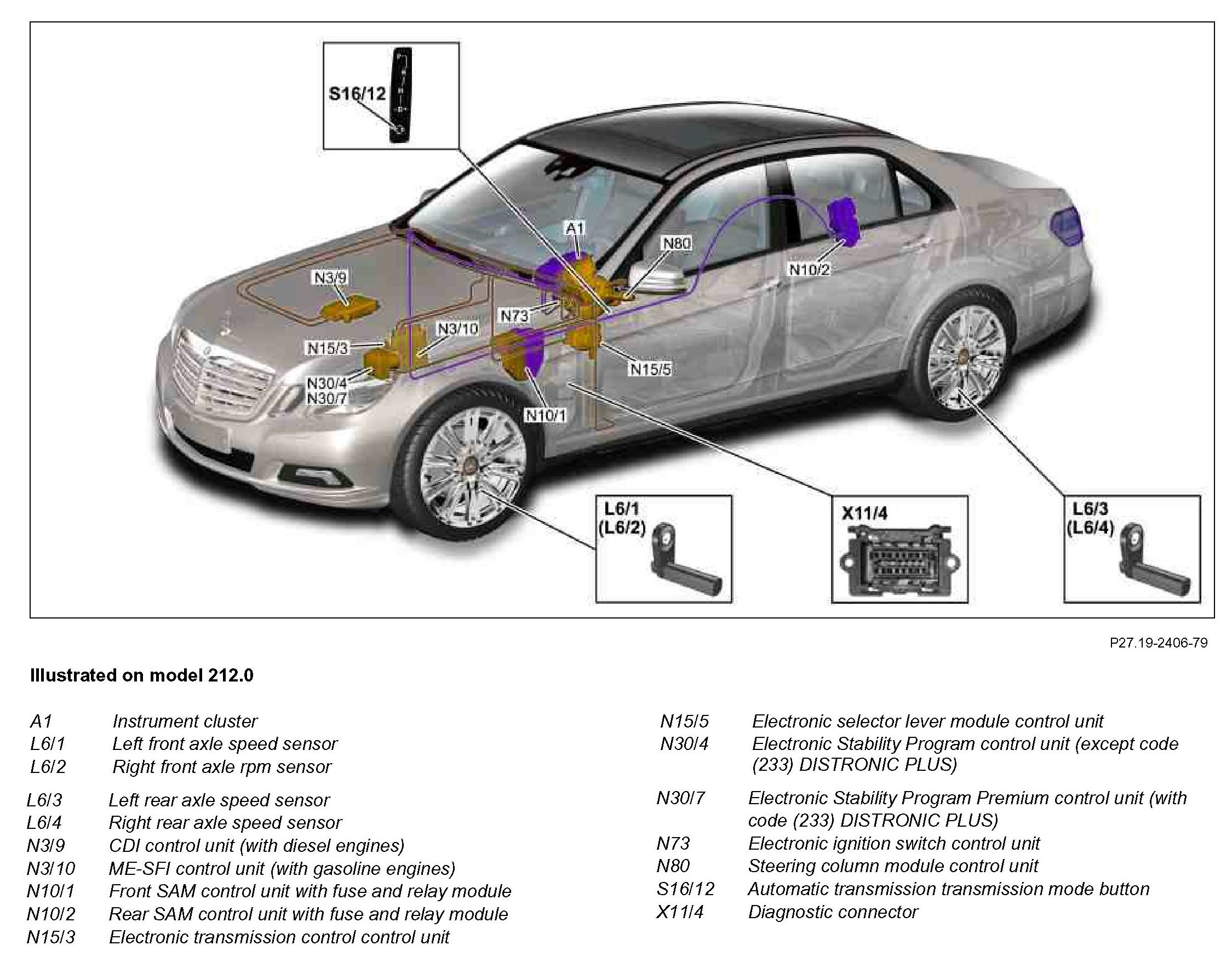

Component Identification:
