AR35.00-P-2000A Locate noises from rear axle

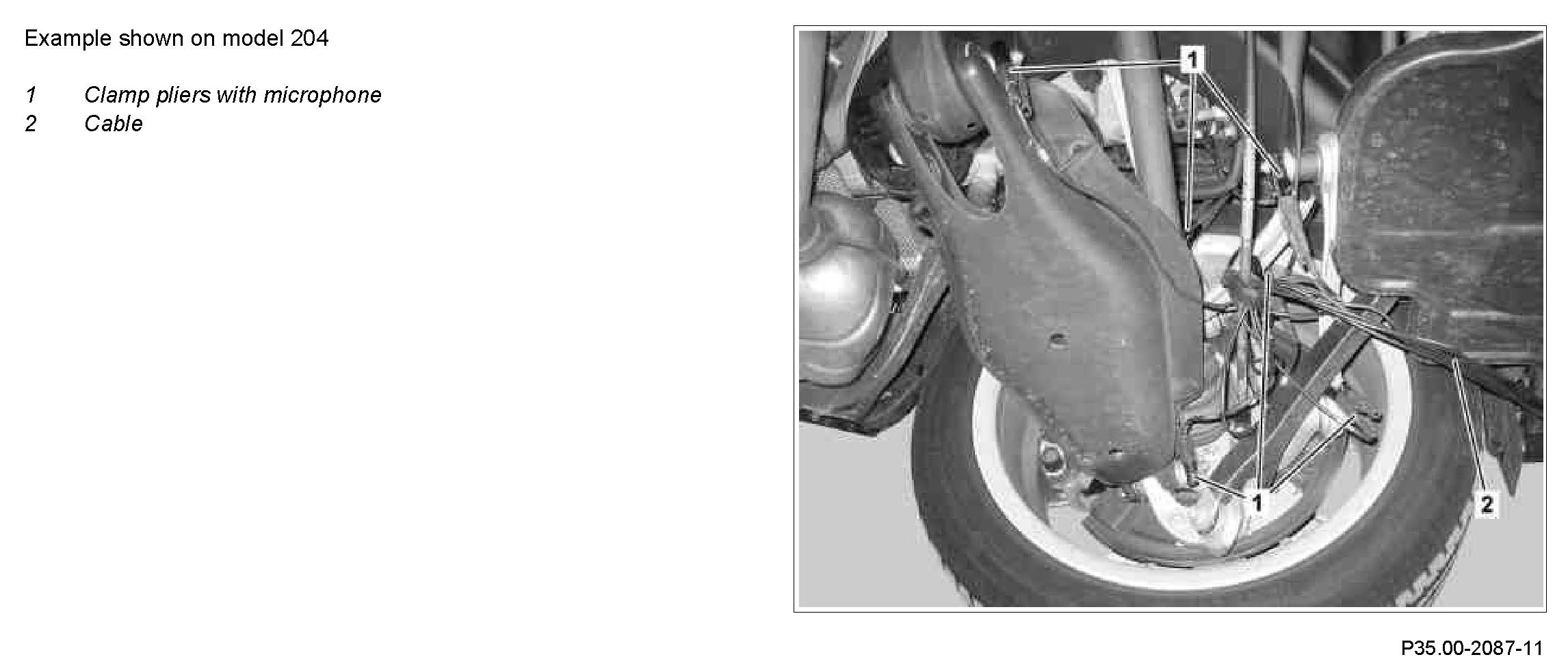

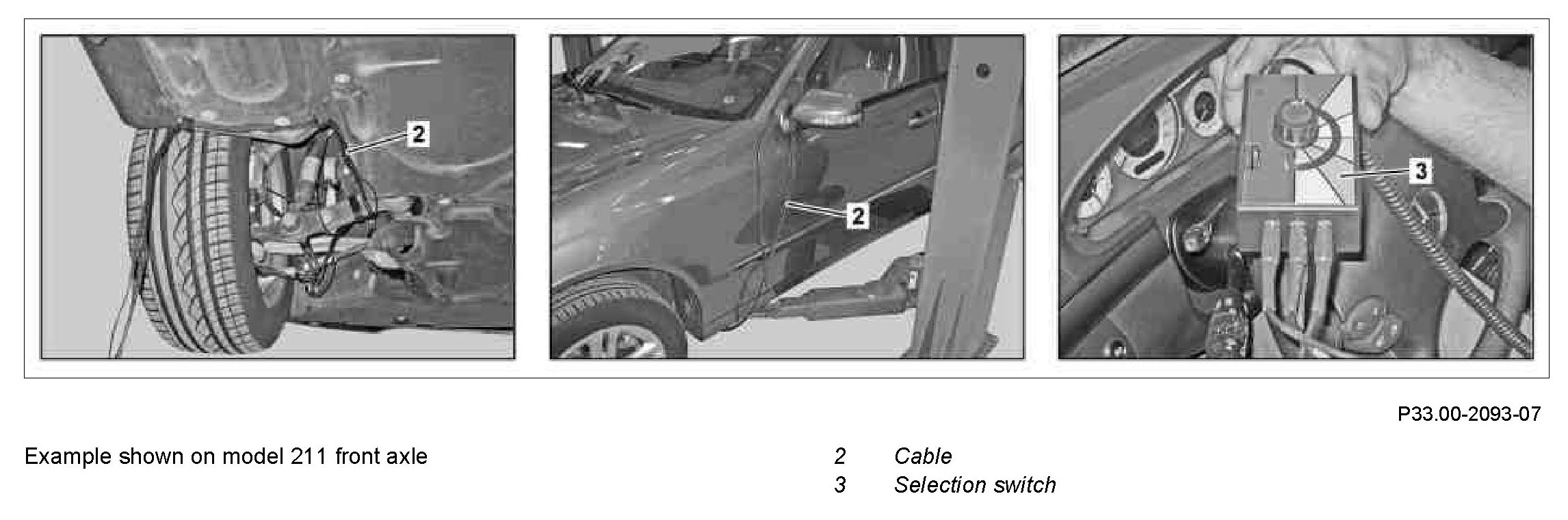

Component Identification:
Component Identification:

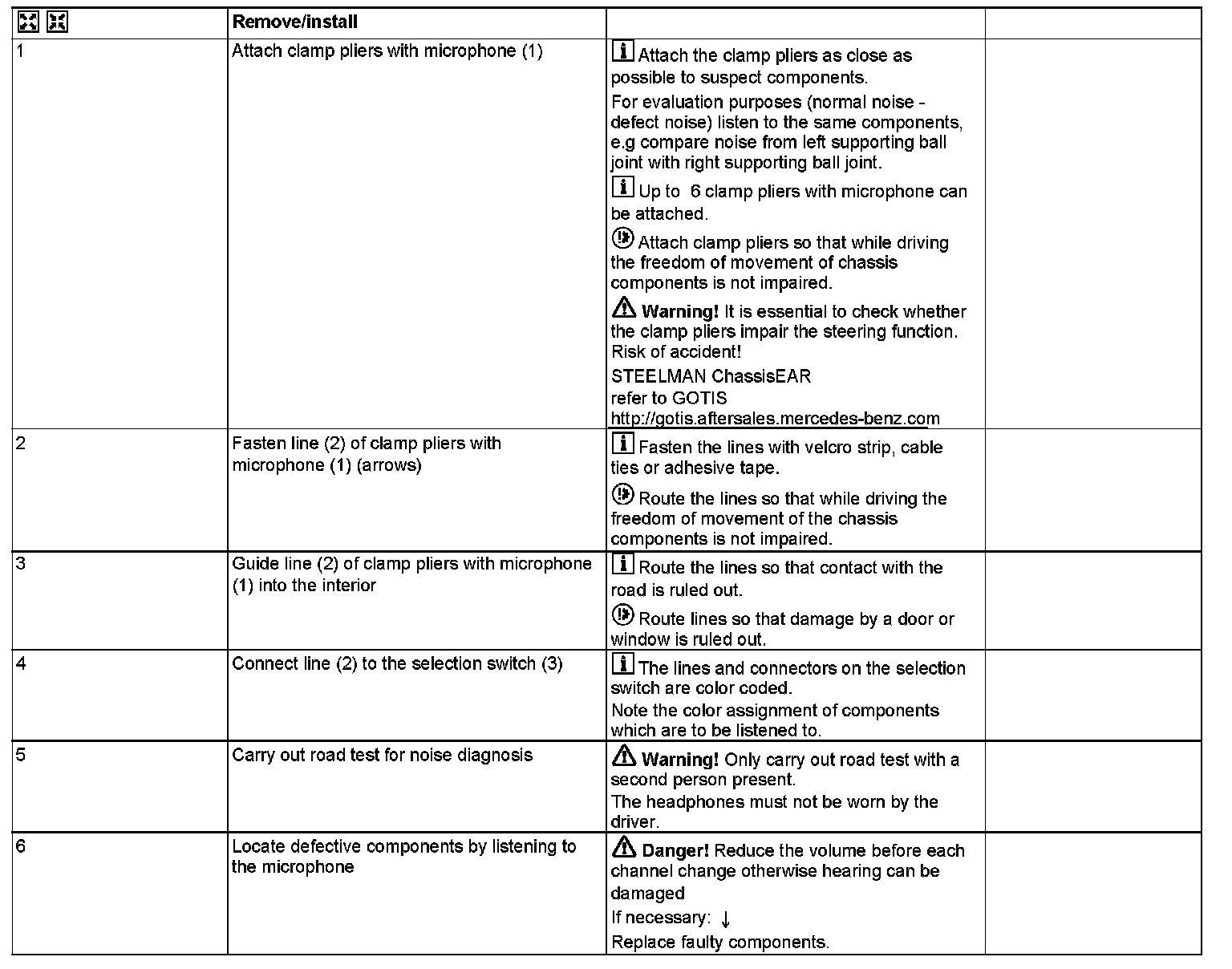

Steps 1-6:
