Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Suspension Fluid >> Testing and Inspection

Suspension Fluid: Testing and Inspection


AP32.30-P-3211BA Check and correct level control, 4MATIC, ASD, ADS fluid level

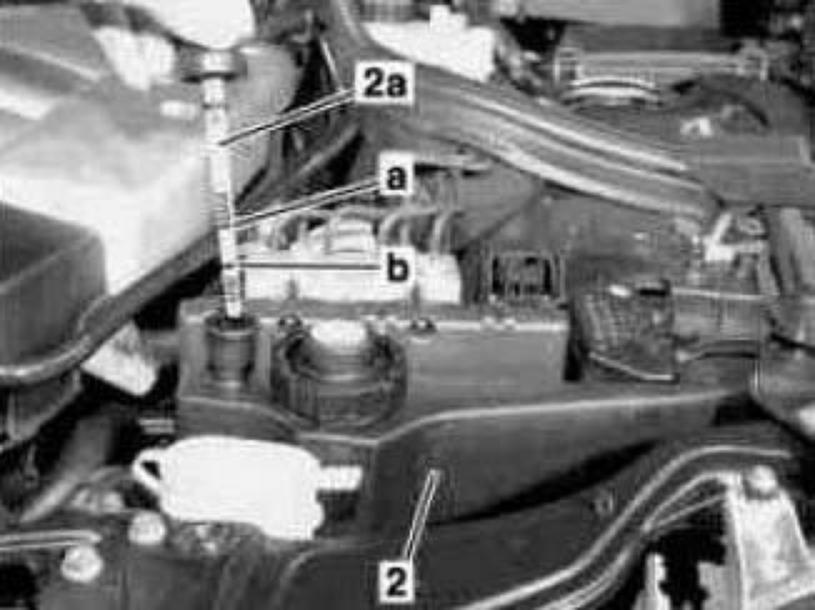

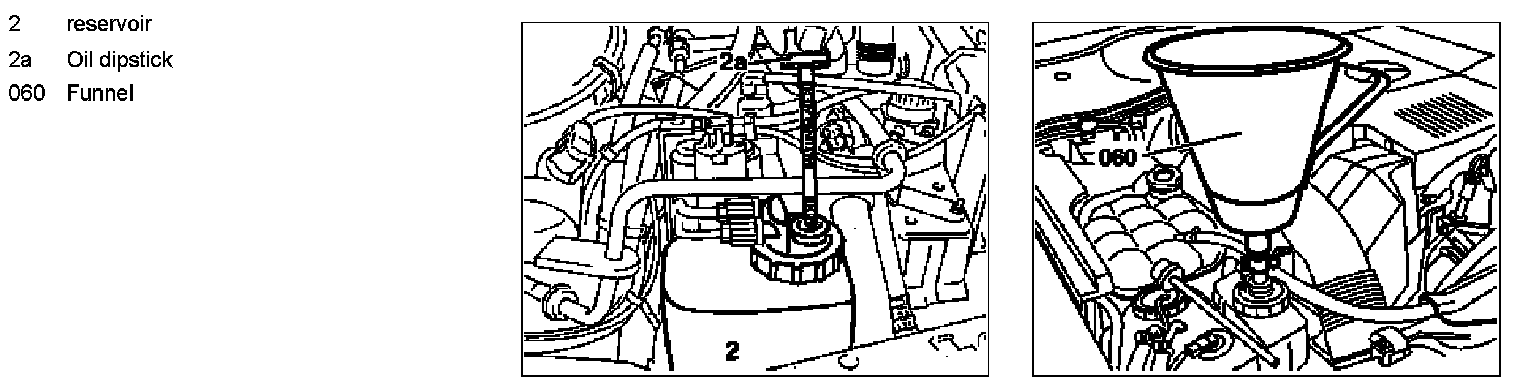

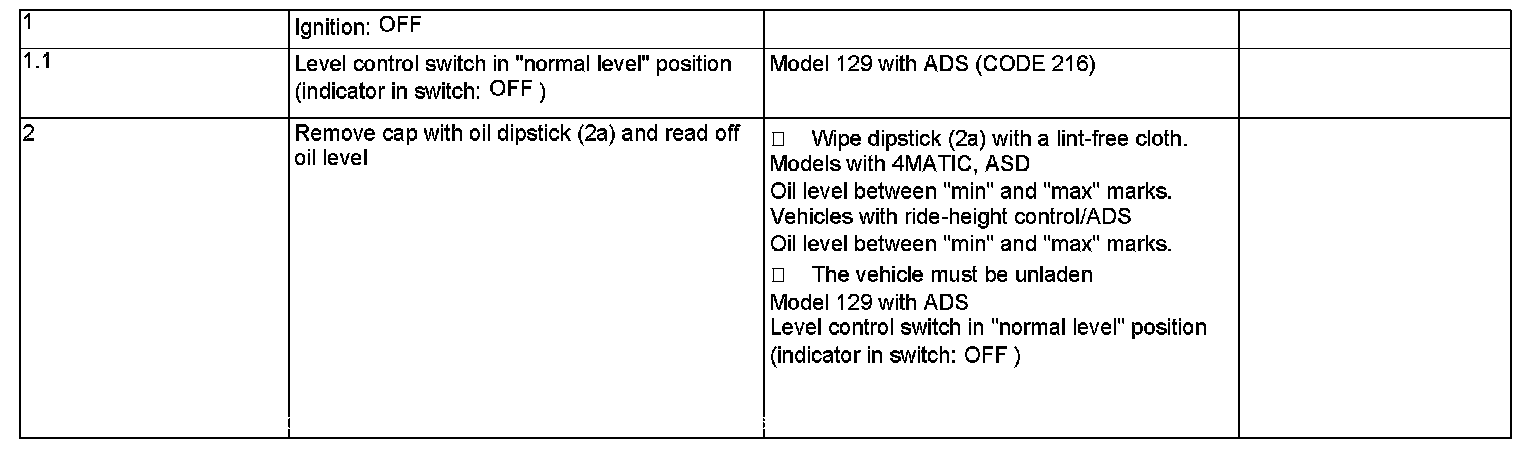

Steps 1-2:

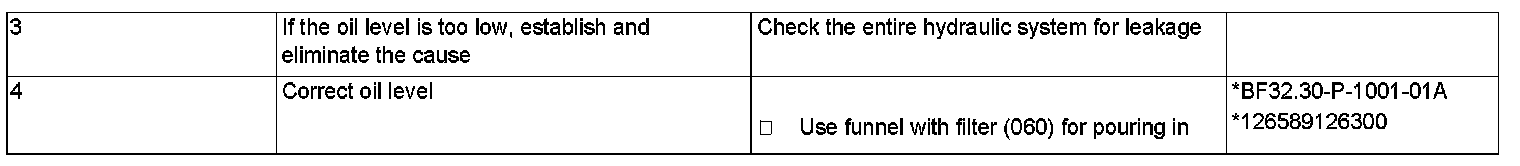

Steps 3-4:






Part 1:




Part 2:




Part 3:




Part 4:

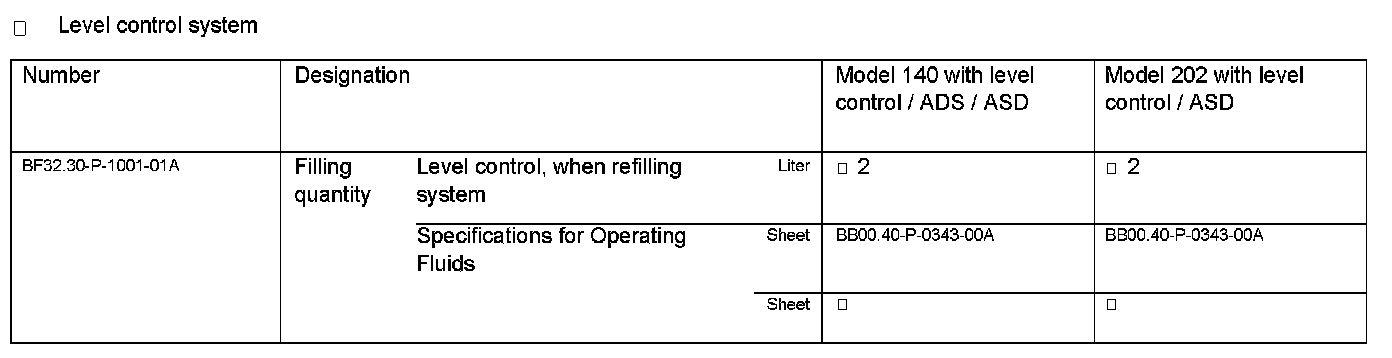

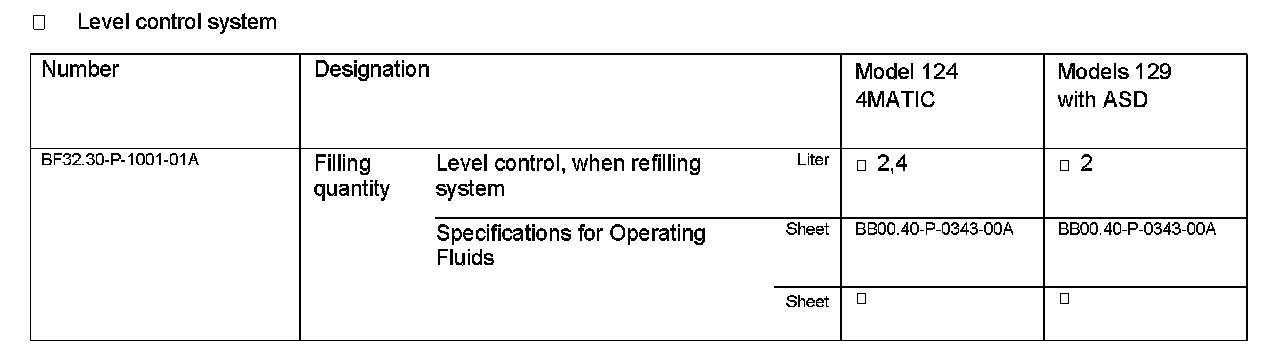

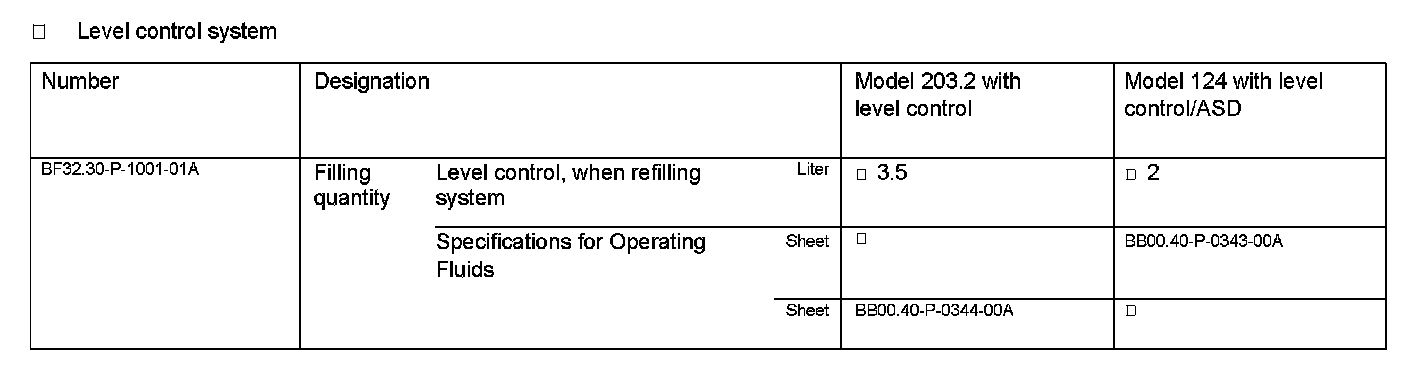

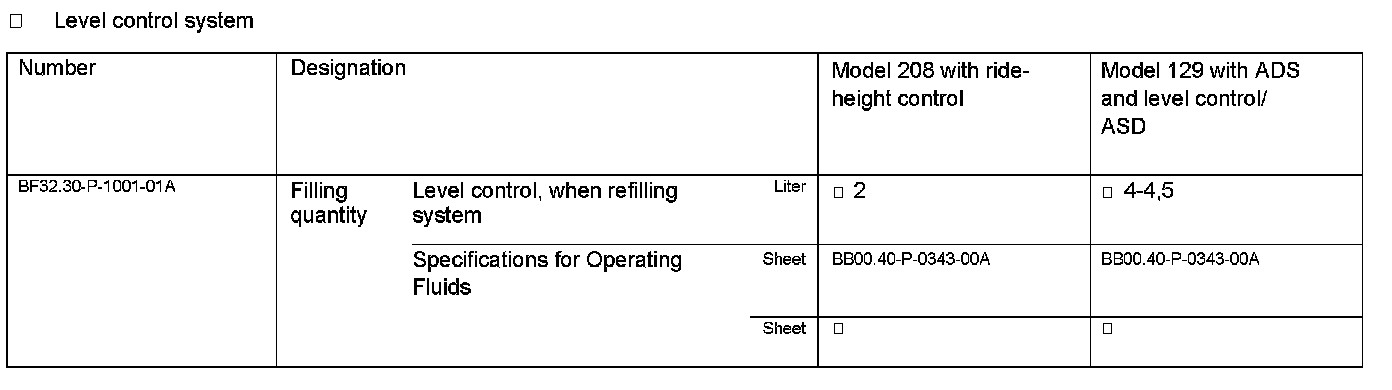

Level control system

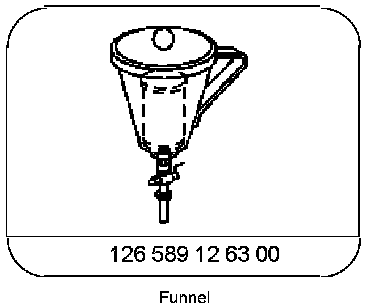

Funnel
