Compressor/Pump: Locations

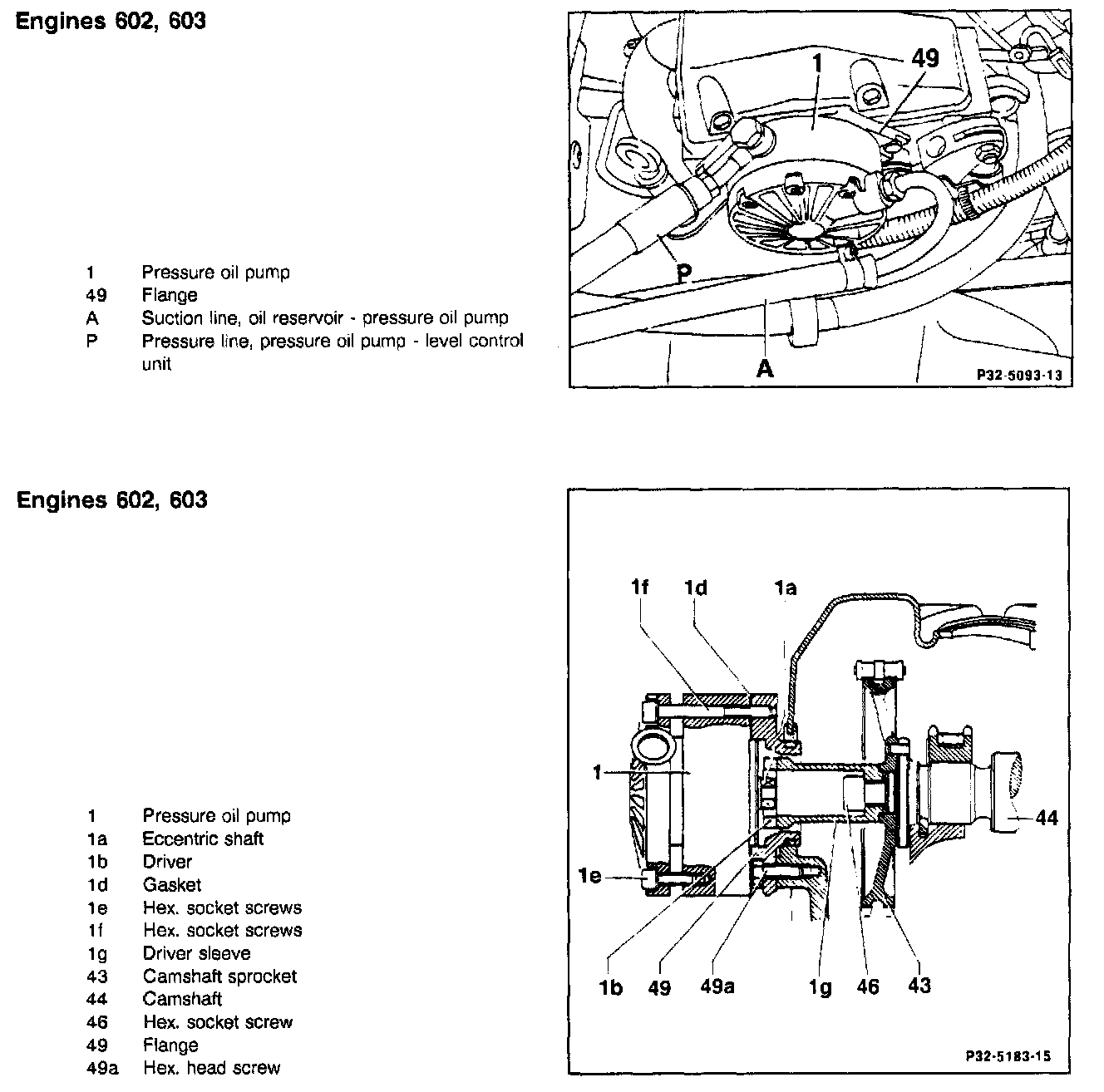

602, 603 Engine:

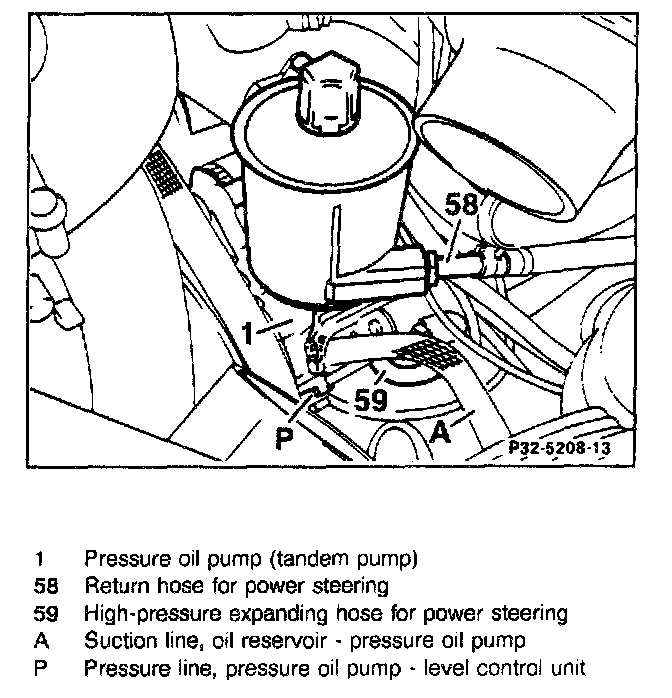

103 Engine:

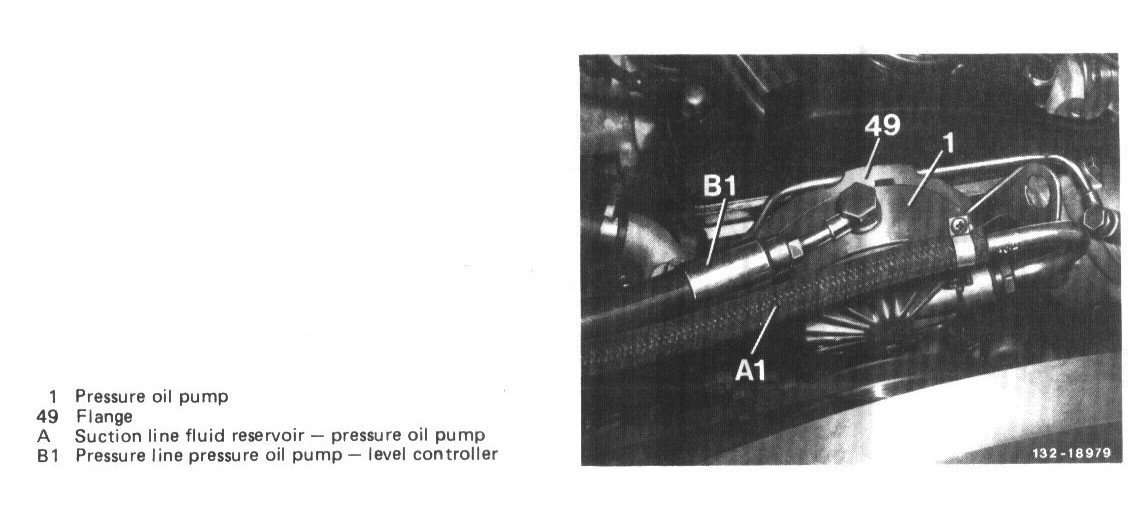

Engine 102:

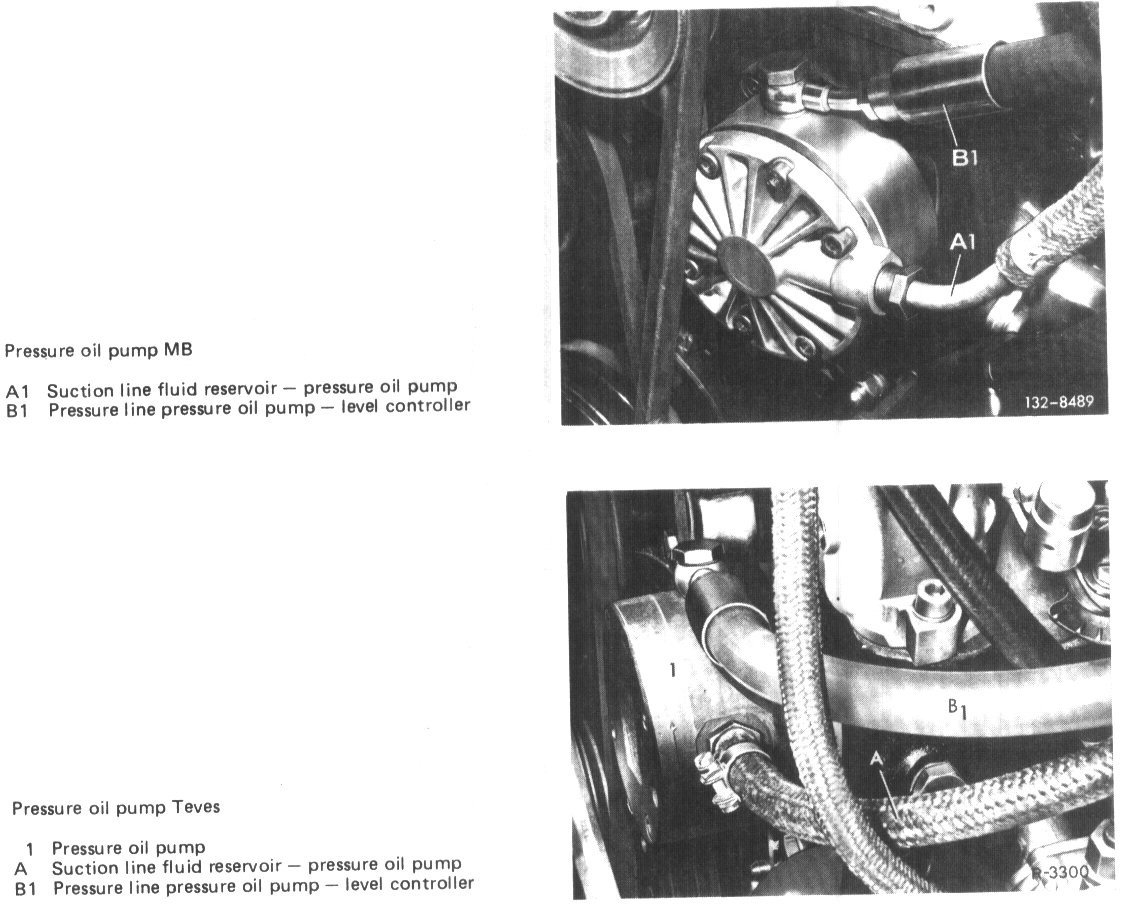

Engine 103:

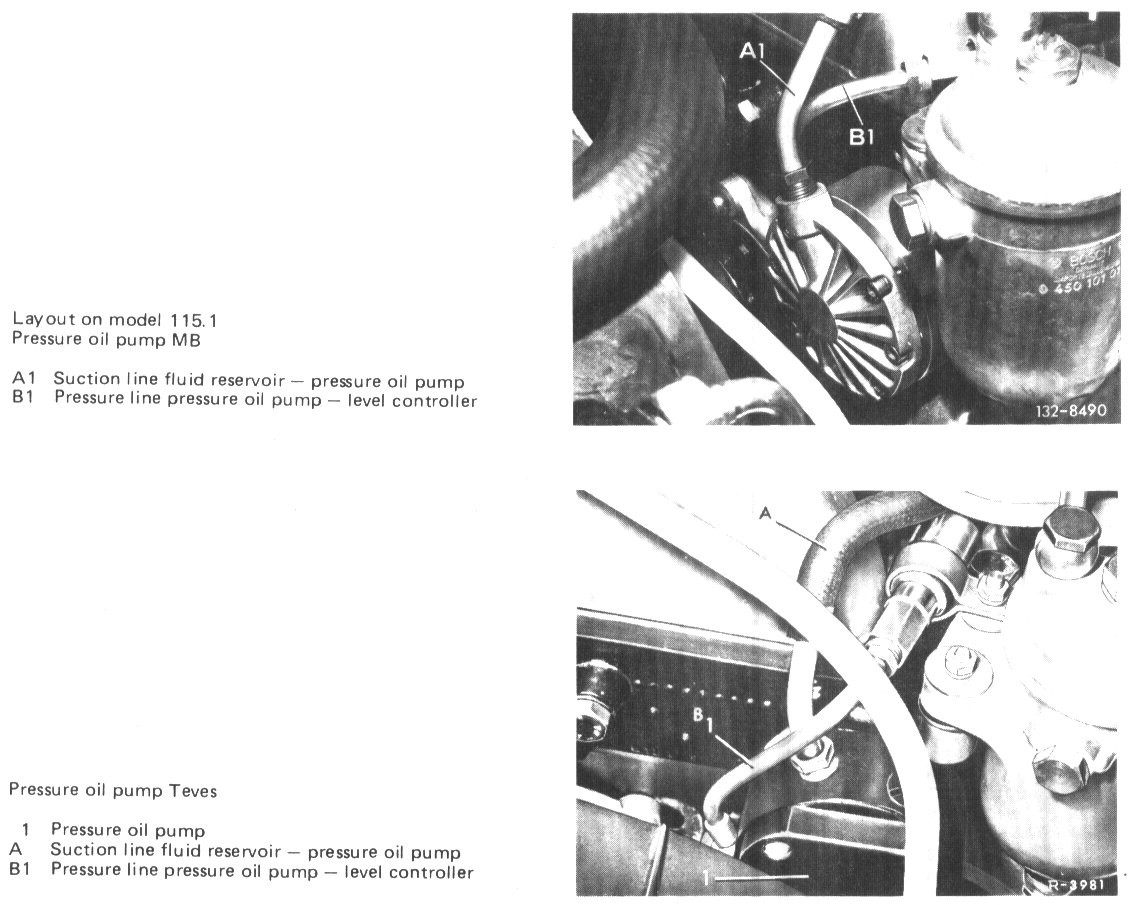

Engine 114, 115, 130:

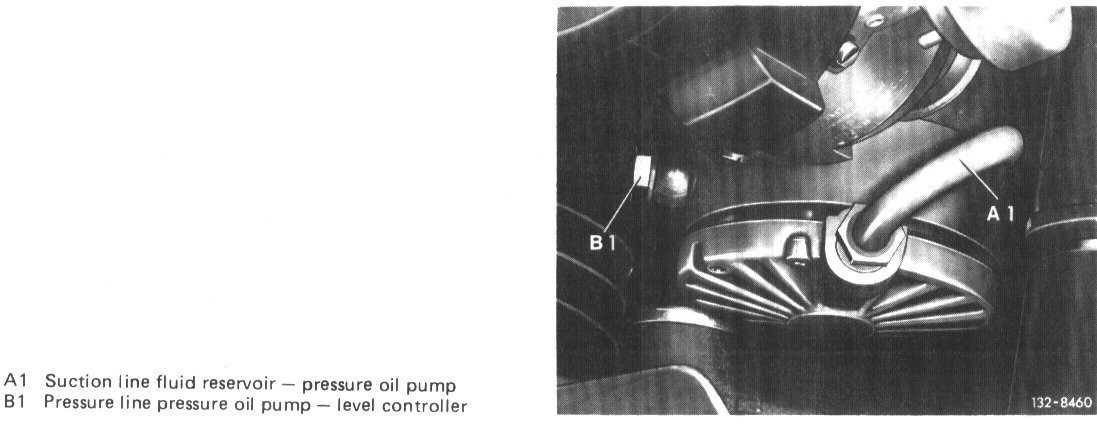

Engine 615, 616, 617:
