Steering Wheel without Airbag

Removal and Installation:
- Position steering wheel (32) horizontally (front wheels in straight ahead position) and allow steering lock to engage. Insert/push adjustable steering column in fully.

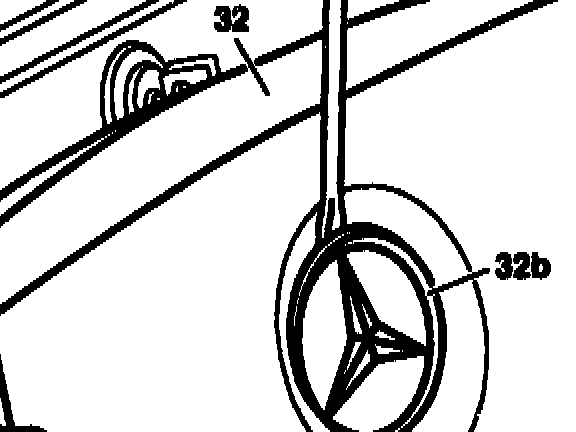

- Remove trademark (32b) using a small screwdriver.

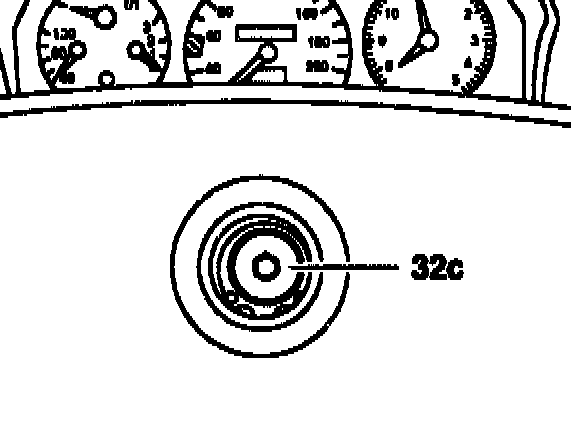

- Unscrew countersunk screw (32c) and replace. On re-installation of new screw, torque to 80 Nm. To protect the steering lock and the jacket tube, arrange for an assistant to steady the steering wheel (32).
- If necessary, mark installed position of steering wheel in relation to steering shaft, remove steering wheel.

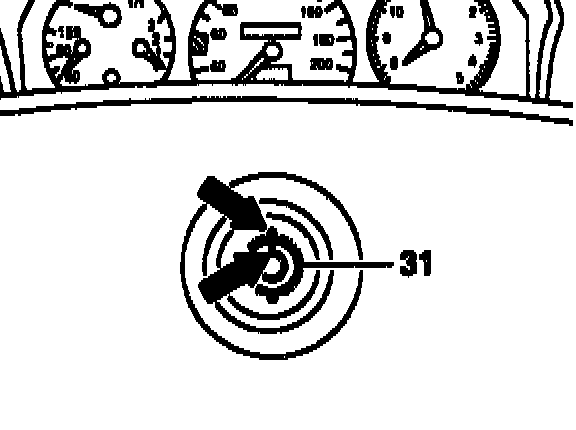

NOTE: When installing, align recess on the steering wheel with marking on the steering shaft (arrow) (since 01/90) or observe self-made installation markings.

- Reverse procedure to install.

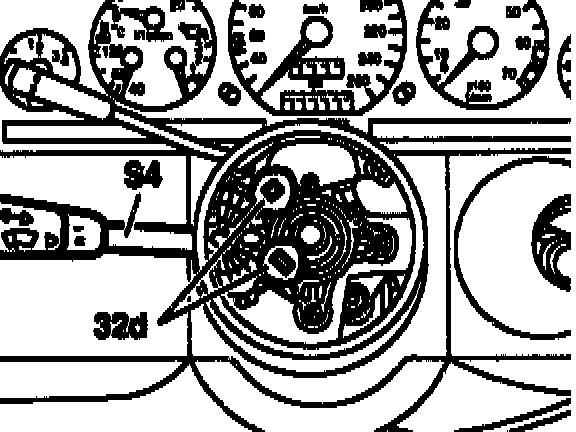

- Check carbon brushes (32d) and brass contact rings. If there are grinding noises from the carbon brushes (32d), coat brass contact rings lightly with 331 contact grease or Elektrolube 2 GX.

On a test trip, check the following:
- Position of steering wheel. If the steering wheel is not on square, offset it by max. 1 tooth. If there is a greater deviation, check center position of steering gear, adjust toe-in if necessary.
- Turn signal indicator resetting. If the steering wheel is offset by more than 1 tooth, satisfactory turn signal indicator resetting is no longer guaranteed.

Notes on cleaning steering wheels:
- Dirty or sticky steering wheels can be cleaned with a neutral household detergent, the steering wheel being washed with a lukewarm solution of detergent. Scouring agents must not be used.
