Removing and Installing Parameter Steering (PML) P-Valve (Y10)

Removing and Installing Parameter Steering (PML) P-Valve (Y10)

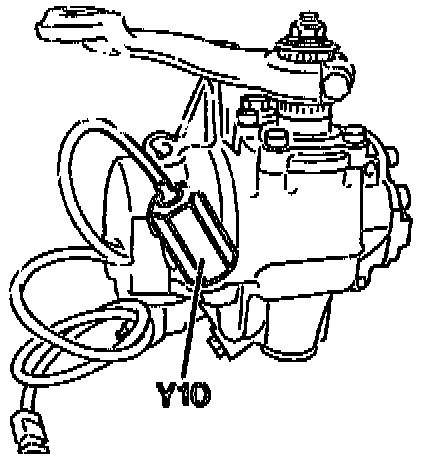

- With steering gear removed, unscrew P-valve (Y10). Absolute cleanliness is required.

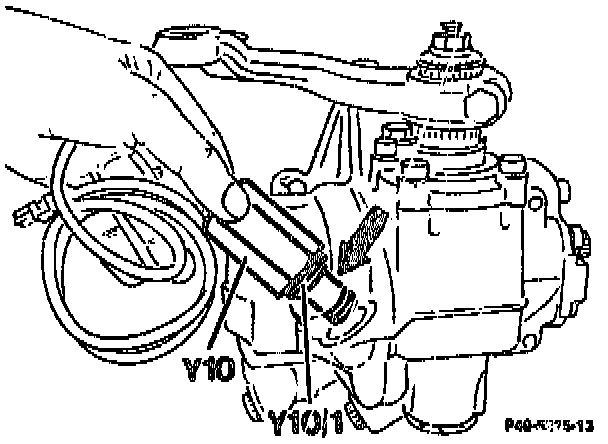

- Replace the seal (Y10/1).
- Torque to 70 Nm on installation.
