Relay Box: Application and ID



Fuse and Relay Block Identification and Location

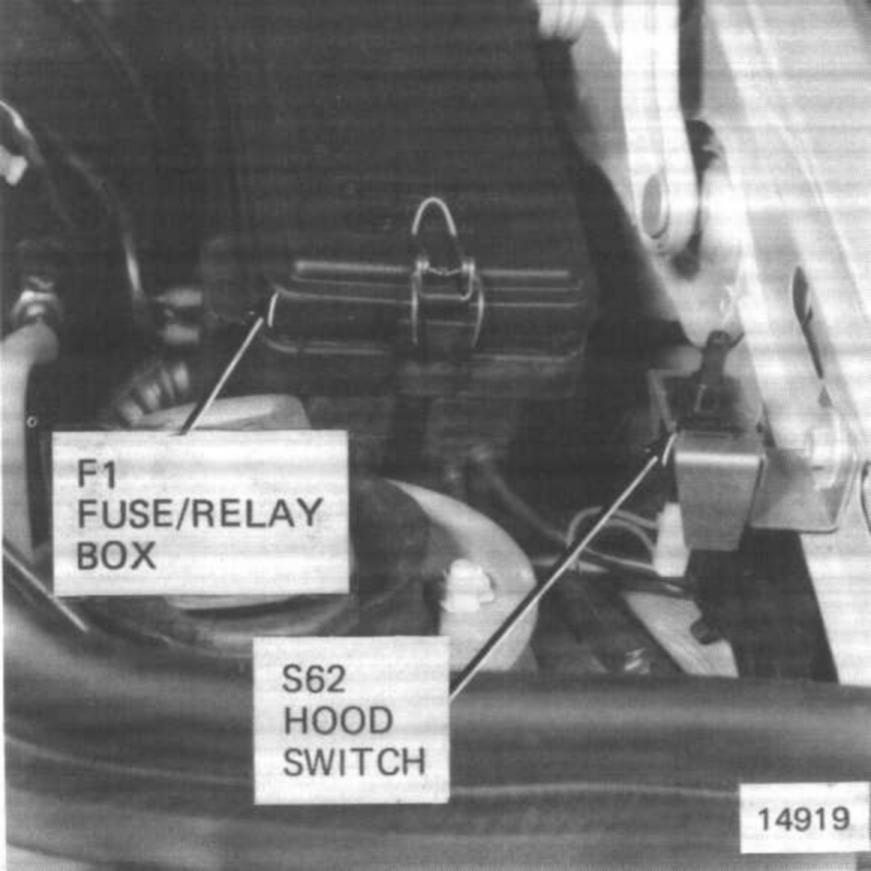

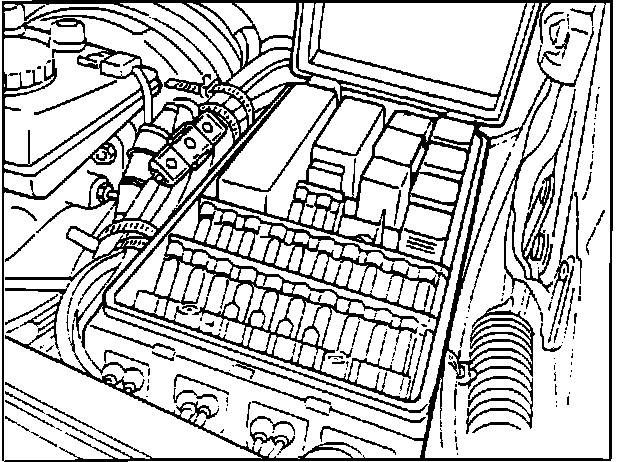

The fuse/relay box is located in the left side of the engine compartment.

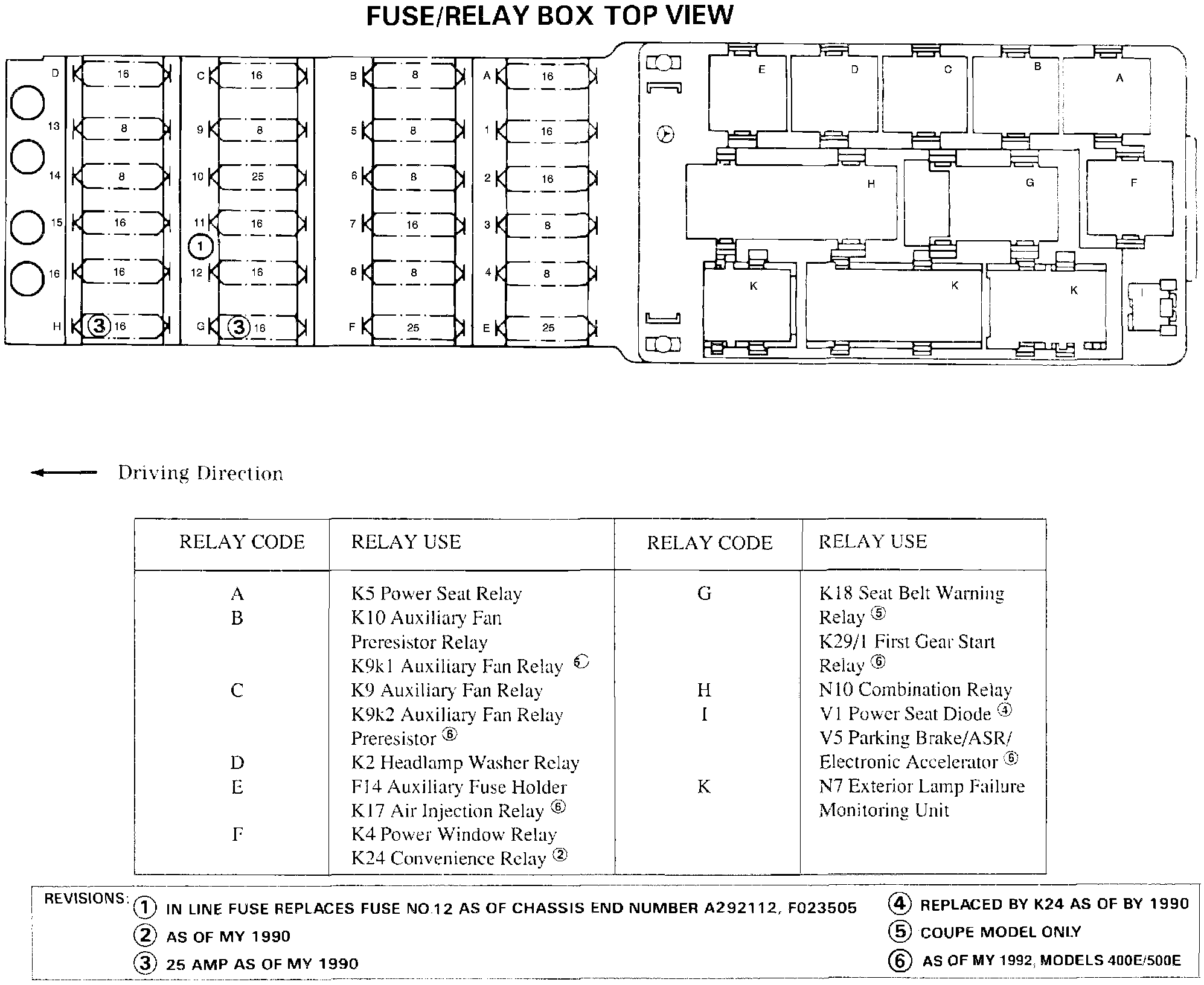

Fuse & Relay Box Layout / Relay Identification:

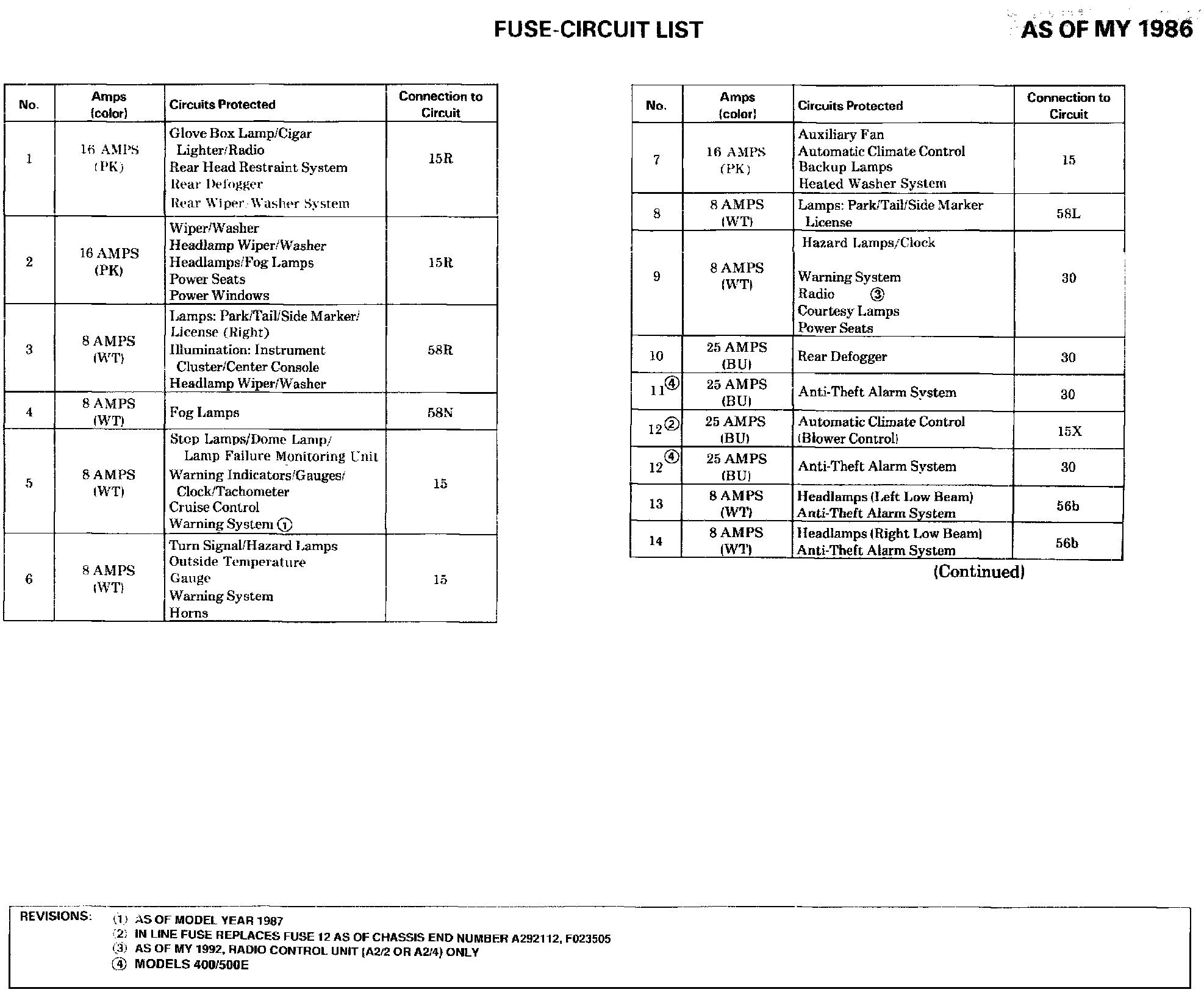

Fuse Identification (Part 1):

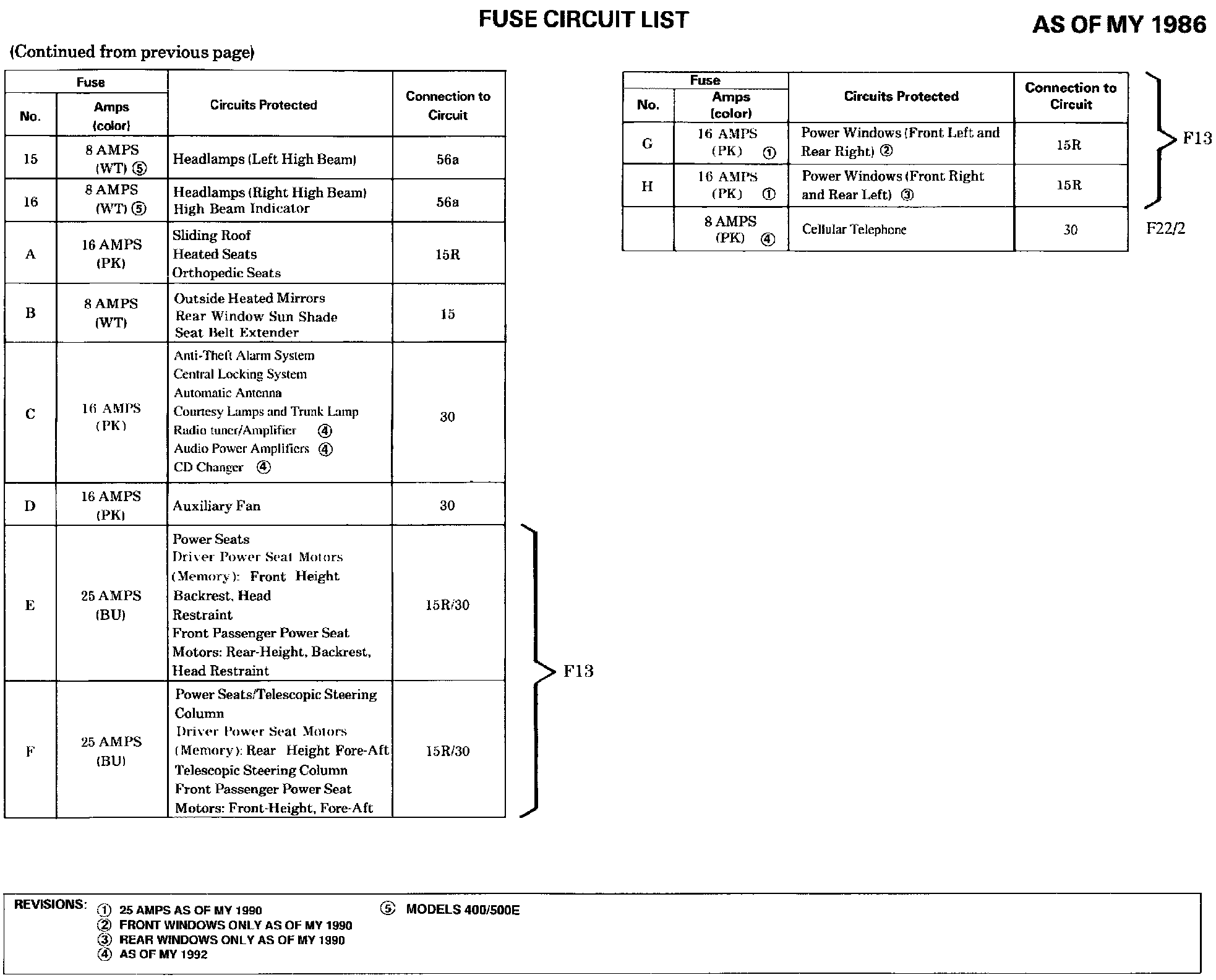

Fuse Identification (Part 2):
