300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

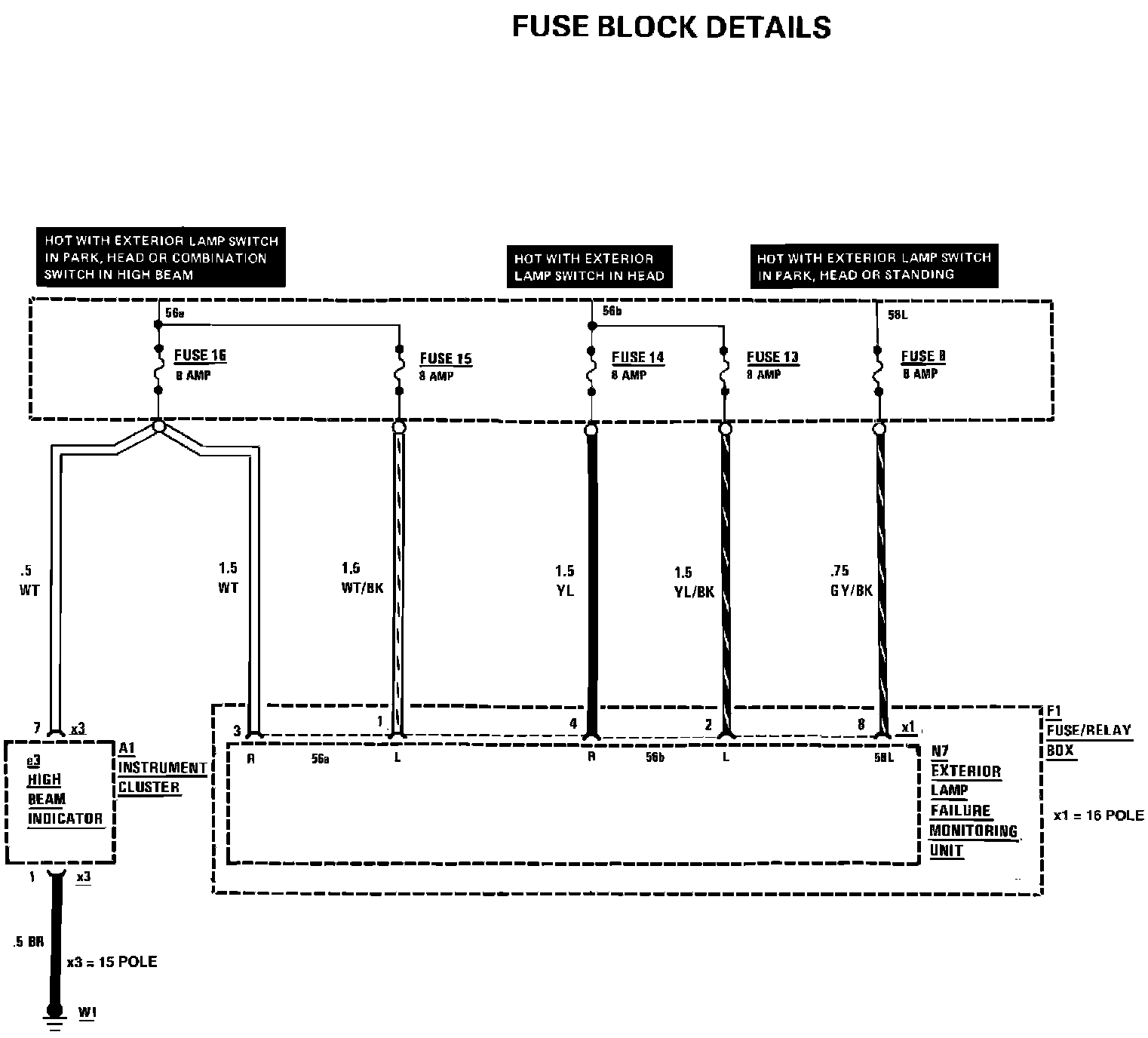

Fuse Block Details:

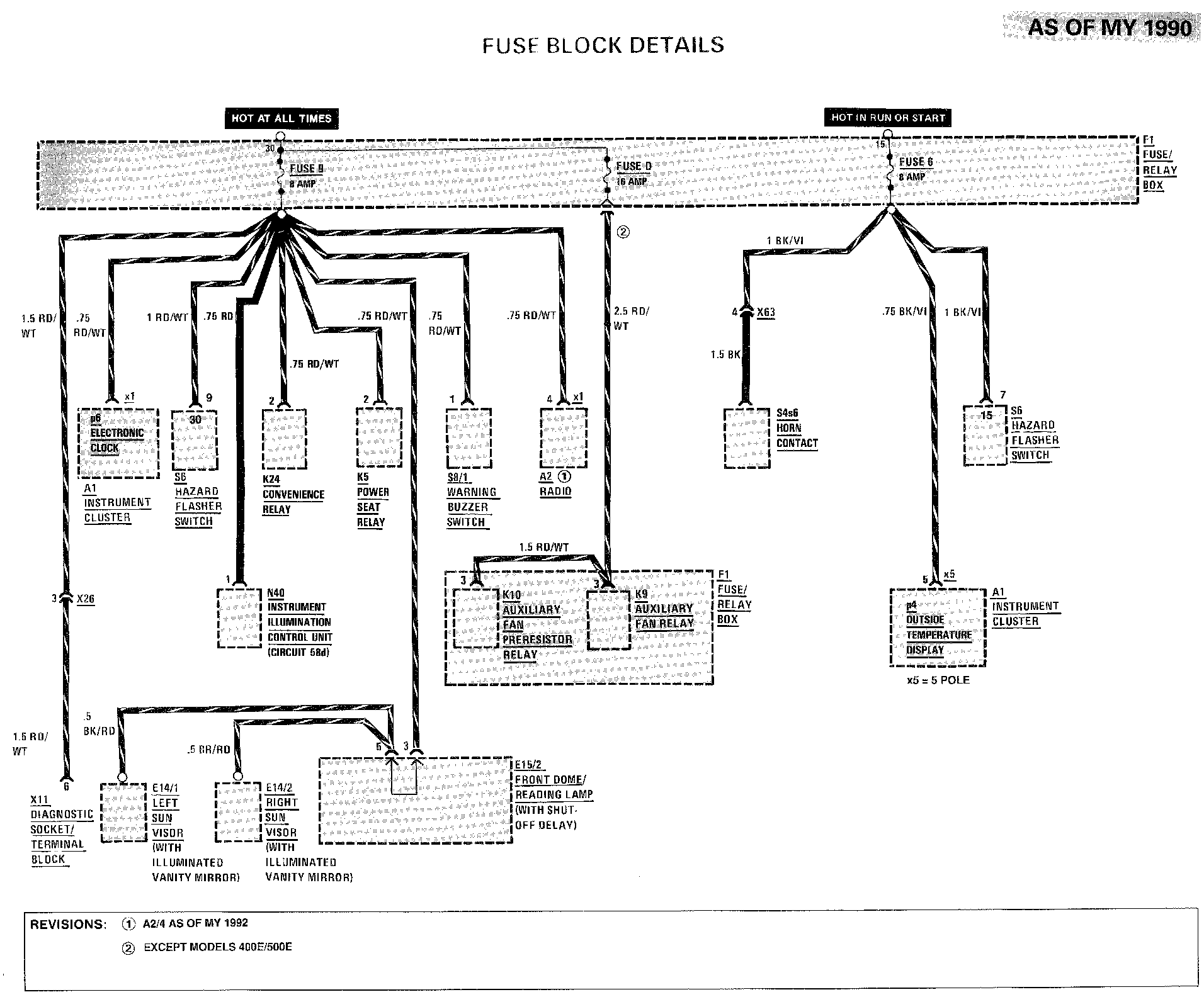

Fuse Block Details:

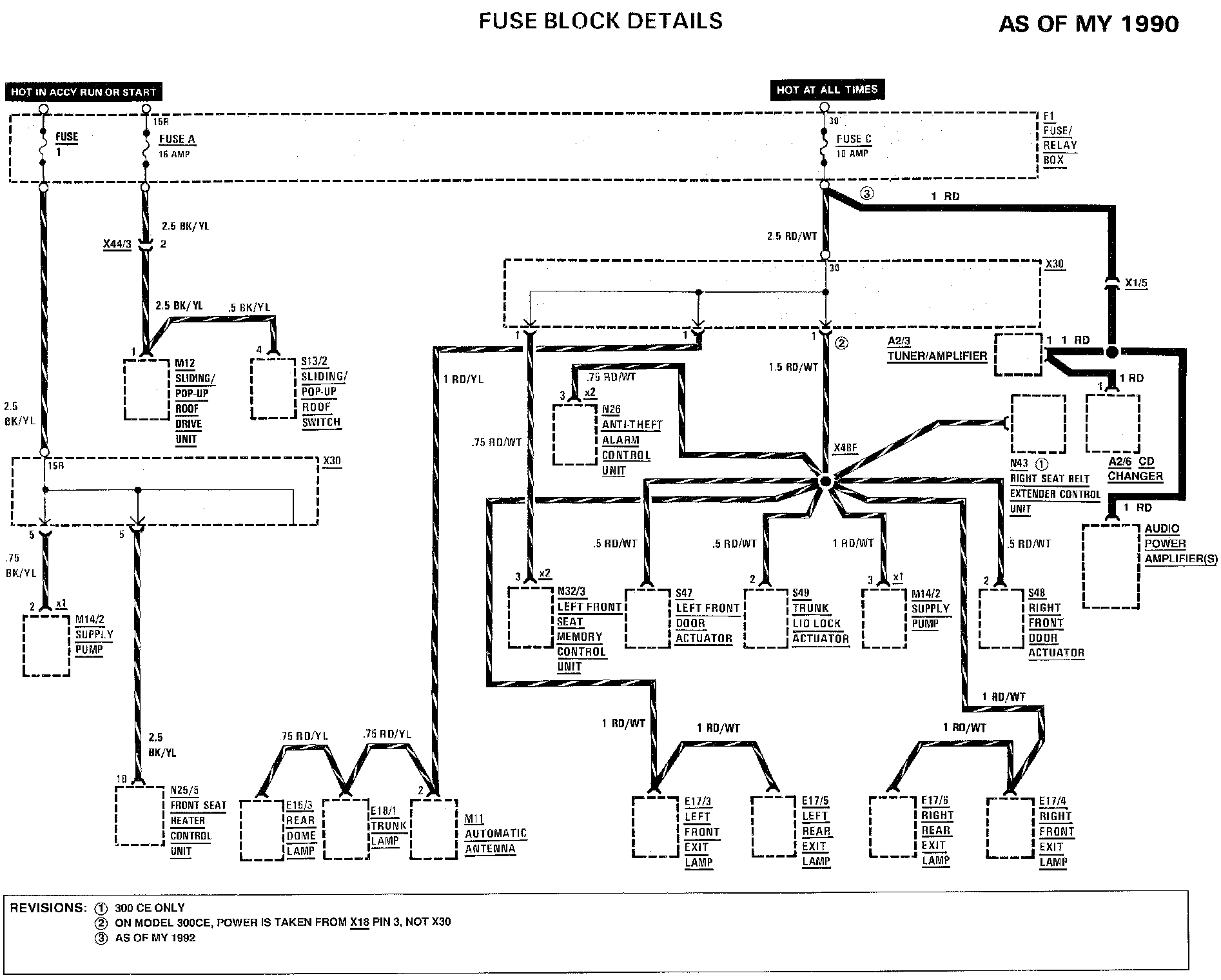

Fuse Block Details:

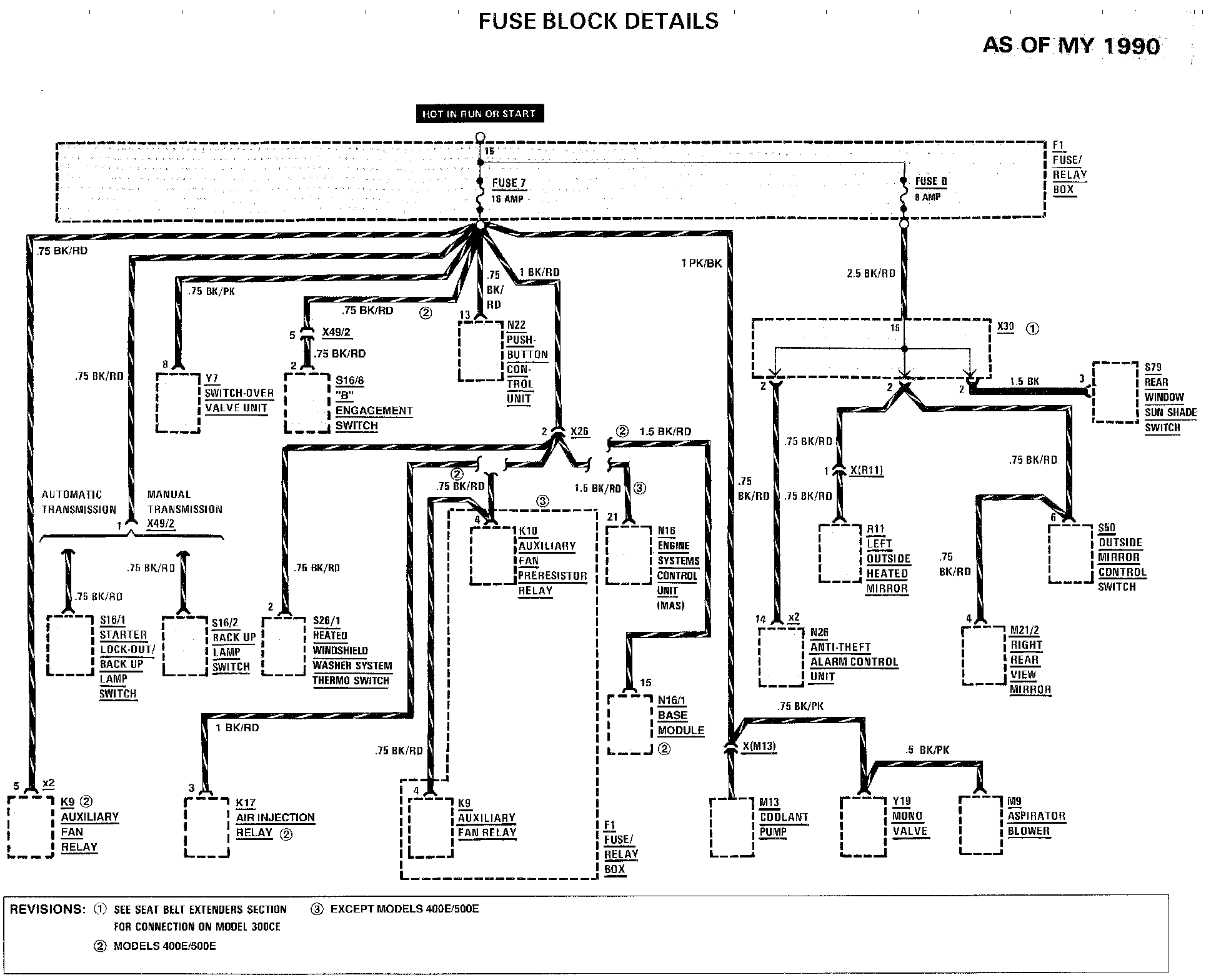

Fuse Block Details:
Fuse Block Details:
Fuse Block Details:
