Connecting Rod Bearing Cap Torque

Connecting Rod Bolts

Initial tightening torque 30 Nm
Angle of rotation torque 90 - 100°

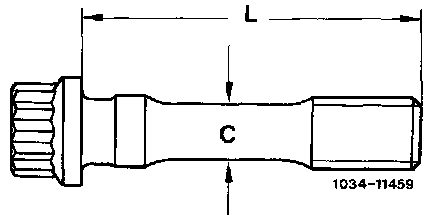

Rod Bolt Stretch:

Thread M9x1 mm
Stretch shaft when new 7.4 - 0.1 mm
Minimum stretch shaft (C) 7.1 mm
Length (L) when new 52 - 0.3 mm
