Ignition Switch: Locations

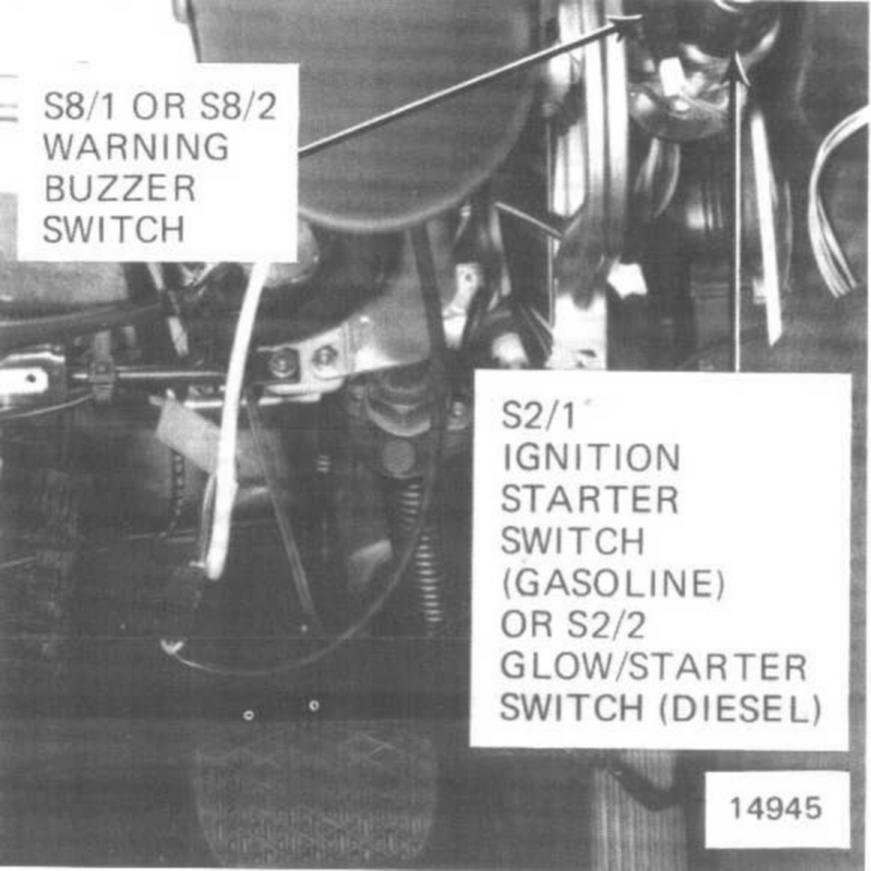

Component Location





Component ID S2/1
Component Name Ignition/starter switch
Location Left side of dashboard, right of steering column
