Vehicle Speed Sensor: Locations

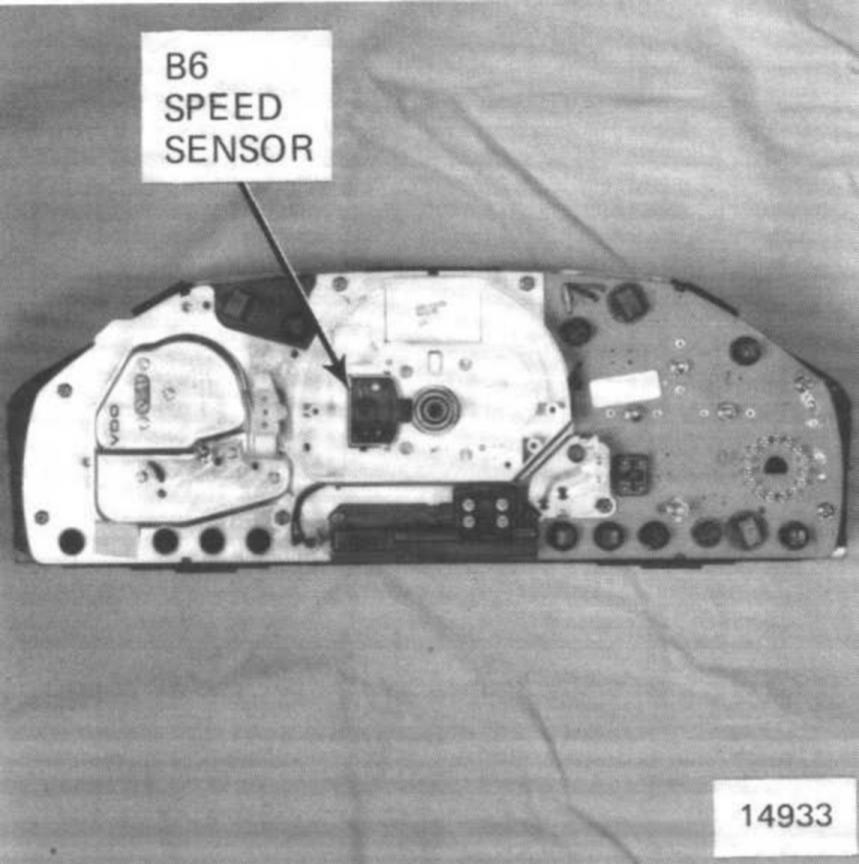

Component Location

Component ID B6
Component Name Hall-effect speed sensor
Location Rear of instrument cluster, behind speedometer
