Crankshaft Position Sensor: Service and Repair

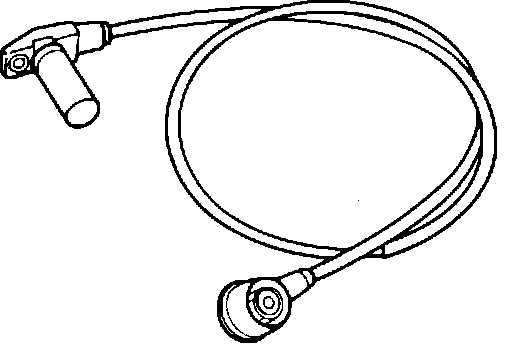

Fig. 33 Crankshaft Position Sensor:

Fig. 55 EZL Control Unit:

1. With the ignition "OFF" detach the crankshaft position sensor from the EZL control unit.

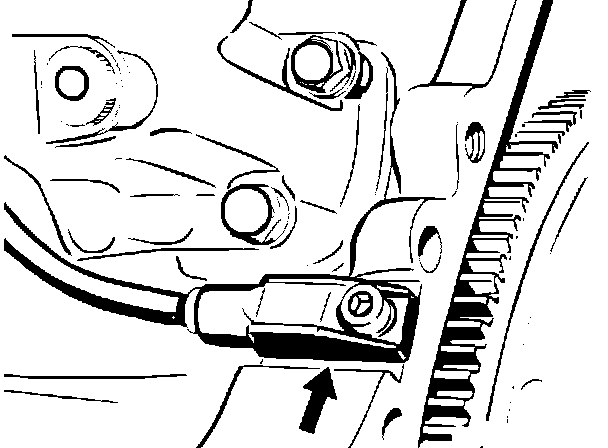

Fig. 32 Crankshaft Position Sensor Location:

2. Remove the sensor hold-down bolt.
3. Carefully lift out the sensor and cable. Take of note of proper cable routing for reinstallation.
4. Reinstall in reverse manner.
