Headlamp Switch: Service and Repair

Exterior Lighting Switch:

Preceding work:
Remove cover below instrument panel.

- Ground cable at battery - disconnect, connect.

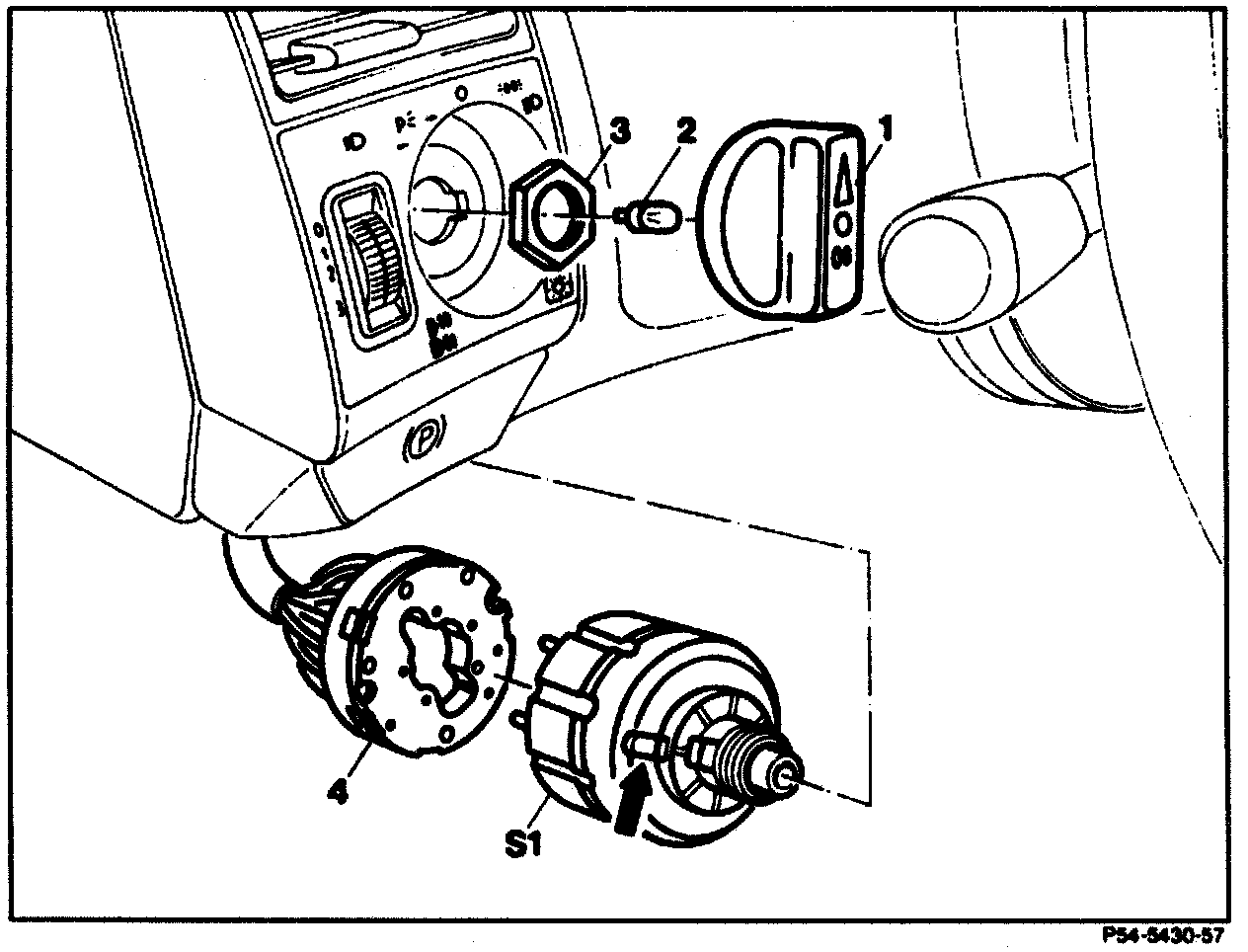

- Exterior lamp switch control button (1) - pull off, fit on.
- Bulb (2) - withdraw, insert.
- Nut (3) - unscrew, screw on.
- Exterior lamp switch (S1) - turn to the left and take out to the rear, insert from behind and turn to the right

NOTE: Ensure the retaining lugs (arrow) on the exterior lamp switch (S1) are correctly located.

- Electrical connection (4) - pull off, plug in.
