Heater Core Temperature Sensor / Switch: Locations

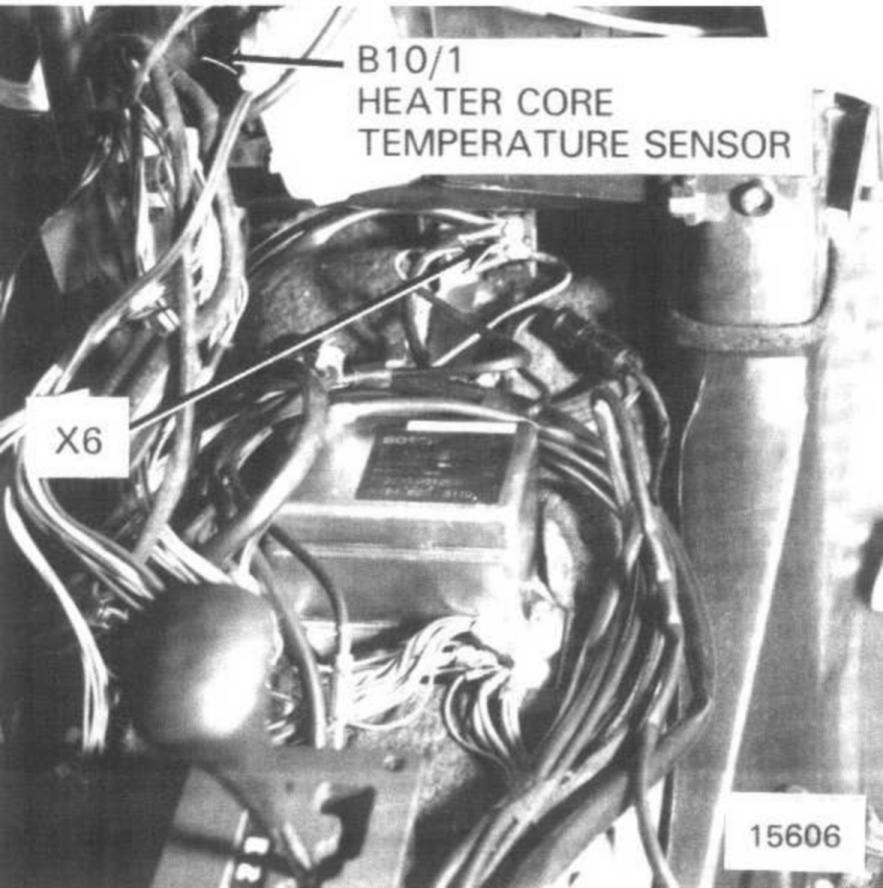

Component Location





Component ID B10/1
Component Name Heater core temperature sensor
Location Center of dashboard, below radio
