Air Door Position Sensor / Switch: Specifications

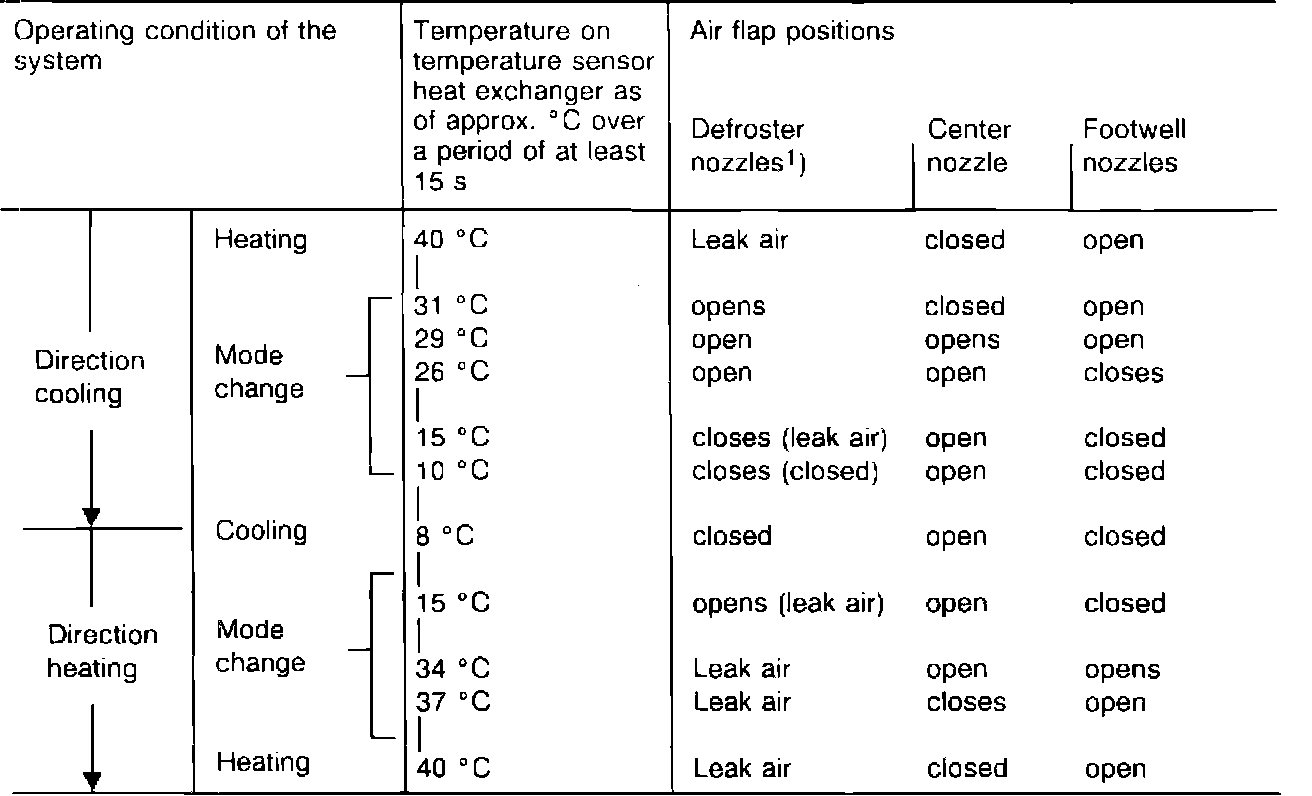

Air Flow Distribution Chart:

FLAP POSITION/TEMPERATURE RELATIONSHIP

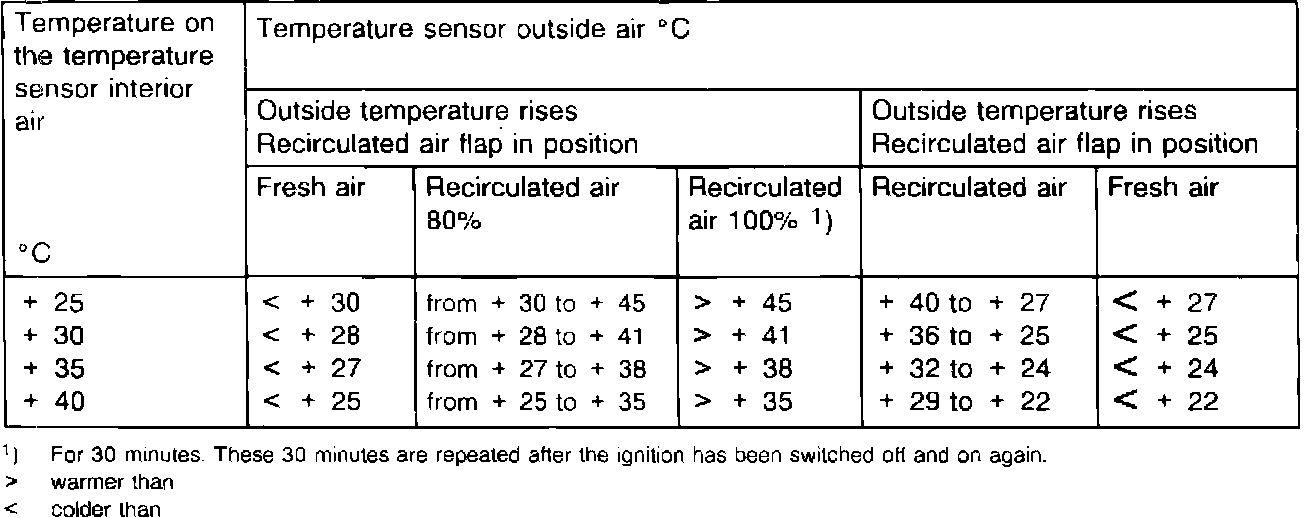

Recirculated Air Flap Control:

RECIRCULATED AIR/TEMPERATURE RELATIONSHIP
