Federal Vehicles


2-pole Coolant Temperature Sensor

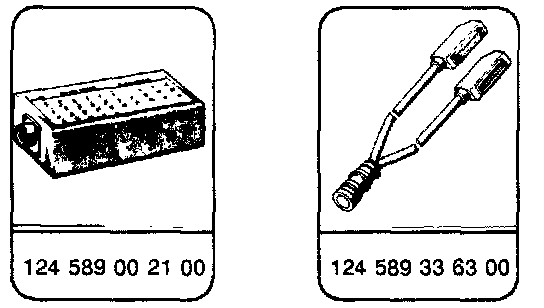

Special Tools:





Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23

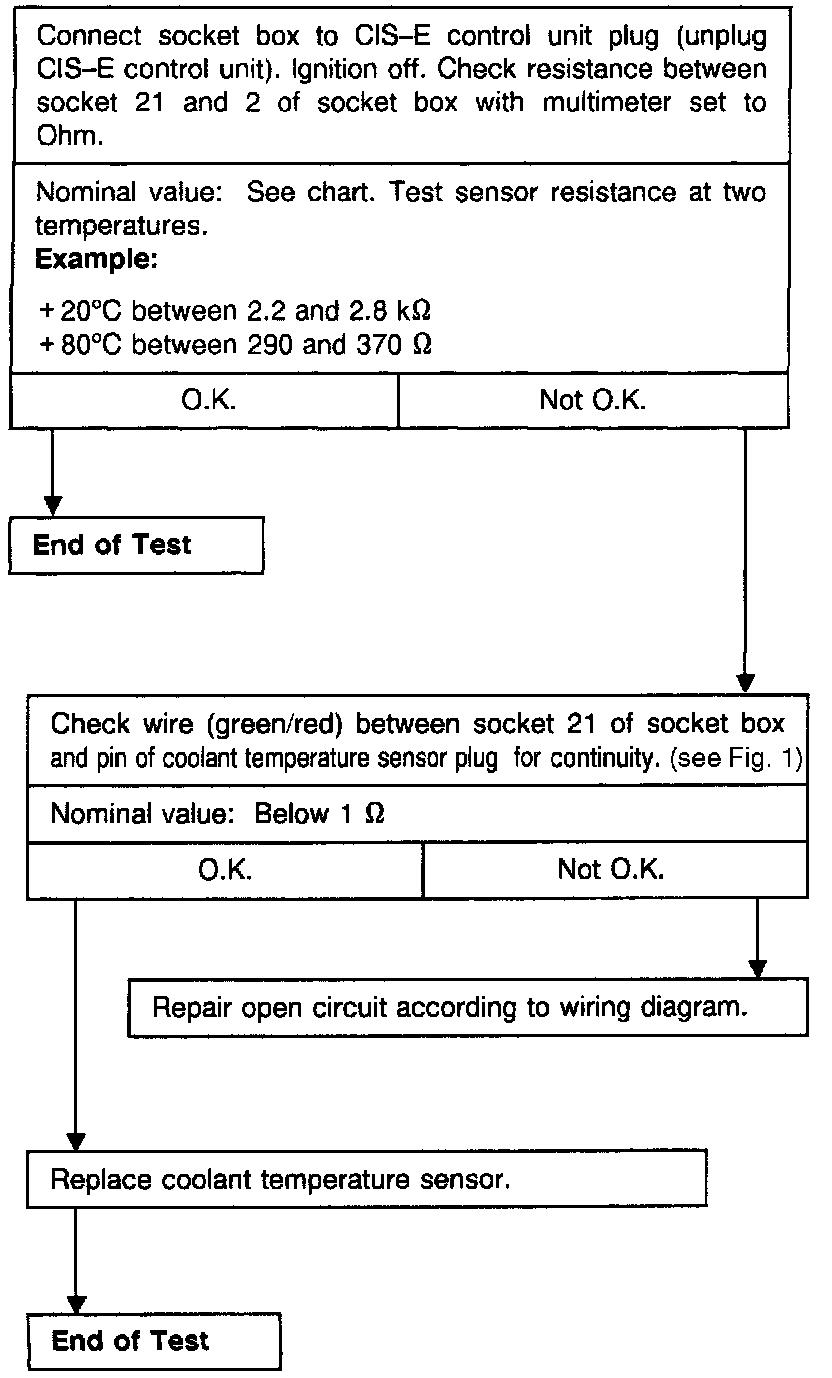

Test Procedure:

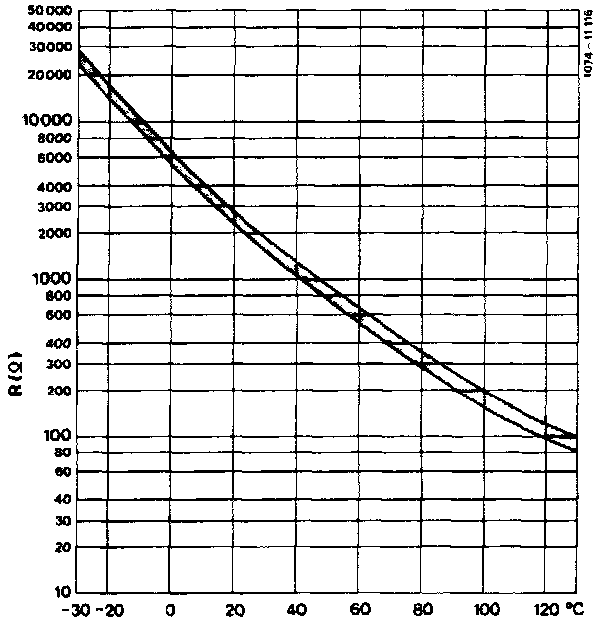

Resistance/Temperature Chart:

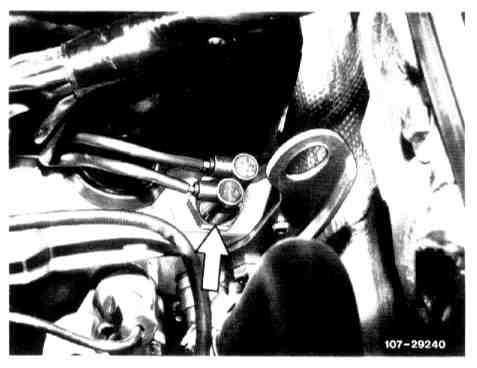

Fig. 1:
