300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cooling System
>>
Engine - Coolant Temperature Sensor/Switch
>>
Testing and Inspection
>>
California Vehicles
California Vehicles

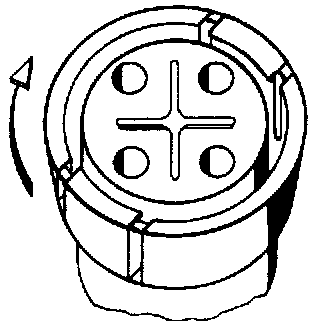

4-pole Coolant Temperature Sensor

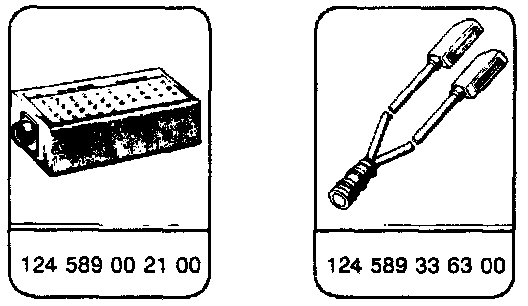

Special Tools:
Equipment
-
Digital multimeter -- SUN DMM-5, Fluke model 23

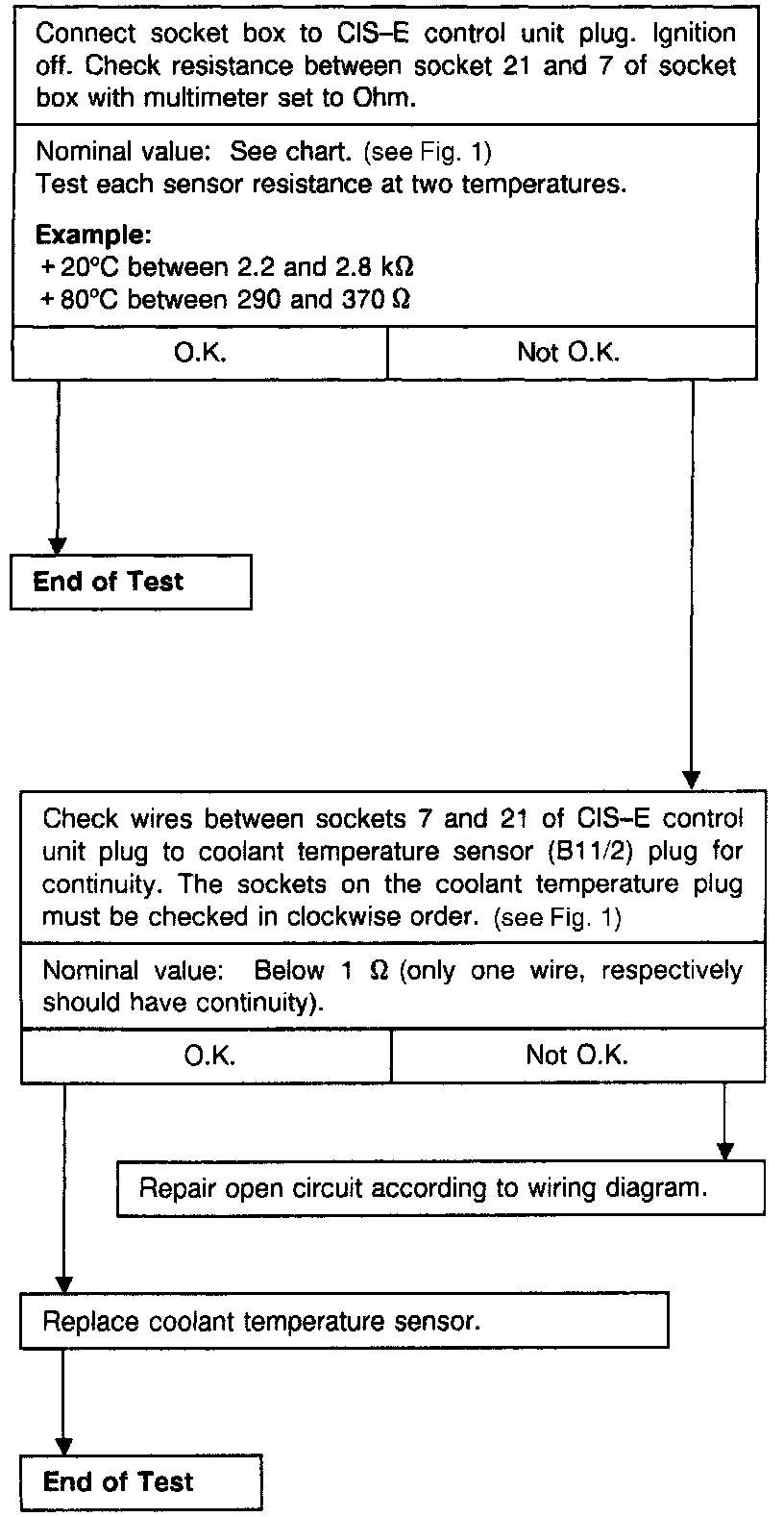

Test Procedure:

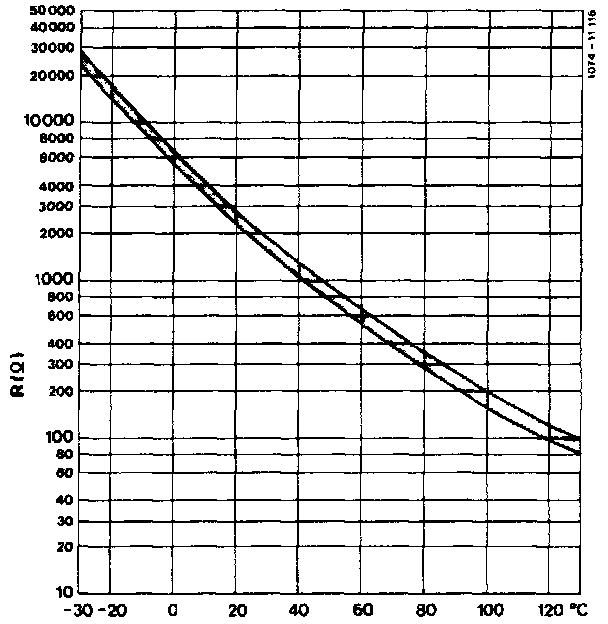

Fig. 1:
Fig. 1:
