Wheel Speed Sensor: Locations

Component Location

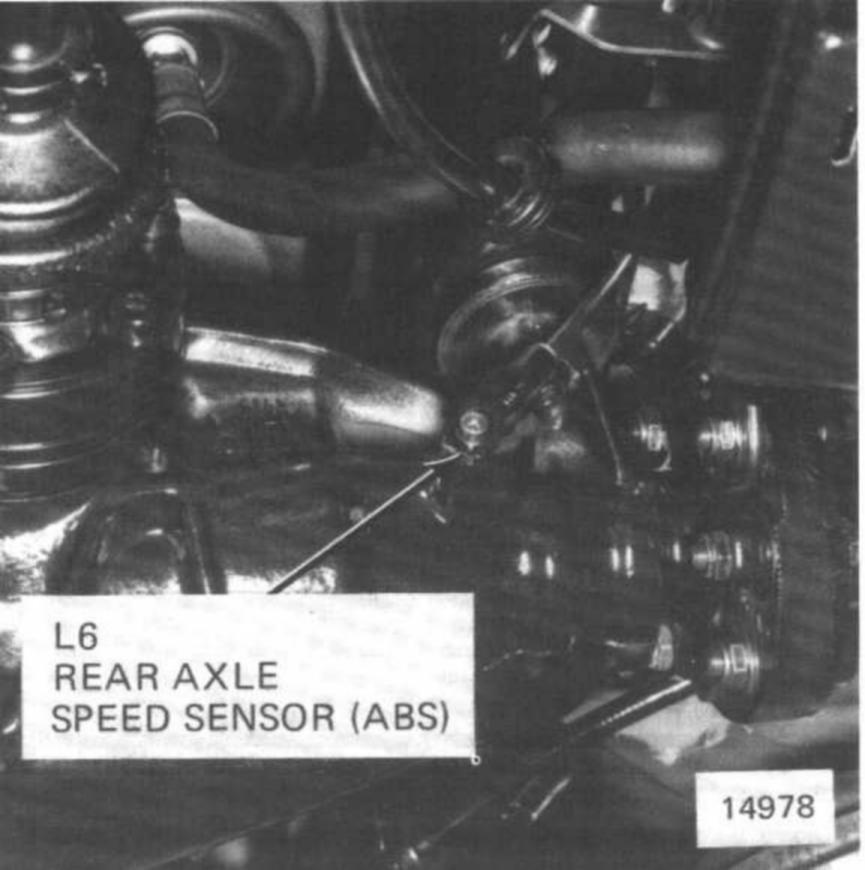

Component ID L6
Component Name Speed sensor, rear axle
Location Front of rear differential

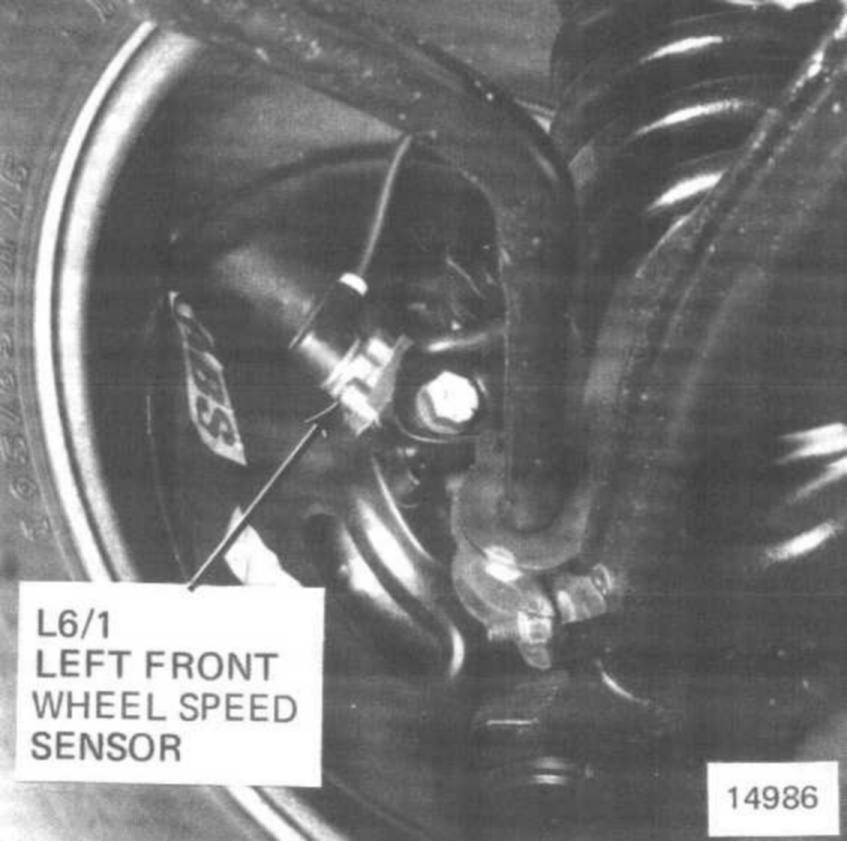

Component ID L6/1
Component Name Speed sensor, left front wheel
Location Left front steering knuckle


Component ID L6/2
Component Name Speed sensor, right front wheel
Location Right front steering knuckle
