AIr Bag (AB) and Belt Tensioner (ETR)
>>
ETP - Electrical Test Program
>>
Testing With No DTCs Stored
Testing With No DTCs Stored

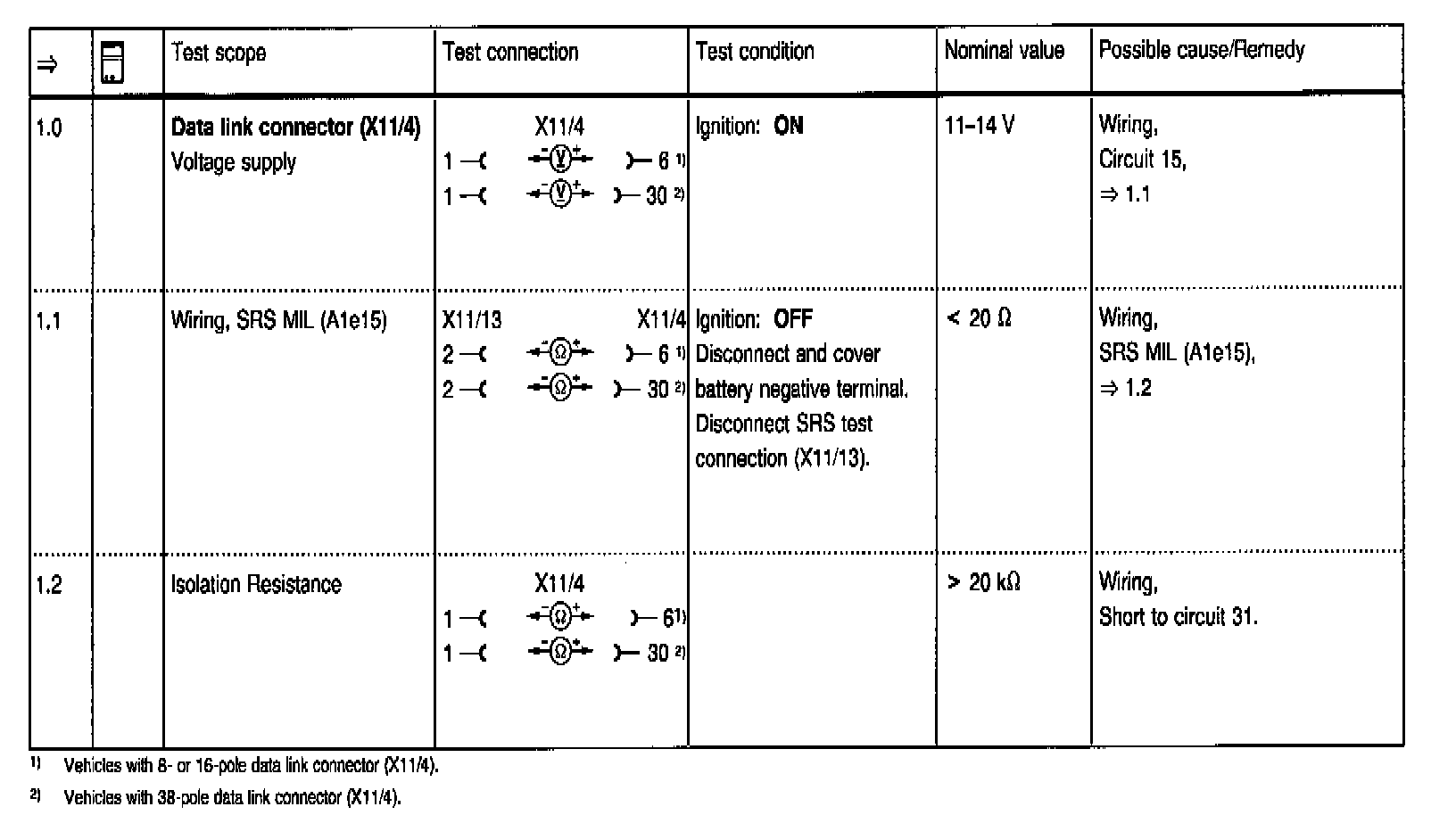

Test Steps 1.0, 1.1 and 1.2:

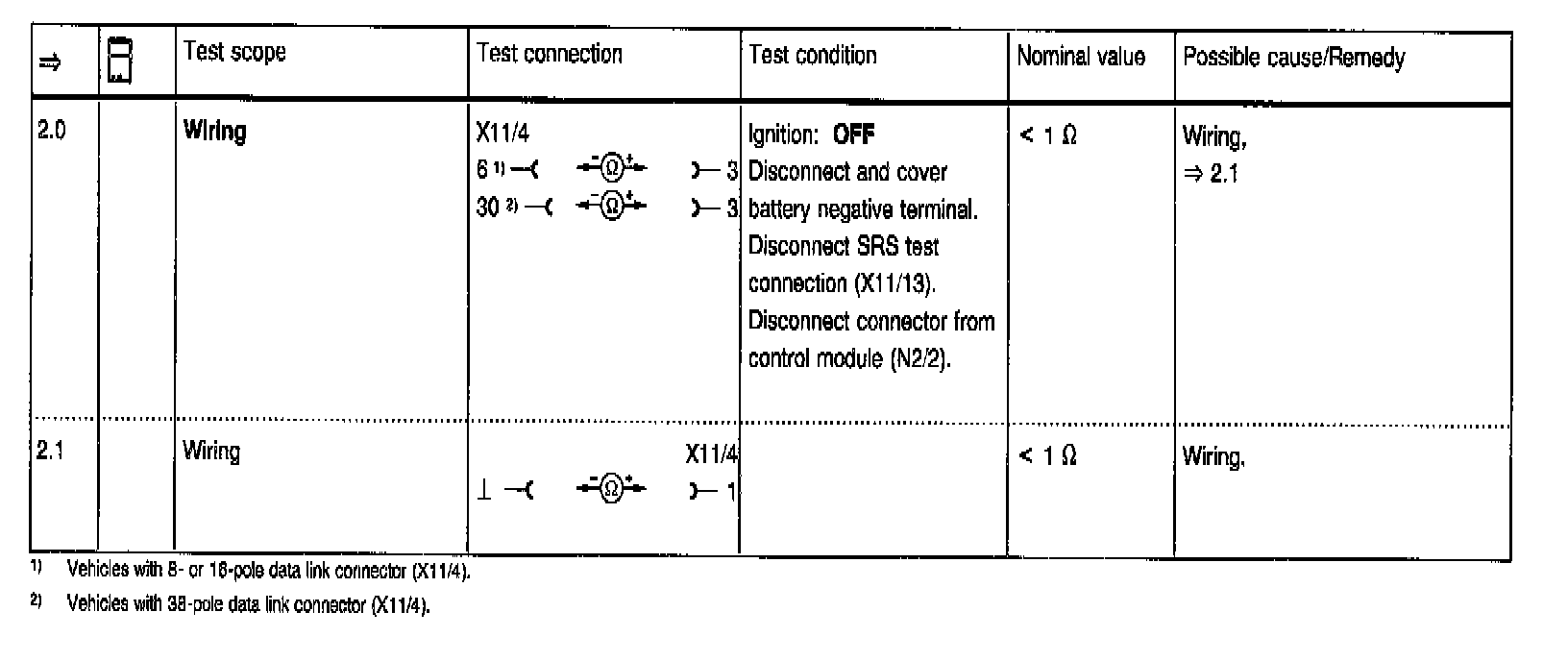

Test Steps 2.0 and 2.1:
