Preparation For Test

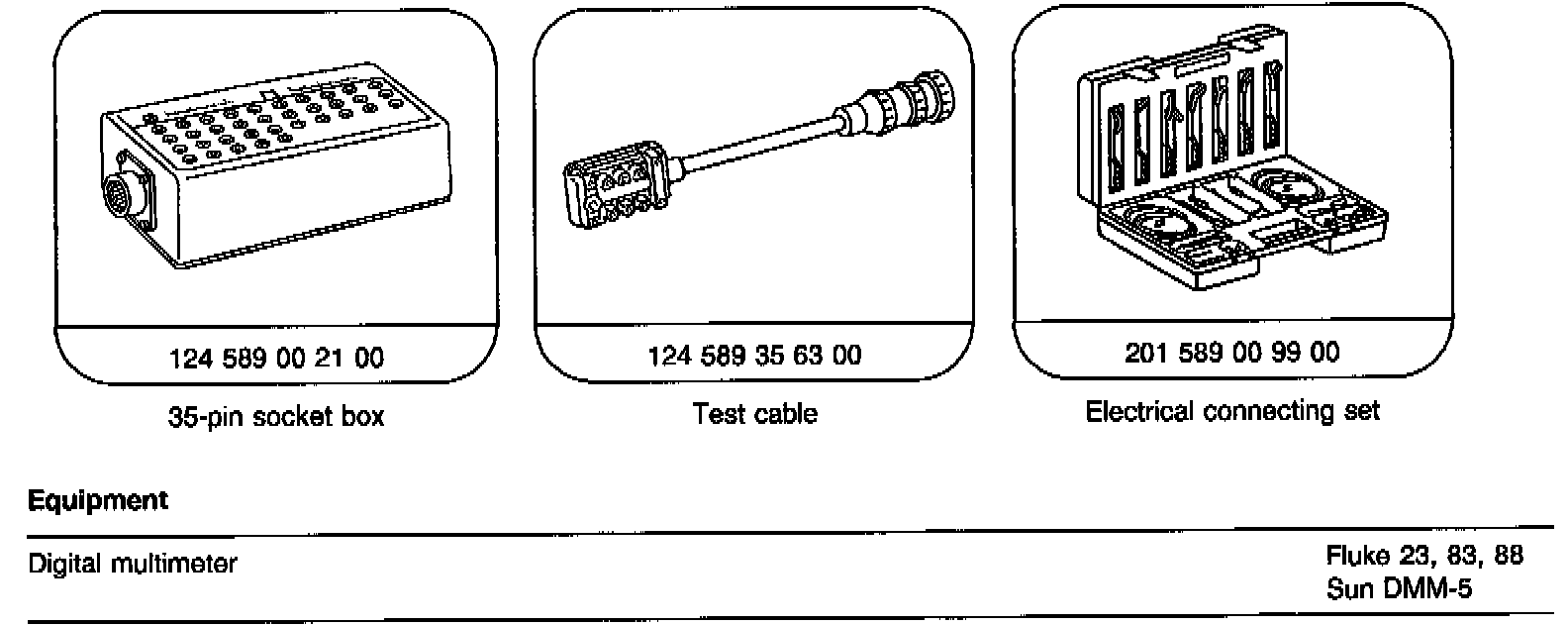

Special Tools:

Preliminary work: Perform Function Test. Function Test

WARNING: Before disconnecting the SRS test connection (X11/13 or X29/9), disconnect and cover the battery negative terminal.

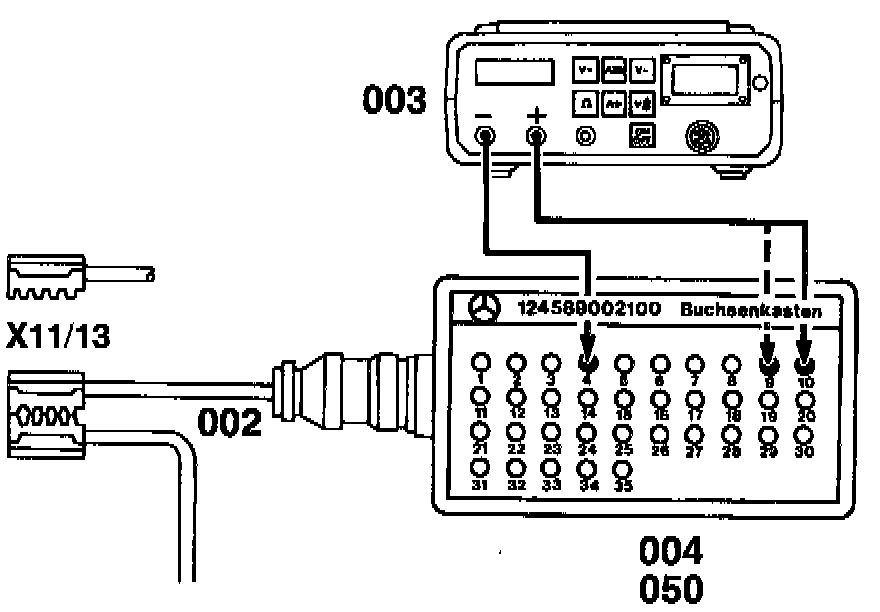

Connection Diagram - DMM And Socket Box Tester:

002 Test cable 124 589 35 63 00
003 Digital multimeter
004 Socket box
050 Socket box
X11/13 SRS test connection (10-pole)
